TITLE:
PART IDENTIFIER:
SPECIFICATION CONTROL DRAWING
SHIFT
(NEG)
-.003
-.004
-.005
-.006
-.007
DB VALUE
1, 2, 3, 4, 5, 6, 7, 8
1, 2, 3, 4, 5, 6
1, 2, 3, 4, 5, 6, 8
3, 4, 6
2, 3, 4, 5, 6
DESCRIPTION:
TEMPERATURE VARIABLE CHIP ATTENUATOR WITH HIGH RELIABILITY TESTING.
NOTE:
SINGLE LOT AND DATE CODE AVAILABLE UPON REQUEST.
ASSEMBLY DWG:
N/A
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
IMPEDANCE: 50 OHMS NOMINAL.
1.1.2
OPERATING FREQUENCY RANGE: DC - 12.4GHZ.
1.1.3
ATTENUATION VALUES AVAILABLE: SEE TABLE ABOVE.
1.1.4
ATTENUATION ACCURACY AT 25°C:
±0.5DB
@ 1 GHZ.
1.1.5
VSWR: 1.30:1 MAX. @ 1GHZ.
1.1.6
INPUT POWER: 200 MILLIWATTS CW.
1.1.6.1 FULL RATED POWER TO 125°C, DERATED LINEARLY TO 0 WATTS AT 150°C.
1.1.7
TEMPERATURE COEFFICIENT OVER OPERATING TEMPERATURE RANGE:
SEE TABLE ABOVE, TEMPERATURE COEFFICIENT TOLERANCE: ±0.001 DB/DB/°C.
1.2
MECHANICAL:
1.2.1

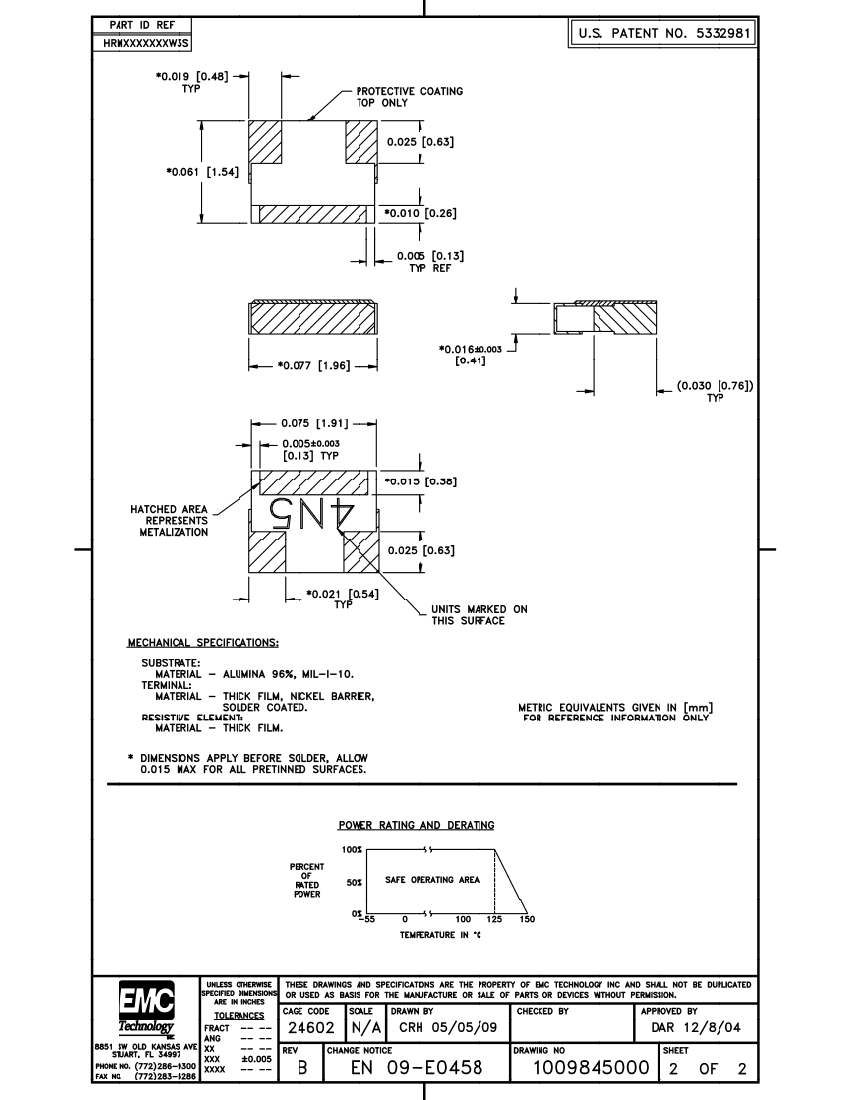

OUTLINE DWG: SEE SHEET 2.
1.2.2
WORKMANSHIP: PER MIL-PRF-55342.
1.3
ENVIRONMENTAL:
1.3.1
OPERATING TEMPERATURE RANGE: -55°C TO +150°C
UNIT MARKING:
DB VALUE (X), DIRECTION OF SHIFT (N) AND TCA SHIFT (X).
LEGIBILITY AND PERMANENCY PER MIL-STD-130.
2.0
3.0
QUALITY ASSURANCE:
3.1
VERIFY 100% VISUAL PRE-CAP INSPECTION PERFORMED. PER TP-8965.
3.2
PERFORM GROUP A, B AND/OR C TESTING AS INDICATED BY THE PART NUMBER PER TP-8965.
3.3
TEST DATA REQUIREMENTS:
3.3.1
TEST DATA REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.
3.3.2
DATA RETENTION - 24 MONTHS.
3.3.3
TEST SAMPLES REQUIRED FOR CUSTOMER - SEE PARAGRAPH 5.0 OF TP-8965.
PACKAGING:
STANDARD PACK PER 755W002. (SERIALIZED WAFFLE PACK)
4.0
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE.
STUART, FL 34997
CAGE CODE # 24602
CHANGE NOTICE
EN 09-E0458
DWG #
REV LVL
SHEET
1009845000
B
1
OF
2
