74VHC4051, 8-Channel Analog Multiplexer 74VHC4052, Dual 4-Channel Analog Multiplexer
74VHC4053, Triple 2-Channel Analog Multiplexer
May 2007
74VHC4051, 8-Channel Analog Multiplexer
74VHC4052, Dual 4-Channel Analog Multiplexer
74VHC4053, Triple 2-Channel Analog Multiplexer
Features
■
Wide analog input voltage range: ±6V
■
Low “ON” resistance: 50 Typ. (V
CC
–V
EE
=
4.5V)
■
30 Typ. (V
CC
–V
EE
=
9V)
■
Logic level translation to enable 5V logic with ±5V
tm
General Description
These multiplexers are digitally controlled analog
switches implemented in advanced silicon-gate CMOS
technology. These switches have low “ON” resistance
and low “OFF” leakages. They are bidirectional switches,
thus any analog input may be used as an output and
vice-versa. Also these switches contain linearization cir-
cuitry which lowers the “ON” resistance and increases
switch linearity. These devices allow control of up to ±6V
(peak) analog signals with digital control signals of 0 to
6V. Three supply pins are provided for V
CC
, ground, and
V
EE
. This enables the connection of 0–5V logic signals
when V
CC
=
5V and an analog input range of ±5V when
V
EE
=
5V. All three devices also have an inhibit control
which when high will disable all switches to their off
state. All analog inputs and outputs and digital inputs are
protected from electrostatic damage by diodes to V
CC
and ground.

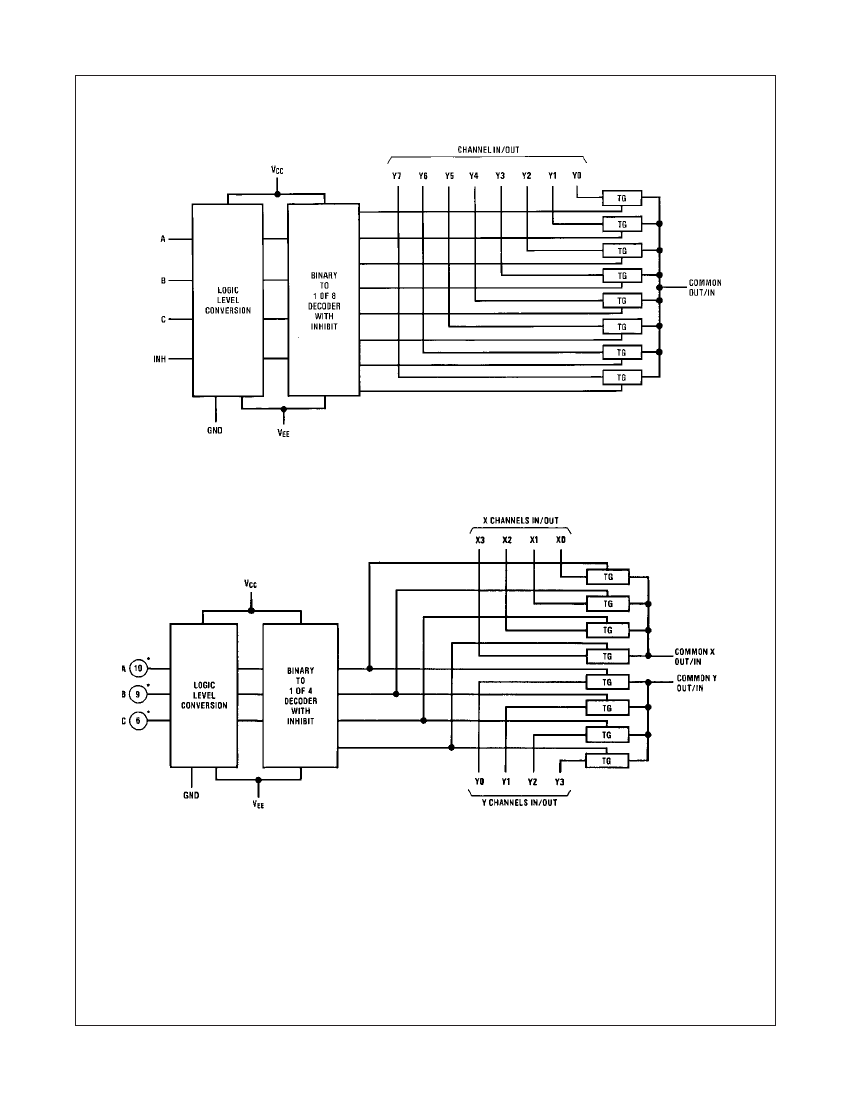

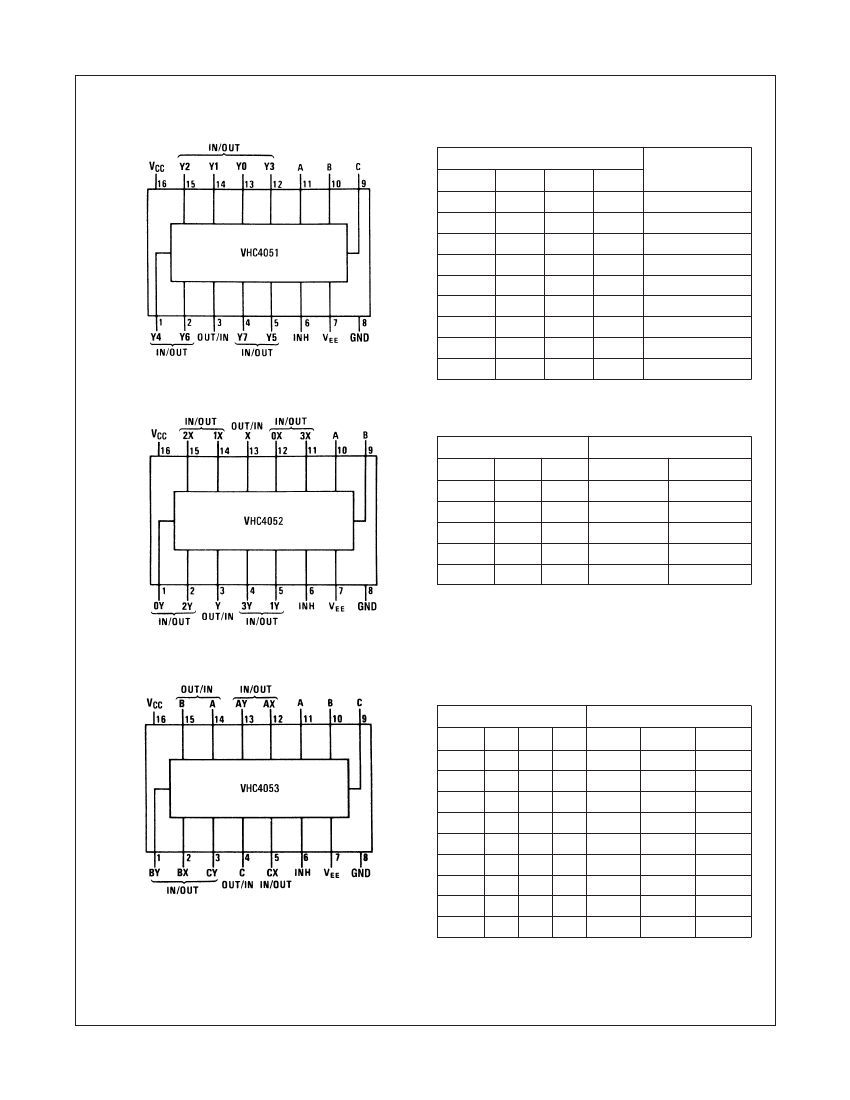

VHC4051: This device connects together the outputs of
8 switches, thus achieving an 8 channel Multiplexer. The
binary code placed on the A, B, and C select lines
determines which one of the eight switches is “ON”, and
connects one of the eight inputs to the common output.
VHC4052: This device connects together the outputs of
4 switches in two sets, thus achieving a pair of 4-channel
multiplexers. The binary code placed on the A, and B
select lines determine which switch in each 4 channel
section is “ON”, connecting one of the four inputs in each
section to its common output. This enables the imple-
mentation of a 4-channel differential multiplexer.
VHC4053: This device contains 6 switches whose out-
puts are connected together in pairs, thus implementing
a triple 2 channel multiplexer, or the equivalent of 3
single-pole-double throw configurations. Each of the A,
B, or C select lines independently controls one pair of
switches, selecting one of the two switches to be “ON”.
analog signals
■
Low quiescent current: 80µA maximum
■
Matched switch characteristic
■
Pin and function compatible with the
74HC4051/ 4052/4053
©1994 Fairchild Semiconductor Corporation
74VHC4051, 74VHC4052, 74VHC4053 Rev. 1.3
www.fairchildsemi.com
74VHC4051, 8-Channel Analog Multiplexer 74VHC4052, Dual 4-Channel Analog Multiplexer
74VHC4053, Triple 2-Channel Analog Multiplexer
Ordering Information
Order Number
74VHC4051M
74VHC4051WM
74VHC4051MTC
74VHC4051N
74VHC4052M
74VHC4052WM
74VHC4052MTC
74VHC4053M
74VHC4053WM
74VHC4053MTC
Package
Number
M16A
M16B
MTC16
N16E
M16A
M16B
MTC16
M16A
M16B
MTC16
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300” Wide
16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
4.4mm Wide
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300” Wide
16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
4.4mm Wide
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300” Wide
16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
4.4mm Wide
Surface mount packages are also available on Tape and Reel. Specify by appending the suffix letter “X” to the
ordering number.
©1994 Fairchild Semiconductor Corporation
74VHC4051, 74VHC4052, 74VHC4053 Rev. 1.3
www.fairchildsemi.com
2
