REVISION J
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
-NXX OPTION (END 2)
(ONLY AVAILABLE WITH -D, -DL, -DR, -DS)
-NUS: NOTCH UP, STRAIGHT
(PIN 1 TO N-1) (SEE FIG 2)
-NDS: NOTCH DOWN, STRAIGHT
(PIN 1 TO 2) (SEE FIG 4)
-NUX: NOTCH UP, CROSSED
(PIN 1 TO N) (SEE FIG 3)
-NDX: NOTCH DOWN, CROSSED
(PIN 1 TO 1) (SEE FIG 5)
END OPTION
-S: SINGLE ENDED (SEE FIG 1)
-D: DOUBLE ENDED (SEE FIG'S 2, 3, 4, 5, 6, & 7)
-SR: SINGLE ENDED WITH RETENTION LATCH
(SEE FIG 6)
-DR: DOUBLE ENDED WITH RETENTION LATCH
(SEE FIG 7)
**-SS: SINGLE ENDED WITH SCREW DOWN
(SEE SHEET 4 FIG 8)
ONLY AVAILABLE IN -10, -20, -30,
& -40 POSITIONS
**-DS: DOUBLE ENDED WITH SCREW DOWN
(SEE SHEET 4 FIG 9)
ONLY AVAILABLE IN -10, -20, -30,
& -40 POSITIONS
DO NOT
SCALE FROM
THIS PRINT
TEFLON CABLE OPTION
-T: TEFLON (AVAILABLE WITH

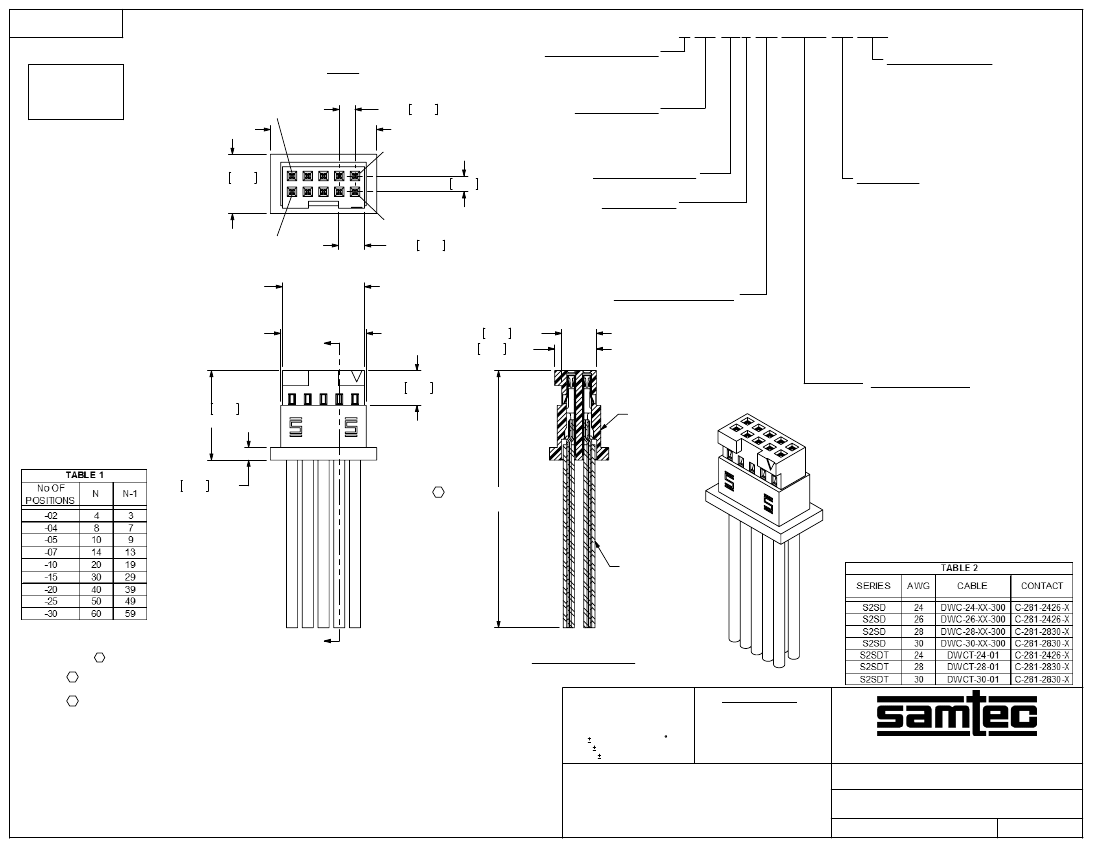

FIG 1
24, 28 & 30AWG ONLY)
S2SDX-05-24-X-XX.XX-S SHOWN
(LEAVE BLANK FOR STANDARD
PVC INSULATION)
No OF POSITONS
2.00 .079 REF
-02, -04, -05, -07, -10, -15, -20,
N (SEE TABLE 1)
(No OF POS X 2.00[.079])
-25, & -30 (PER ROW)
+ 3.50[.138] REF
AVAILABLE AS STANDARD
-05 THRU -50 AVAILABLE AS ASO
02
7.52 .296
REF
01
N-1 (SEE TABLE 1)
3.32 .131 REF
2.00 .079 REF
WIRE GAUGE (AWG)
-24, -26, -28, & 30
COLOR CODE:
(LEAVE BLANK FOR ALL BLACK WIRE)
-C: COLOR CODED WIRE, SEE TABLE 3,
SHEET 3 FOR COLOR SEQUENCE
(AVAILABLE WITH 24 AWG ONLY &
NOT AVAILABLE WITH TEFLON)
PLATING SPECIFICATION
-L: LIGHT SELECTIVE
-S: SELECTIVE
"A"
4.39 .173 REF
5.29 .208 REF
4.42 .174 REF
11.38 .448
REF
ISD2-XX-D
(No OF POS X 2.00[.079])
+ .43[.017] REF
(No OF POS X 2.00[.079])
+ .86[.034] REF
ASSEMBLED LENGTH
SPECIFY IN INCHES
SINGLE ENDED: 02.75 INCH MINIMUM
DOUBLE ENDED: 02.75 INCH MINIMUM
** = NOT RELEASED FOR PRODUCTION
1.60 .063 REF
C
ASSEMBLED LENGTH
(SEE NOTE 8)
DWC-XX-XX-300
NOTES:
"A"
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PULLOUT FORCE: 11.1N [2.5LBS].
C
3. CONTACTS MUST BE INSERTED UNTIL RETENTION
FEATURES LOCK INTO PLACE.
C
4. ALL FINISHED GOODS ARE TO BE ELECTRICALLY
TESTED INCLUDING HI-POT TEST AT 1000 VOLTS DC.
AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH
(1) LABEL-ET.
5. TINNED COPPER WIRE IS RoHS COMPLIANT.
6. PARTS TO BE LAYER PACKAGED.
7. END OF DISCRETE WIRE MUST FALL WITHIN THIS RANGE AFTER CRIMP.
8. FOR LENGTHS OF 12.00 INCHES AND LESS, TOLERANCE TO BE ± 3.18[.125],
FOR LENGTHS GREATER THAN 12.00 INCHES, TOLERANCE TO BE ± 2%
9. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING AND ITS REQUIREMENTS.
10. 20.0N[4.5 LB] MIN WIRE CRIMP STRENGTH FOR 24-28 AWG AND
13.3N[3.0 LB] MIN WIRE CRIMP STRENGTH FOR 30AWG.
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
MATERIAL:
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: BeCU
CABLE INSULATION: SEE CALLOUT
WIRE: TINNED COPPER
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
J. BORGELT 2/20/09
SHEET
1
OF
4
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
REVISION J

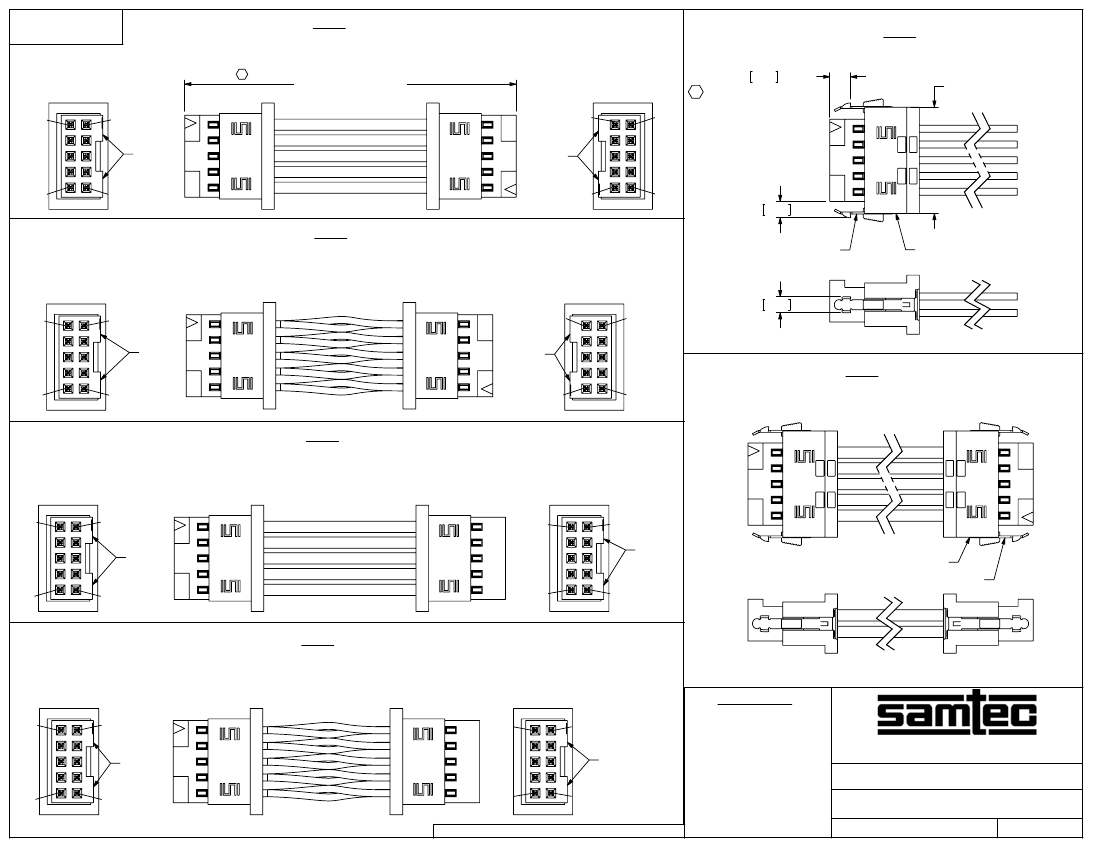

(S2SDX-05-28-X-XX.XX-D-NUS SHOWN)
(SAME AS FIG. 1 EXCEPT AS SHOWN)
(PIN 01 TO N-1)
C
FIG 2
(S2SDX-05-28-X-XX.XX-SR SHOWN)
(SAME AS FIG. 1 EXCEPT AS SHOWN)
2.64 .104 (TYP)
C
N-1
N
(No OF POS X 2.00[.079])
+ 3.50[.138] REF
FIG 6
ASSEMBLED LENGTH
(SEE NOTE 8)
02
01
NOTCH
UP
NOTCH
UP
N
N-1
01
02
2.07 .081 (TYP)
(S2SDX-05-28-X-XX.XX-D-NUX SHOWN)
(SAME AS FIG. 1 EXCEPT AS SHOWN)
(PIN 01 TO N)
FIG 3
SUB-IM-LTC-07-01-N
ISD2-XX-D-R
02
01
NOTCH
UP
NOTCH
UP
N-1
N
2.03 .080 (TYP)
N
N-1
01
02
(S2SDX-05-28-X-XX.XX-DR-DUS SHOWN)
(SAME AS FIG. 6 EXCEPT AS SHOWN)
FIG 7
(S2SDX-05-28-X-XX.XX-D-NDS SHOWN)
(SAME AS FIG. 1 EXCEPT AS SHOWN)
(PIN 01 TO 02)
FIG 4
02
01
NOTCH
UP
02
01
NOTCH
DOWN
ISD2-XX-D-R
SUB-IM-LTC-07-01-N
N
N-1
N
N-1
(S2SDX-05-28-X-XX.XX-D-NDX SHOWN)
(SAME AS FIG. 1 EXCEPT AS SHOWN)
(PIN 01 TO 01)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 5
02
01
NOTCH
UP
02
01
NOTCH
DOWN
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
N
N-1
N
N-1
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
J. BORGELT 2/20/09
SHEET
2
OF
4
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
REVISION J

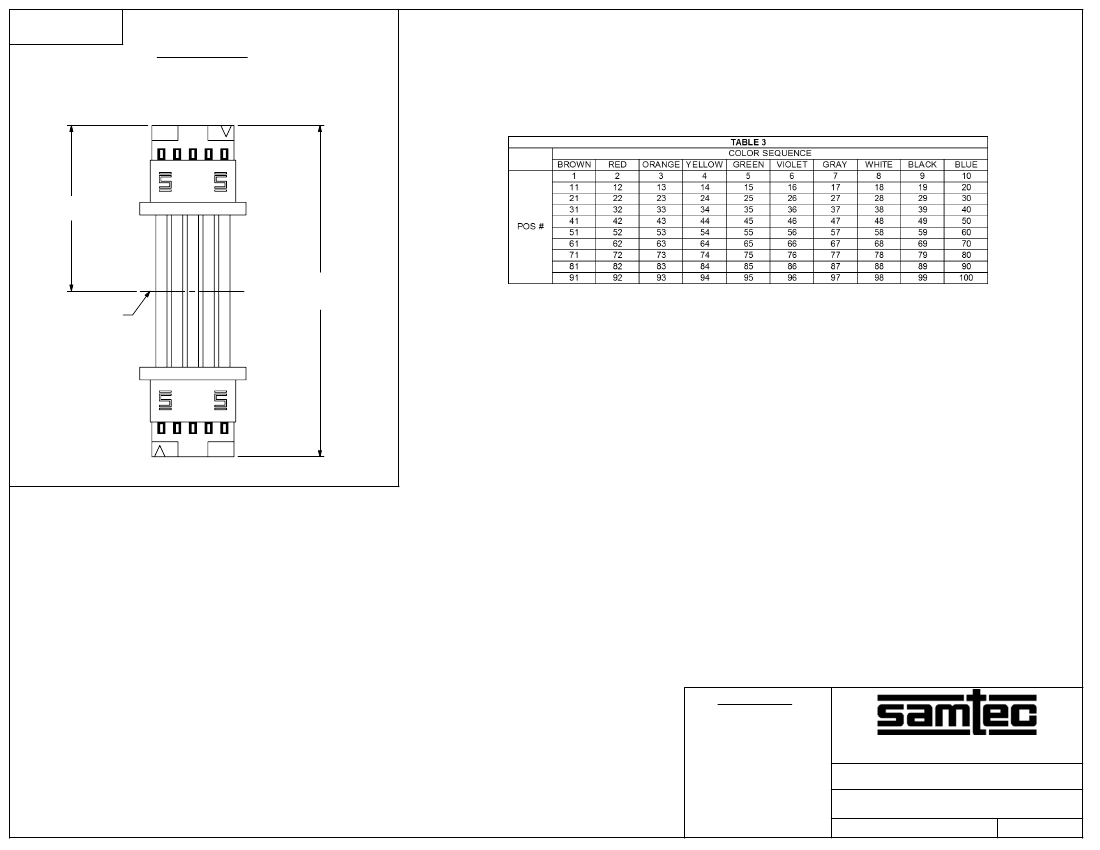

(APPLIES TO -S, & -SR END OPTIONS ONLY)
(TO BE BUILT DOUBLE-ENDED INITIALLY
FOR E-TEST AND THEN SEPERATED)
IN-PROCESS 1
ASSEMBLED LENGTH
(SEE NOTE 8)
CUT LINE
(ASSEMBLED LENGTH X 2)
+ 12.70[.500] ADDER
(SEE NOTE 8)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
DESCRIPTION:
DWG. NO.
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
BY:
J. BORGELT 2/20/09
SHEET
3
OF
4
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
REVISION J

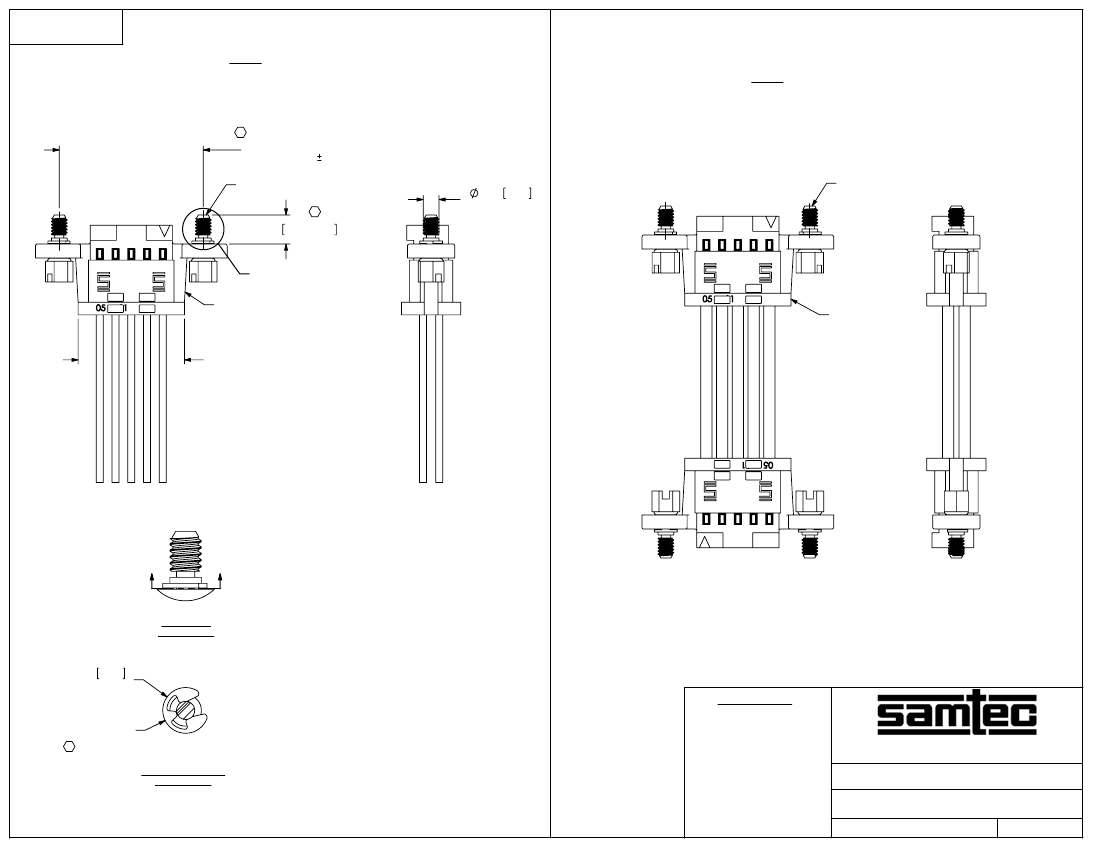

-SS: SINGLE ENDED WITH SCREW DOWN
(S2SDX-05-28-X-XX.XX-SS SHOWN)
(ONLY AVAILABLE IN -10, -20, -30 & -40 POSITIONS)
(SAME AS FIG 1, EXCEPT AS SHOWN)
NOT RELEASED FOR PRODUCTION
C
FIG 8
-DS: DOUBLE ENDED WITH SCREW DOWN
(S2SDX-05-28-X-XX.XX-DS-NUS SHOWN)
(ONLY AVAILABLE IN -10, -20, -30 & -40 POSITIONS)
(SAME AS FIG 8, EXCEPT AS SHOWN)
NOT RELEASED FOR PRODUCTION
FIG 9
(No OF POS X 2.00[.079])
+ 8.29[.326] .30[.012]
2.00 .079
REF
CPS-RR-M2-01-X
CPS-RR-M2-01-X
C
3.68±0.30 .145±.012
'B'
ISD2-05-D-X
ISD2-05-D-X
(No OF POS X 2.00[.079])
+ 3.50[.138] REF
"C"
"C"
DETAIL 'B'
SCALE 4 : 1
R1.45 .057
REF
F:\DWG\MISC\MKTG\S2SDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW
PROPRIETARY NOTE
ACCRT-01
C
SECTION "C"-"C"
SCALE 4 : 1
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2.00mm SOCKET DISCRETE CABLE ASSEMBLY
S2SDX-XX-XXX-XX-XX.XX-XX-XXX
SHEET
4
OF
4
BY:
J. BORGELT 2/20/09
