74FR244 Octal Buffer/Line Driver with 3-STATE Outputs
December 1990
Revised May 2001
74FR244
Octal Buffer/Line Driver with 3-STATE Outputs
General Description
The 74FR244 is a non-inverting octal buffer and line driver
designed to be employed as memory and address driver,
clock driver and bus-oriented transmitter/receiver.
Features
s
3-STATE outputs drive bus lines or buffer memory
address registers
s
Outputs sink 64 mA and source 15 mA
s
Guaranteed pin-to-pin skew
Ordering Code:
Order Number
74FR244SC
74FR244SJ
74FR244PC
Package Number
M20B
M20D
N20A
Package Description
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Pin Descriptions
Pin Names
OE
1
,–OE
2
I
0
–I
7
O
0
–O
7
Description
Output Enable Input (Active-LOW)
Inputs
Outputs
Truth Tables
Inputs
OE
1
L
L
H
Inputs
OE
2
L
L
H
H
=
HIGH Voltage Level
L
=
LOW Voltage Level
X
=
Immaterial
Z
=
High Impedance
Outputs
I
n
L
H
X
(Pins 12, 14, 16, 18)
L
H
Z
Outputs
I
n
L
H
X
(Pins 3, 5, 7, 9)
L
H
Z
© 2001 Fairchild Semiconductor Corporation
DS010900
www.fairchildsemi.com
74FR244
Absolute Maximum Ratings
(Note 1)
Storage Temperature
Ambient Temperature Under Bias
Junction Temperature Under Bias
V
CC
Pin Potential to Ground Pin
Input Voltage (Note 2)
Input Current (Note 2)
Voltage Applied to Output
in HIGH State (with V
CC
=
0V)
Standard Output
3-STATE Output
Current Applied to Output
in LOW State (Max)
ESD Last Passing Voltage (Min)
twice the rated I
OL
(mA)
4000V
−
65
°
C to
+
150
°
C
−
55
°
C to
+
125
°
C
−
55
°
C to
+
150
°
C
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
30 mA to
+
5.0 mA
Recommended Operating
Conditions
Free Air Ambient Temperature
Supply Voltage
0
°
C to
+
70
°
C
+
4.5V to
+
5.5V
−
0.5V to V
CC
−
0.5V to
+
5.5V
Note 1:
Absolute maximum ratings are values beyond which the device
may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.
Note 2:
Either voltage limit or current limit is sufficient to protect inputs.
DC Electrical Characteristics
Symbol
V
IH
V
IL
V
CD
V
OH
V
OL
I
IH
I
BVI
I
IL
V
ID
I
OD
I
OZH
I
OZL
I
OS
I
CEX
I
ZZ
I
CCH
I
CCL
I
CCZ
C
IN
Parameter
Input HIGH Voltage
Input LOW Voltage
Input Clamp Diode Voltage
Output HIGH Voltage
Output LOW Voltage
Input HIGH Current
Input HIGH Current Breakdown Test
Input LOW Current
Input Leakage Test
Output Circuit Leakage Current
Output Leakage Current
Output Leakage Current
Output Short-Circuit Current
Output HIGH Leakage Current
Bus Drainage Test
Power Supply Current
Power Supply Current
Power Supply Current
Input Capacitance
30
55
35
8.0
−100
4.75
3.75
20
−20
−225
50
100
50
75
50
2.4
2.0
0.55
5
7
−150
Min
2.0
0.8
−1.2
Typ
Max
Units
V
V
V
V
V
V
µA
µA
µA
V
µA
µA
µA
mA
µA
µA
mA
mA
mA
pF
Min
Min
Min
Min
Max
Max
Max
0.0
0.0
Max
Max
Max
Max
0.0
Max
Max
Max
5.0
V
CC
Conditions
Recognized HIGH Signal
Recognized LOW Signal
I
IN
= −18
mA
I
OH
= −3
mA
I
OH
= −15
mA
I
OL
=
64 mA
V
IN
=
2.7V
V
IN
=
7.0V
V
IN
=
0.5V
I
ID
=
1.9
µA,
All Other Pins Grounded
V
IOD
=
150 mV,
All Other Pins Grounded
V
OUT
=
2.7V
V
OUT
=
0.5V
V
OUT
=
0.0V
V
OUT
=
V
CC
V
OUT
=
5.25V
All Outputs HIGH
All Outputs LOW
Outputs 3-STATED
www.fairchildsemi.com
2
74FR244
AC Electrical Characteristics
T
A
= +25°C
Symbol
Parameter
Min
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
Output Disable Time
Output Enable Time
Propagation Delay
1.0
1.0
2.5
2.5
1.6
1.6
V
CC
= +5.0V
C
L
=
50 pF
Typ
2.6
1.8
4.8
3.9
3.7
3.6
Max
3.9
3.9
6.6
6.6
6.4
6.4
T
A
=
0°C to
+70°C
V
CC
= +5.0V
C
L
=
50 pF
Min
1.0
1.0
2.5
2.5
1.6
1.6
Max
3.9
3.9
6.6
6.6
6.4
6.4
ns
ns
ns
Units
Extended AC Characteristics
T
A
=
0°C to
+70°C
V
CC
= +5.0V
Symbol
Parameter
C
L
=
50 pF
Eight Outputs Switching
(Note 3)
Min
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
t
OSHL
t
OSLH
t
OST
Pin-to-Pin Skew
for HL Transitions (Note 5)
Pin-to-Pin Skew
for LH Transitions (Note 5)
Pin-to-Pin Skew
for HL/LH Transitions (Note 5)
Output Disable Time
Output Enable Time
Propagation Delay
1.0
1.0
2.5
2.5
1.6
1.6
Max
5.0
5.0
7.7
7.7
6.5
6.5
1.6
1.0
3.5
Min
2.3
2.3
Max
7.3
7.3
ns
ns
ns
ns
ns
ns
T
A
=
0°C to
+70°C
V
CC
= +5.0V
C
L
=
250 pF
(Note 4)
Units
Note 3:
This specification is guaranteed but not tested. The limits apply to propagation delays for all paths described switching in phase,
i.e., all LOW-to-HIGH, HIGH-to-LOW, 3-STATE-to-HIGH, etc.
Note 4:
These specifications guaranteed but not tested. The limits represent propagation delays with 250 pF load capacitors in place of the 50 pF load
capacitors in the standard AC load. This specification pertains to single output switching only.
Note 5:
Skew is defined as the absolute value of the difference between the actual propagation delays for any two outputs of the same device. The specifi-
cation applies to any outputs switching HIGH-to-LOW, (t
OSHL
), LOW-to-HIGH, (t
OSLH
), or HIGH-to-LOW and/or LOW-to-HIGH, (t
OST
). Specification guaran-
teed with all outputs switching in phase.
3
www.fairchildsemi.com
74FR244
Physical Dimensions
inches (millimeters) unless otherwise noted
20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide
Package Number M20B
www.fairchildsemi.com
4
74FR244
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

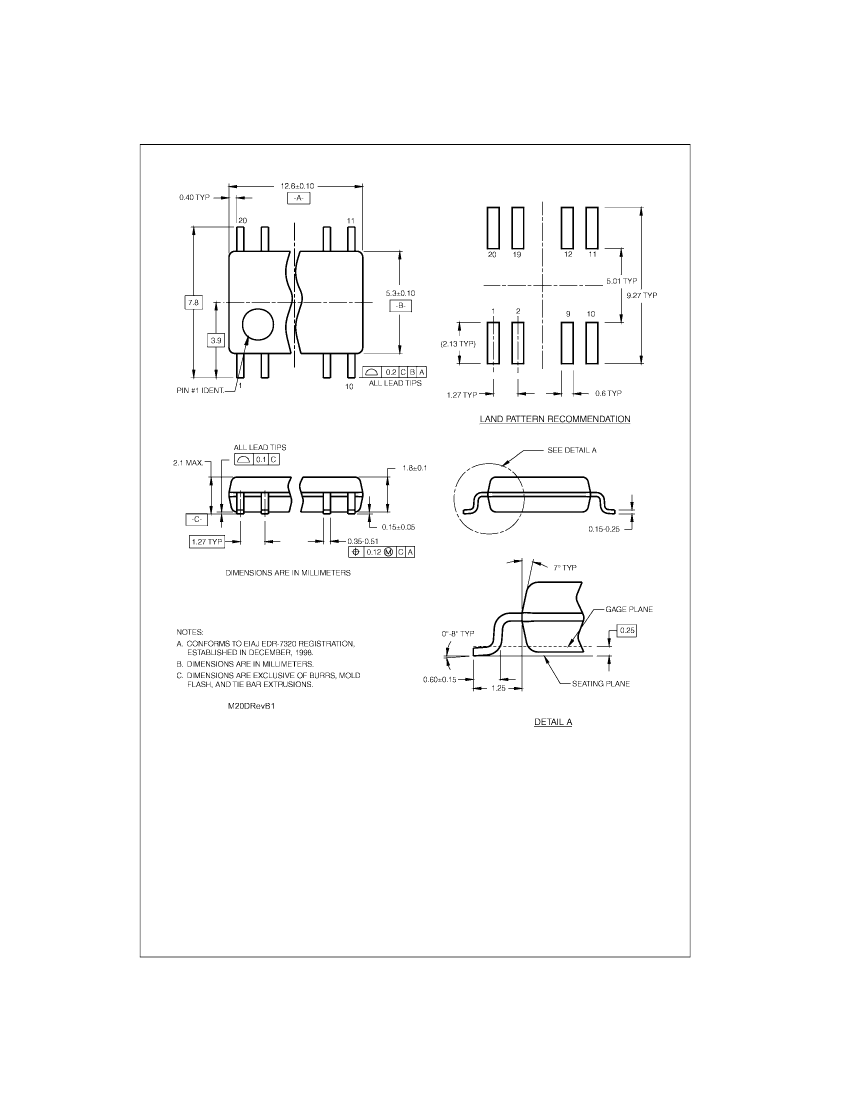

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M20D
5
www.fairchildsemi.com
