Six-Way Power Splitter/Combiner
DS56-0002
DS56-0002
Preliminary Specifications
Low Cost Six-Way Power Splitter/Combiner
1700 - 2000 MHz
Features
•
•
•
•
•
•
Small Size, Low Profile
Industry Standard SOW-16 SMT Plastic Package
Superior Repeatability
Insertion Loss: 1.1 dB Typical
Isolation: 22 dB Typical
Low Cost
SOW-16
Pin 16
Orientation
Mark
Pin 1
.3977-.4133
(10.10-10.50)
-A-
.004 (0.10)
0.050(1.27) BSC.
-B-
.394-.419
(10.00-10.65)
.010(0.25) M B M
Description
M/A-COM’s DS56-0002 is an IC-based monolithic power divider
in a low cost SOW-16 -lead plastic package. This 6-way power
divider is ideally suited for applications where small size, low
profile and low cost, without sacrificing performance, are re-
quired. Typical applications include base stations, portables and
PCMCIA cards for wireless standards such as DCS-1800, PCN,
PCS, DECT and PHS. Available in tape and reel.
The DS56-0002 is fabricated using a passive-integrated circuit
process. The process features full-chip passivation for increased
performance and reliability.
.0926-.1043
(7.40-7.60)
0-8
-C-
.010-.029 x
45 Chamfer
(0.25-0.75)
.0040-.0118
.013-.020 TYP (0.10-0.30)
(0.33-0.51)
.010(0.25) M C A M B S
.016-.050
(0.40-1.27)
.0091-.0125
(0.23-0.32)
16-Lead SOP outline dimensions
Wide body (.300)
(All dimensions per JEDEC No. MS-013-AA, Issue C)
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = 0.010 (.xx = 0.25)
.xx = 0.02 (.x = 0.5)
Ordering Information
Part Number
DS56-0002
DS56-0002-TR
DS56-0002-RTR
Package
SOW 16-Lead Plastic Package
1
Forward Tape and Reel
1
Reverse Tape and Reel
1. If specific reel size is required, consult factory for part number
assignment.
Typical Electrical Specifications , T
A
= +25ºC
Parameters
Insertion Loss
Isolation
VSWR
Amplitude Balance
Phase Balance
Units
dB
dB
—
dB
°
Min.
—
18
—
—
—
Typ.
1.2
22
1.4:1
0.5
8°
Max.
1.5
—
1.8:1
1.0
15°
1
1. All specifications apply with a 50-ohm source and load impedance.
V1.B
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
The Preliminary Specifications Data Sheet contains typical electrical specifications which may change prior to final introduction.
Six-Way Power Splitter/Combiner
1
3
DS56-0002
Absolute Maximum Ratings
Parameter
2

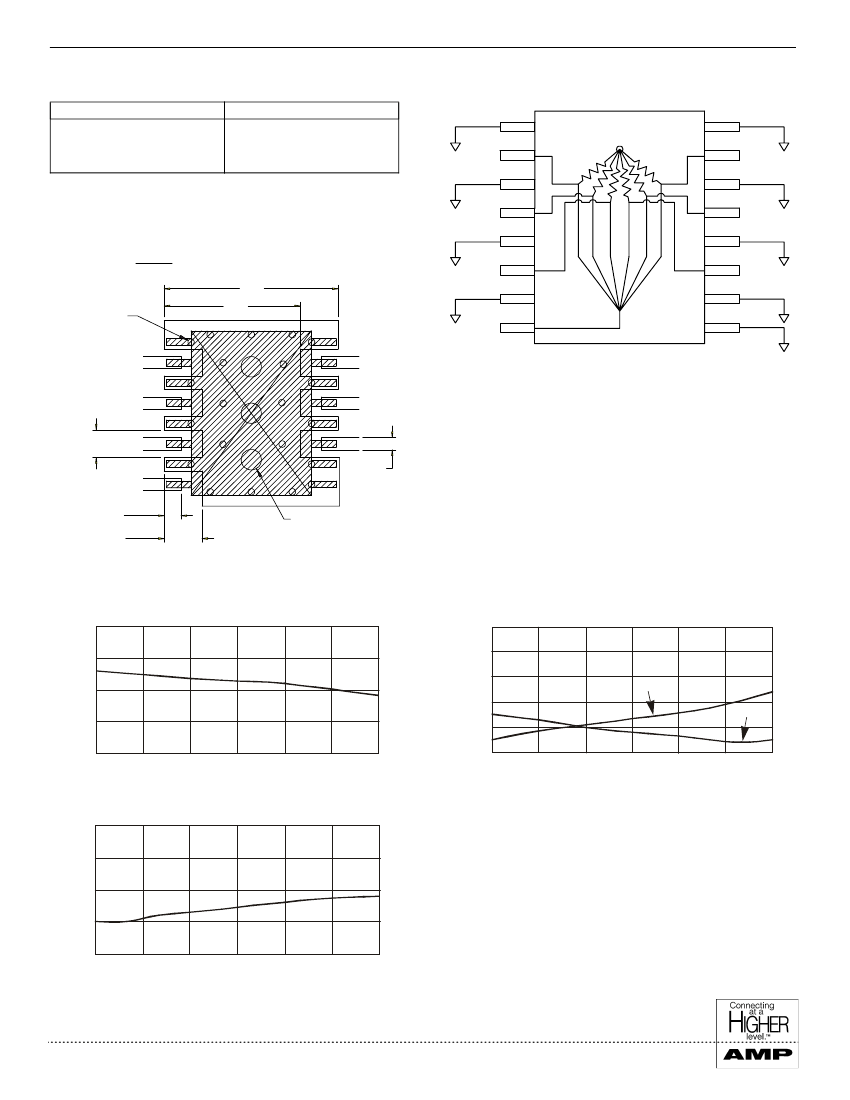

Functional Diagram
GND
1
R F 3 (O U T )
2
GND
3
R F 2 (O U T )
4
GND
5
R F 1 (O U T )
6
Absolute Maximum
1W CW
Input Power
Operating Temperature
-40°C to +85°C
Storage Temperature
-65°C to 150°C
1. Exceeding these limits may cause permanent damage.
2. With internal load dissipation of 0.125 W maximum.
GND
16
R F 4 (O U T )
15
GND
14
R F 5 (O U T )
13
GND
12
R F 6 (O U T )
11
GND
10
GND
9
Recommended PCB Configuration
(Dimensions in Inches)
mm
.428
.016 D IA.
PLAT ED
T HR U (21X)
.335
GND
7
R F IN
8
RF 3
RF 4
3. Pins 1, 3, 5, 7, 9, 10, 12, 14 and 16 must be DC and RF grounded.
RF 2
RF 5
.067 T YP.
RF 1
RF 6
.030 T YP.
R F IN
.041
.093 T YP.
.050 D IA.
PLAT ED
T HR U (3X)
C IR CU IT M AT ER IAL: FR -4 .016 TH ICK
Typical Performance @ +25°C
Insertion Loss vs. Frequency
INSERTION LOSS (dB)
0.0
-0.5
2.0
1.8
VSWR vs. Frequency
VSWR
1.6
1.4
1.2
1.0
1700
-1.0
-1.5
-2.0
1700
Input
Output
1750
1800
1850
1900
1950
2000
1750
1800
1850
1900
1950
2000
FREQUENCY (MH z)
FREQUENCY (MH z)
Isolation vs. Frequency
0
ISOLATION (dB)
-10
-20
-30
-40
1700
1750
1800
1850
1900
1950
2000
V1.B
FREQUENCY (MH z)
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
The Preliminary Specifications Data Sheet contains typical electrical specifications which may change prior to final introduction.
