78016-1001 datasheet, PDF - EEWORLD Datasheet

78016-1001: Description1.00mm (.039) pitch icool? low profile vrm, vertical, surface mount, with Towerwith beveled metal pins, 0.76??m (30??") gold (Au) plating, signal 20, power 72,; File Size269KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

78016-1001 Overview

1.00mm (.039) pitch icool? low profile vrm, vertical, surface mount, with Towerwith beveled metal pins, 0.76??m (30??") gold (Au) plating, signal 20, power 72,

Preview

Download Datasheet

View All

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0780161001

Active

1.00mm (.039) Pitch iCool™ Low Profile VRM, Vertical, Surface Mount, with Tower,

with Beveled Metal Pins, 0.76µm (30µ") Gold (Au) Plating, Signal 20, Power 72,

Leadfree

General

Product Family

Series

Component Type

Overview

Product Name

Edge Card Connectors

78016

Edgecard to PCB

icool

iCool™, VRM

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

Entry Angle

Keying to Mating Part

Material - Plating Mating

Material - Plating Termination

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

20 Signal, 72 Power

Vertical (Top Entry)

Yes

Gold

Tin

Yes

Tray

0.039 In

1.00 mm

0.76

Yes

-10°C to +105°C

Surface Mount

Search Parts in this Series

78016Series

Mates With

Voltage Regulator Module

Electrical

Current - Maximum per Contact

Voltage - Maximum

1A, 4A

48V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Wave Capable (TH only)

245

Material Info

Reference - Drawing Numbers

Product Specification

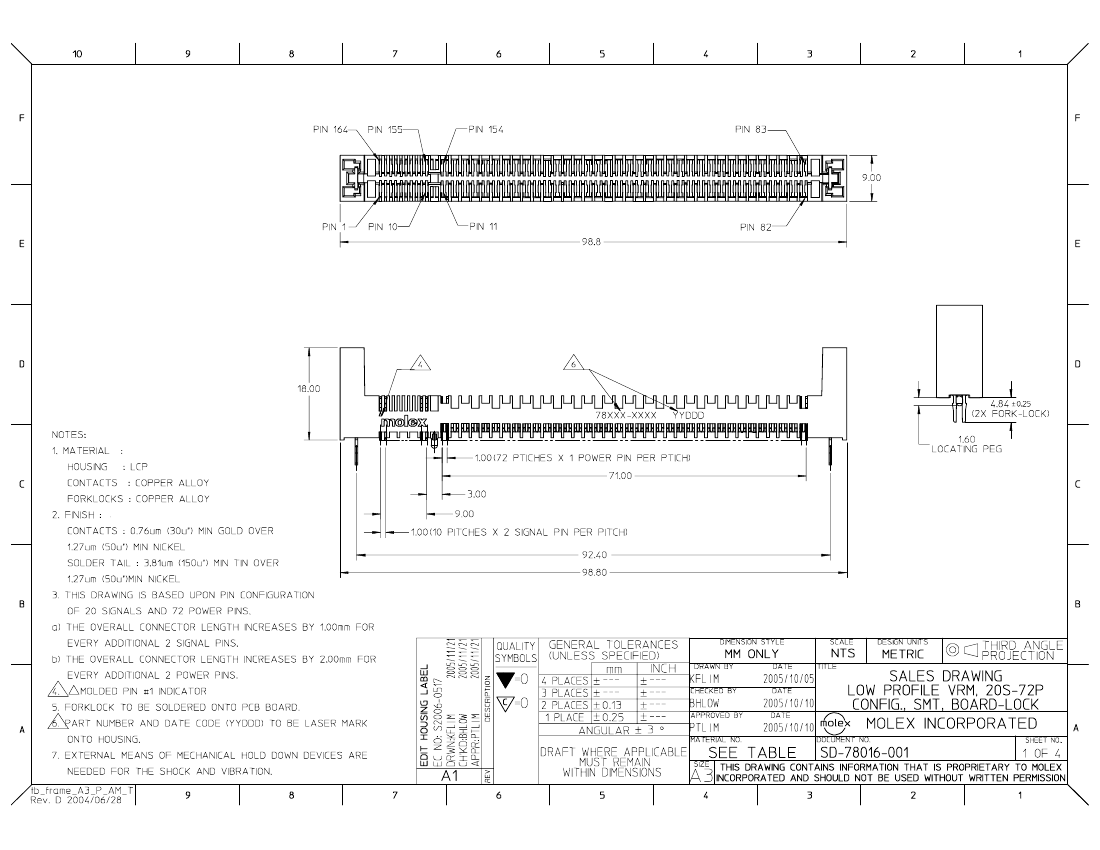

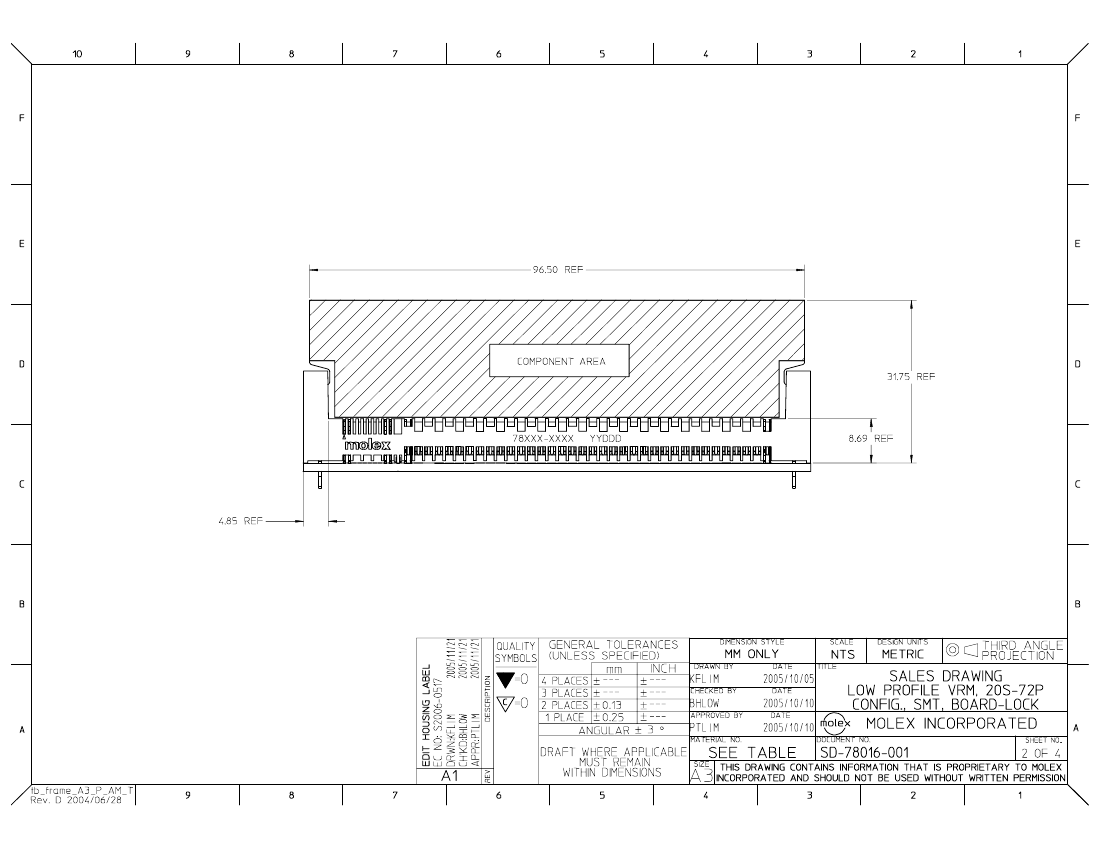

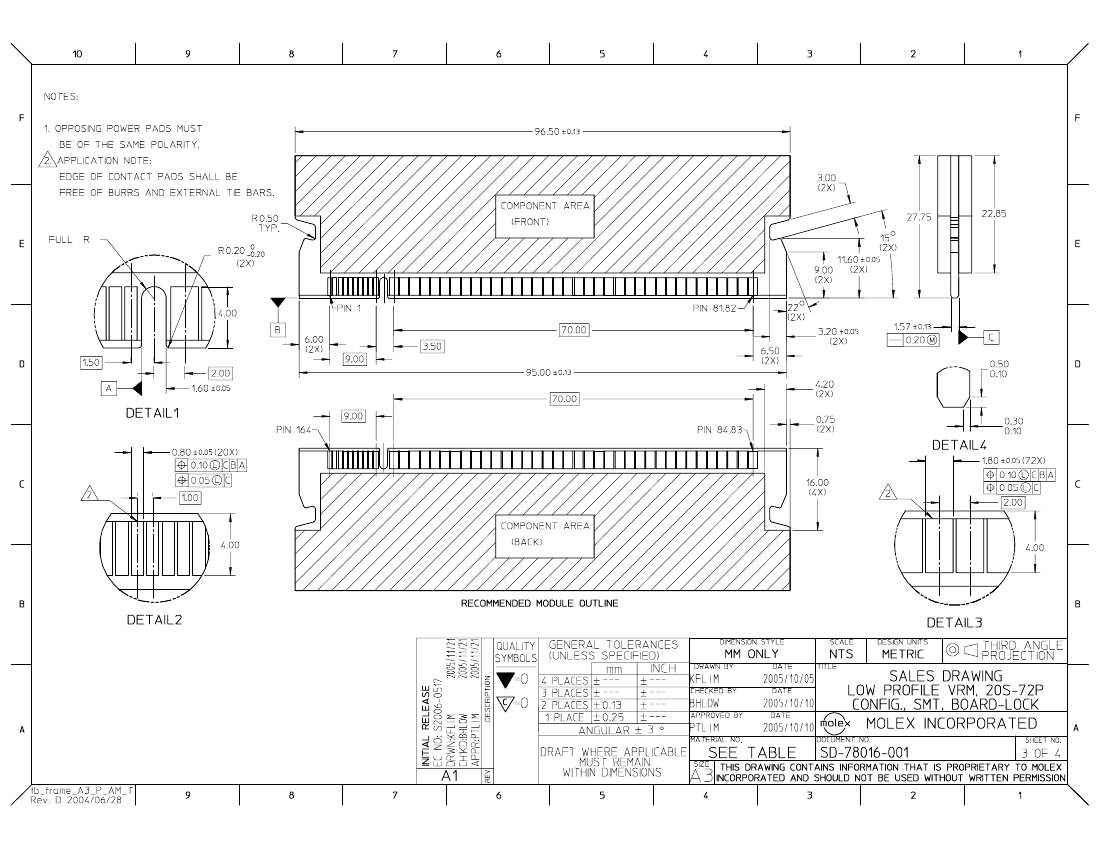

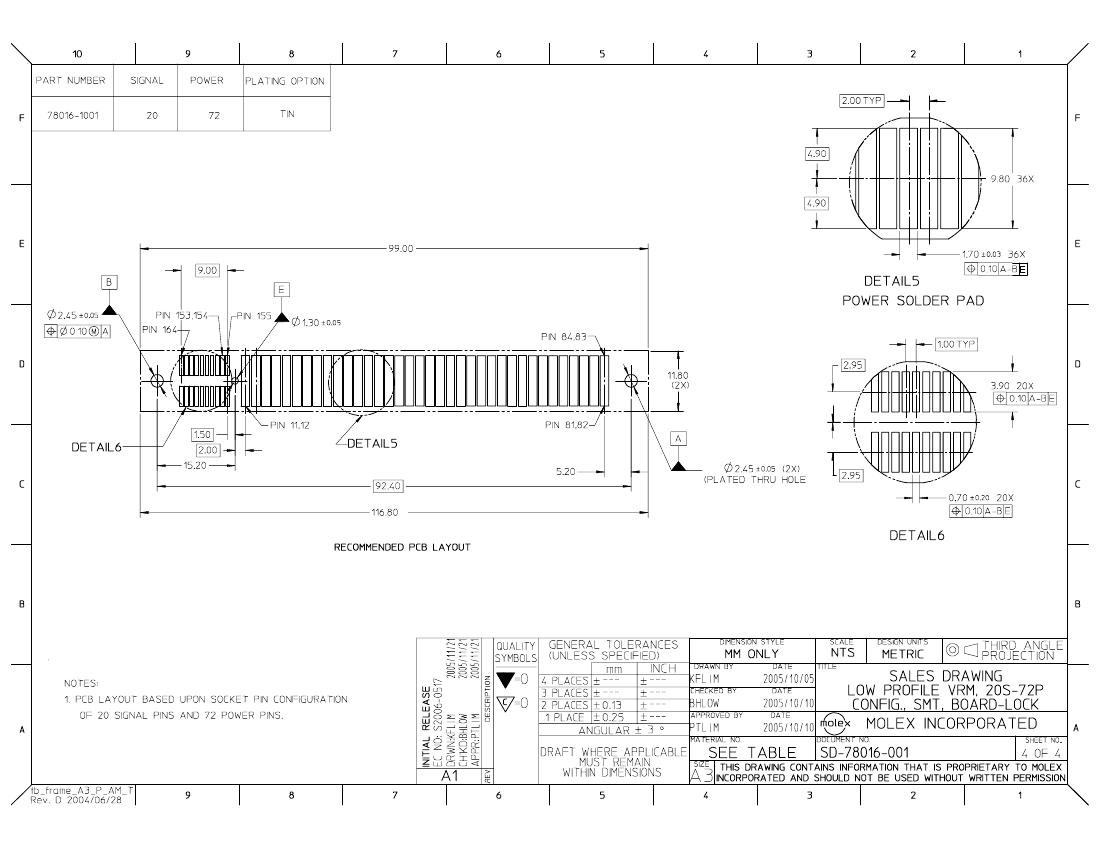

Sales Drawing

PS-87810-008

SD-78016-001

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
