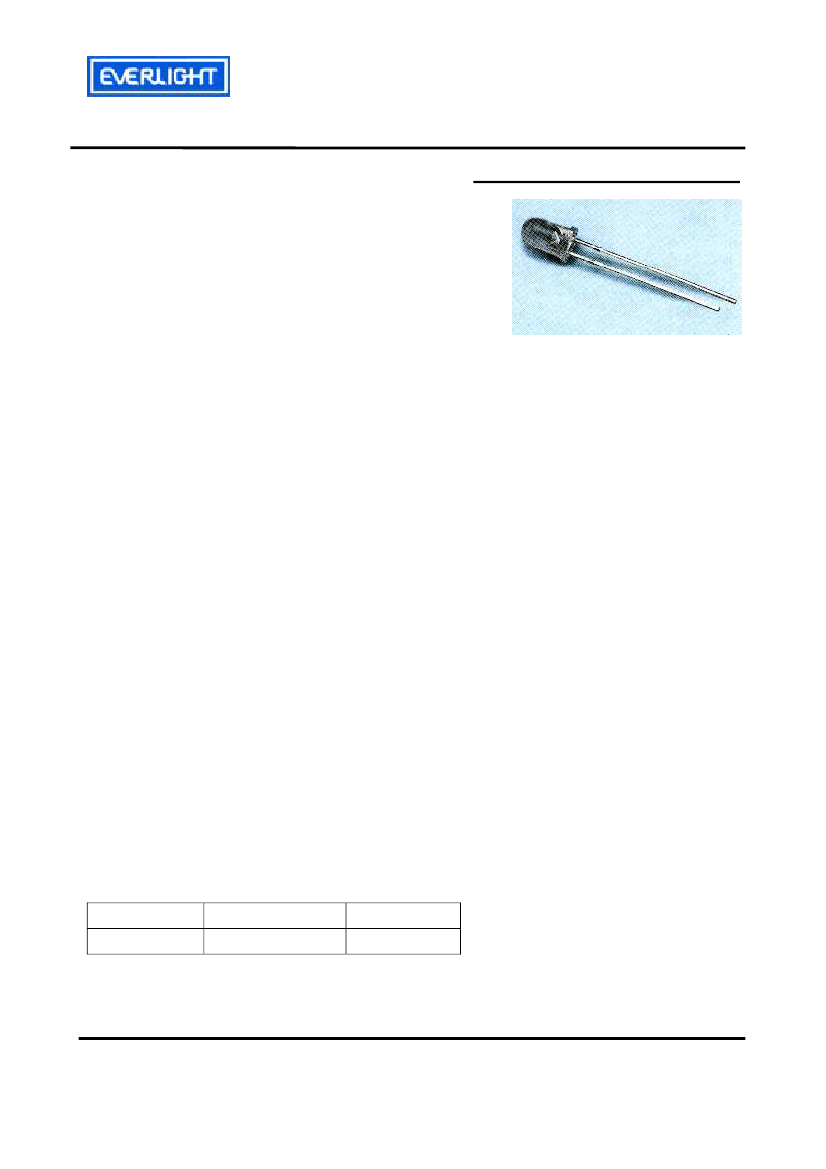

EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
7383/V7C3-ARTA/R/MS
Features
˙Popular
T-1 3/4 diameter package.
˙Choice
of various viewing angles.
˙Available
on tape and reel.
˙Reliable
and robust.
˙UV
resistant epoxy
˙The
product itself will remain within RoHS compliant version.
Descriptions
˙The
series is specially designed for applications
requiring higher brightness.
˙The
LED lamps are available with different
colors, intensities, epoxy colors, etc.
Applications
˙Color
Graphic Signs
˙Message
boards
˙Variable
message signs (VMS)
˙Commercial
outdoor advertising
Device Selection Guide
Chip Material
InGaN
Emitted Color
Bluish Green
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number : DT1-738-029
http\\:www.everlight.com
Prepared date: 08-27-2007
Rev : 1
Page: 1 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
7383/V7C3-ARTA/R/MS

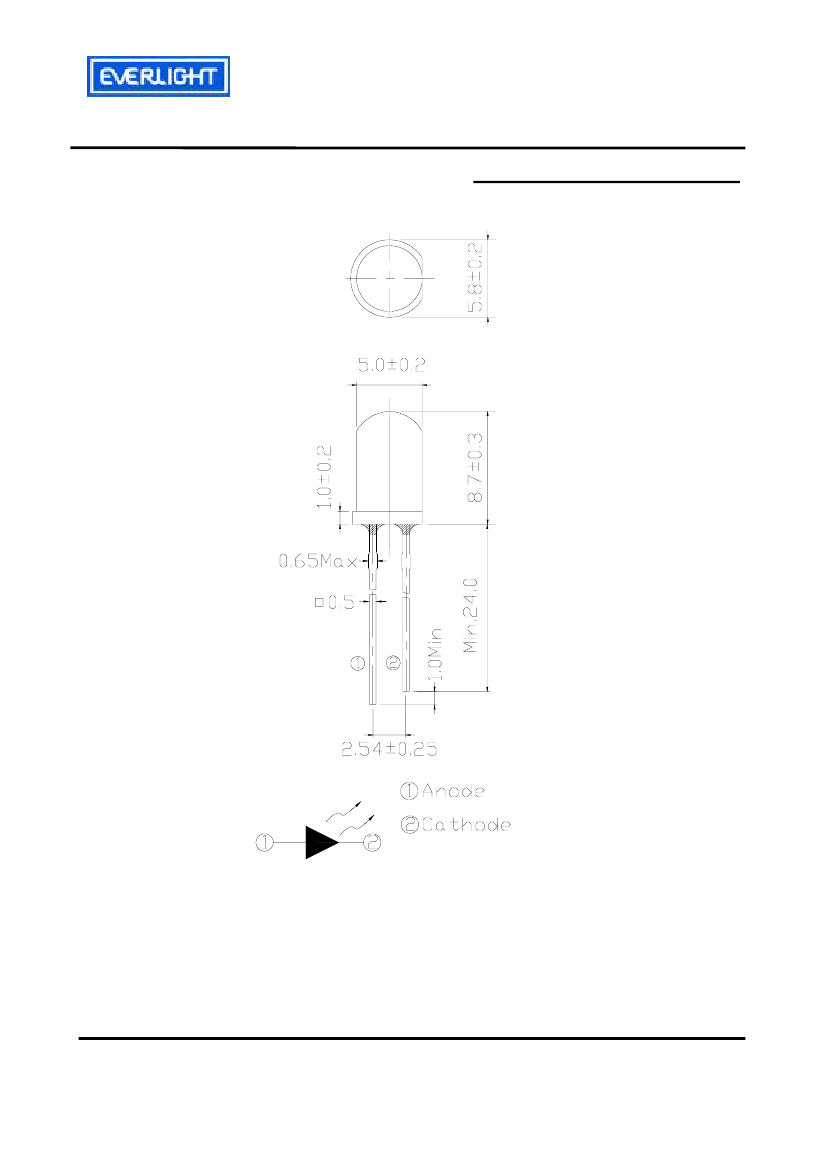

Package Dimensions
Notes:
˙All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
˙Protruded
resin under flange is 1.5mm Max LED.
Everlight Electronics Co., Ltd.
Device Number : DT1-738-029
http\\:www.everlight.com
Prepared date: 08-27-2007
Rev : 1
Page: 2 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
7383/V7C3-ARTA/R/MS
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward Current
Pulse Forward Current
*1
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
*2
Power Dissipation
Reverse Voltage
Symbol
I
F
I
FP
T
opr
T
stg
ESD
T
sol
P
d
V
R
Rating
30
100
-40 ~ +85
-40 ~ +100
1K
260
±5
120
5
Units
mA
mA
℃
℃
V
℃
mW
V
Notes:
*1:I
FP
Conditions--Pulse Width≦10msec and Duty≦1/10.
*2:Soldering time≦5 seconds.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Reverse Current
Symbol
V
F
I
V
2θ1/2
λ
p
λ
d
Δλ
I
R
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Min.
2.8
4500
--
--
498
--
--
Typ.
3.2
6300
30
502
505
25
--
Max.
3.6
9000
--
--
513
--
50
Units
V
mcd
deg
nm
nm
nm
μA
Everlight Electronics Co., Ltd.
Device Number : DT1-738-029
http\\:www.everlight.com
Prepared date: 08-27-2007
Rev : 1
Page: 3 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
7383/V7C3-ARTA/R/MS
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
R
4500~5650
S
5650~7150
T
7150~9000
Unit: :mcd
*Measurement Uncertainty of Luminous Intensity:
±15%
Rank
Forward Voltage
0
2.8~3.0
1
3.0~3.2
2
3.2~3.4
3
3.4~3.6
Unit:V
*Measurement Uncertainty of Forward Voltage:
±0.1V
Rank
Dominant Wavelength
2
3
4
508~513
Unit:nm
498~503
503~508
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
*The quantity ratio of the ranks is decided by EVERLIGHT.
Everlight Electronics Co., Ltd.
Device Number : DT1-738-029
http\\:www.everlight.com
Prepared date: 08-27-2007
Rev : 1
Page: 4 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
7383/V7C3-ARTA/R/MS

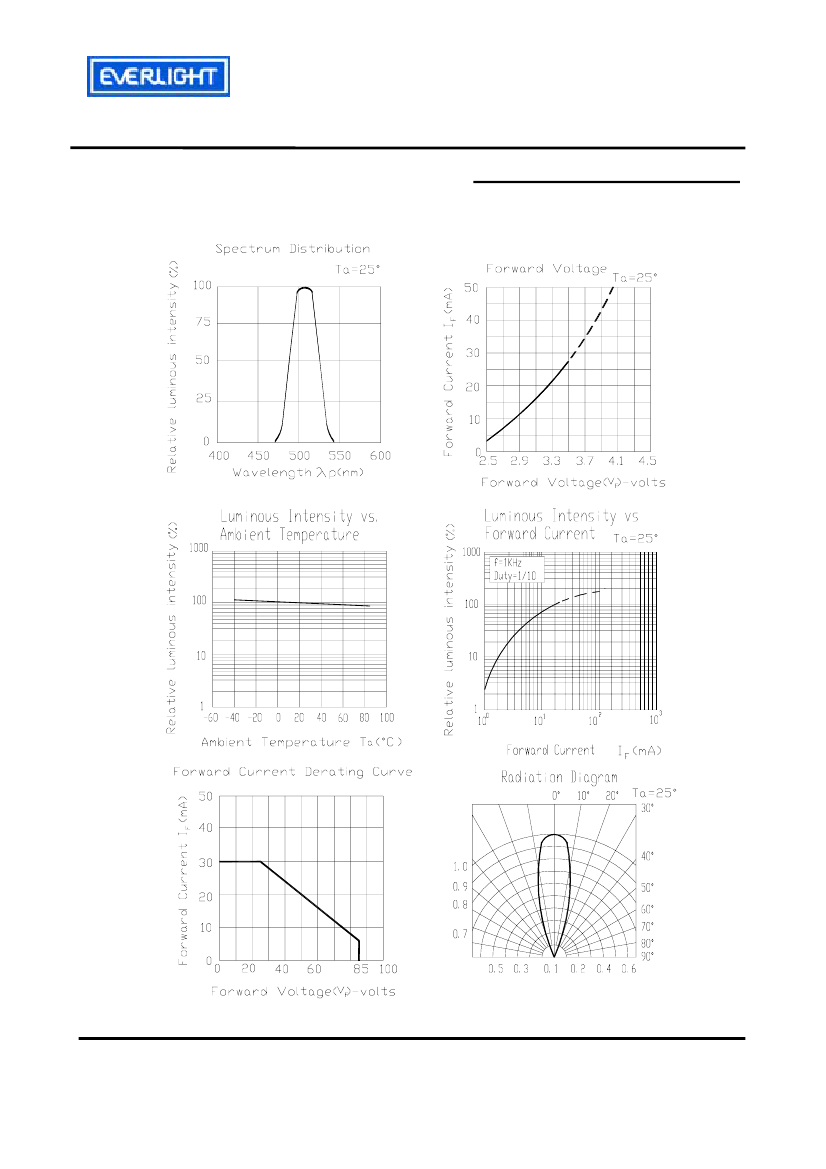

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device Number : DT1-738-029
http\\:www.everlight.com
Prepared date: 08-27-2007
Rev : 1
Page: 5 of 9
Prepared :Flourix Chen
