800SP9B7M6QEC2BLK

Description
switch push spst-NO 3A 120v
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size720KB,5 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Environmental Compliance
Download Datasheet Parametric Compare View All

800SP9B7M6QEC2BLK Overview

switch push spst-NO 3A 120v

800SP9B7M6QEC2BLK Parametric

Parameter NameAttribute value
Datasheets
800 Series
RoHS Informati
800 Series RoHS Cert of Compliance
Standard Package1
CategorySwitches
FamilyPushbutton Switches
PackagingBulk
TypeStandard
CircuiSPST-NO
Switch FunctiOff-Mom
Current Rating3A (AC/DC)
Voltage Rating - AC120V
Voltage Rating - DC28V
Actuator TypeRound, Bu
Color - Actuator/CBlack
Illumination Type, Col-
Illumination Voltage (Nominal)-
Mounting TypeThrough Hole, Right Angle
Termination StylePC Pi
Ingress Protecti-
Features-
Panel Cutout Dimensions-
Operating Temperature-30°C ~ 85°C
Mechanical Life50,000 Cycles
Electrical Life50,000 Cycles

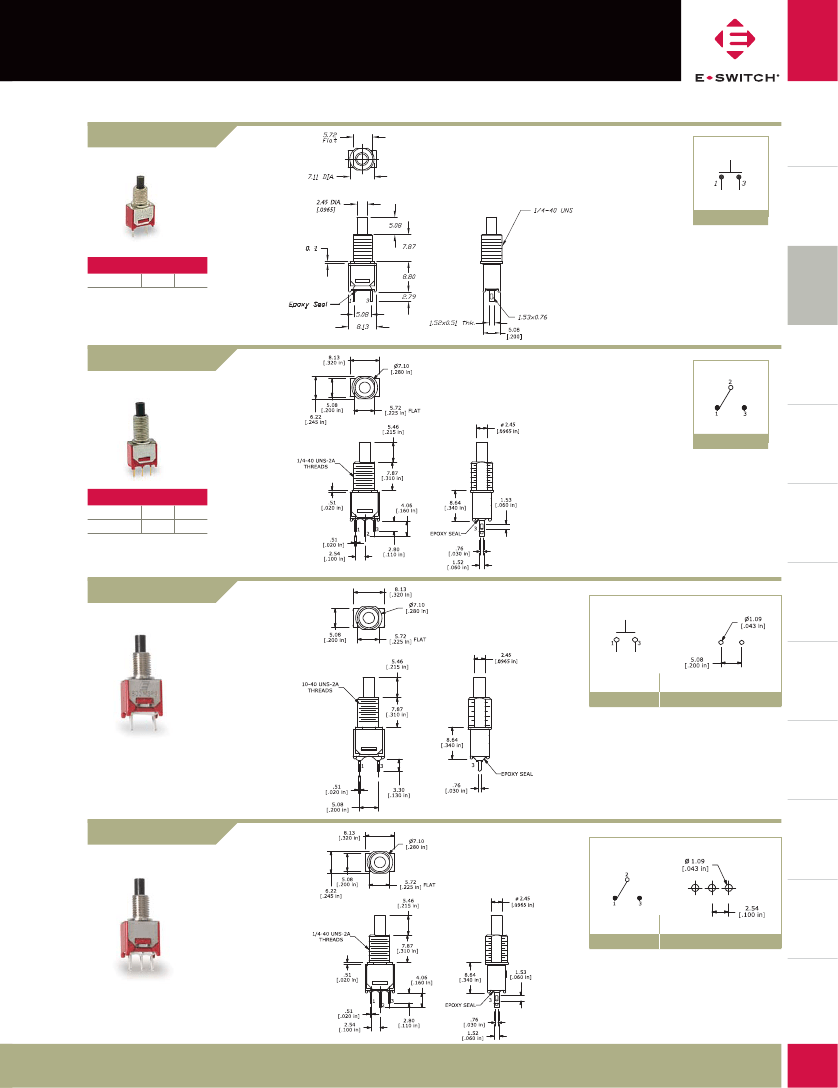

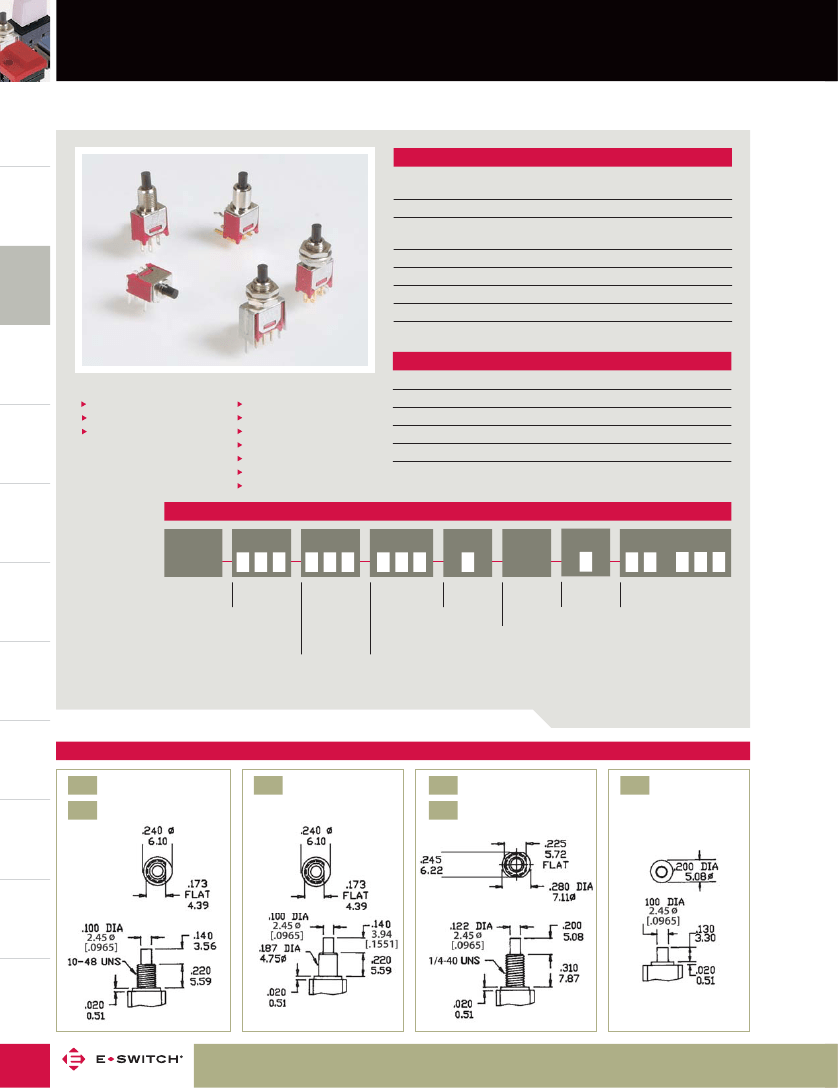

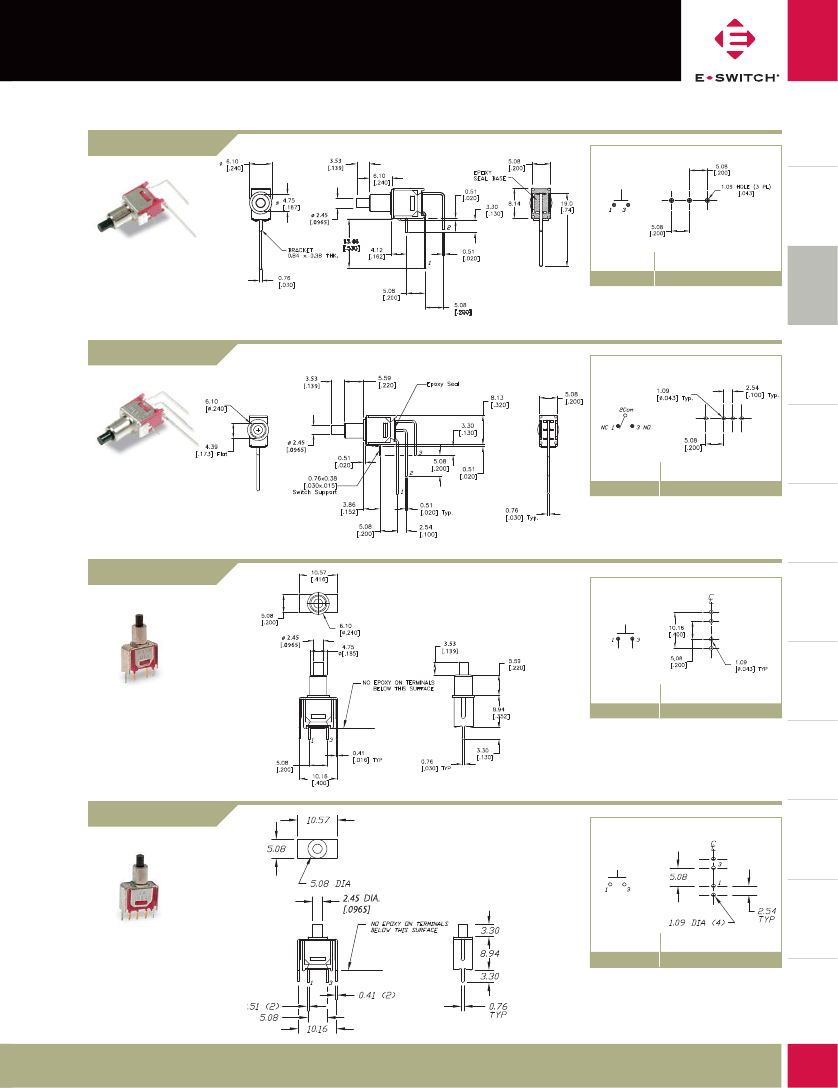

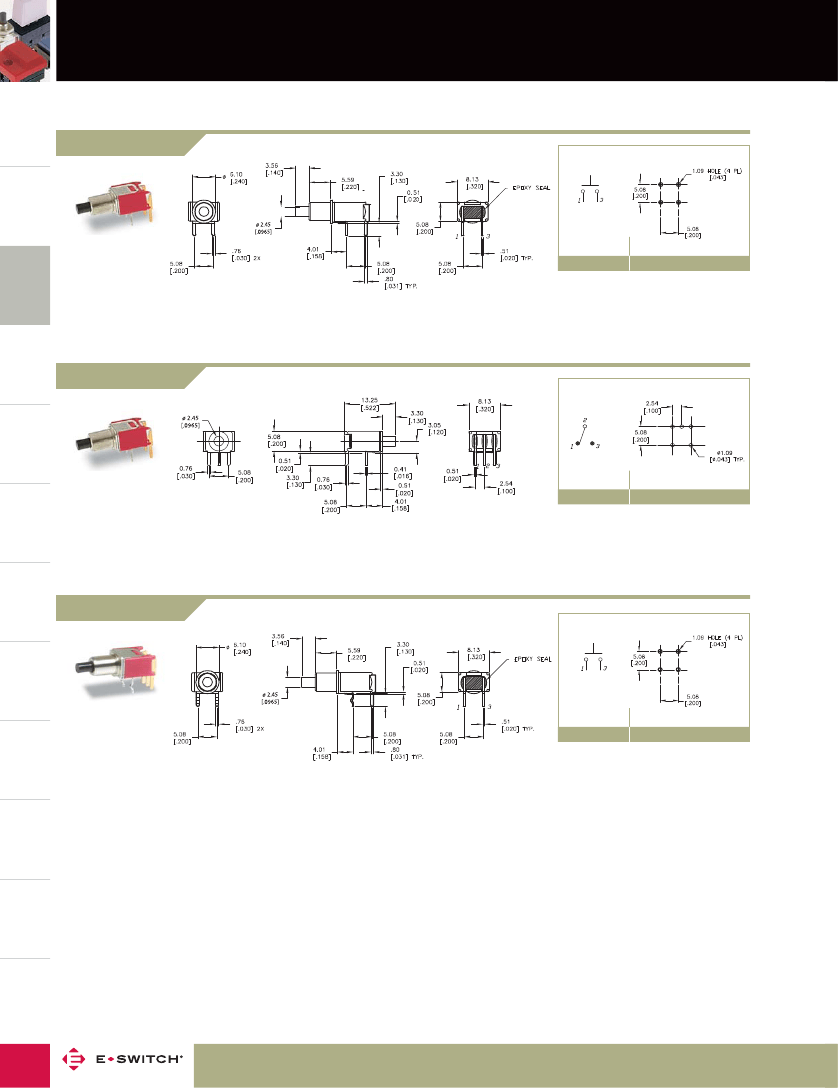

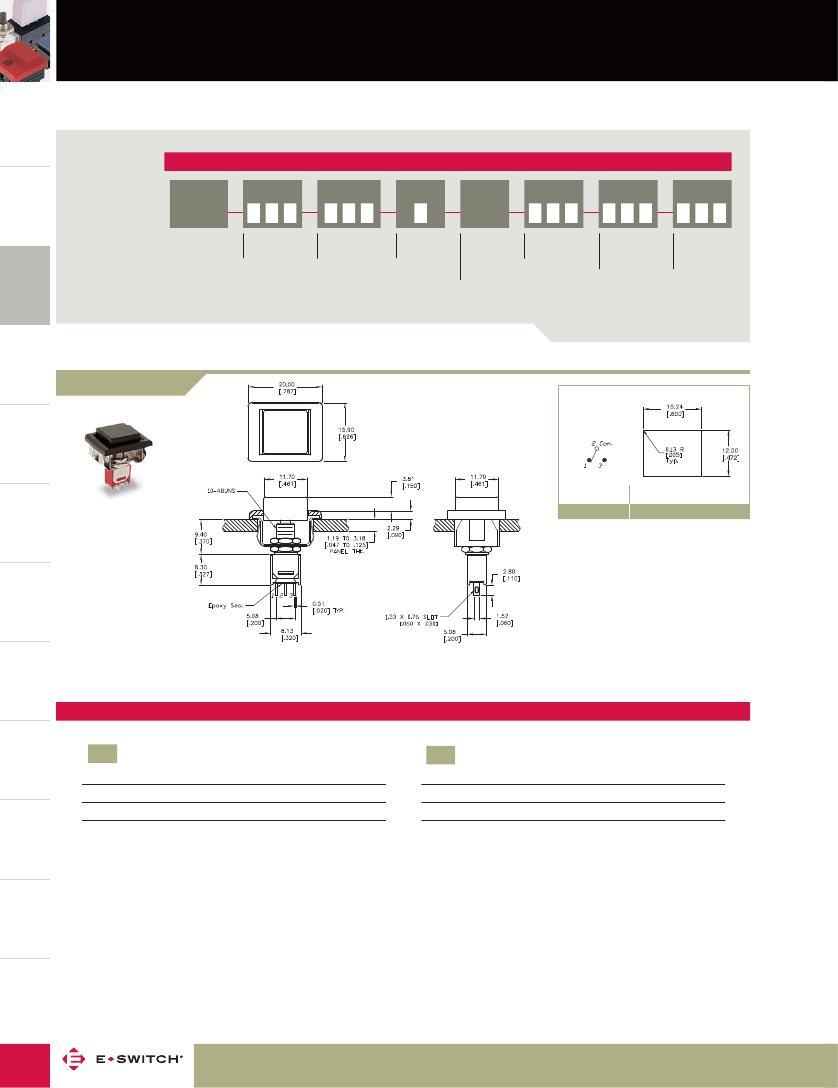

SERIES 800 SWITCHES
TACT
SWITCHES
PUSHBUTTON SWITCHES - SUB-MINIATURE
SPECIFICATIONS
NAVIGATION
SWITCHES
Contact Rating:
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
1A @ 250 VAC
3A @ 120 VAC or 28 VDC
50,000 cycles typical
10mΩ max. typical @ 2-4 VDC
100mA for both silver and gold plated contacts
1,000MΩ min.
1,000 V rms @ sea level
200 ± 50 gf
PUSHBUTTON
SWITCHES
Operating Temperature: -30°C to +85°C
TOGGLE
SWITCHES
MATERIALS
FEATURES & BENEFITS
Subminiature design
Butt contact design
Snap-in panel mount option
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
Case:
Plunger:
Bushing:
Housing:
Contacts:
DAP
Glass filled nylon or glass filled polyester
Nickel plated brass
Stainless steel
Silver or Gold plated copper alloy
SLIDE
SWITCHES
ROCKER
SWITCHES
HOW TO ORDER
SERIES
MODEL NO.
BUSHING
TERMINATION
CONTACT
MATERIAL
SEAL
HARDWARE
CAP
CAP COLOR
800
SNAP-ACTION
SWITCHES
SP9
SP8
B5
B6
B7
B8*
B9*
B10
M1
M2
M6
M61
M7
VS2
Q = Silver
R = Gold
E
E = Epoxy
Sealed at
Base of
Terminal
H=
Hardware
See Cap Options
DIP
SWITCHES
Example Ordering Number
800_ SP9_ B5_ M1_ Q
_
E_ H
*Note: C2 cap not available on
B8 or B9 bushing.
Specifications subject to change without notice.
KEYLOCK
SWITCHES
BUSHING OPTIONS
B5
B6
THD
NON-THD
B7
NON-THD
B8
B9
NON-THD
THD
B7
NON-THD
ROTARY
SWITCHES
No Flat
CAP
OPTIONS
DETECTOR
SWITCHES
72
Phone: 800-867-2717
Fax: 763-531-8235
