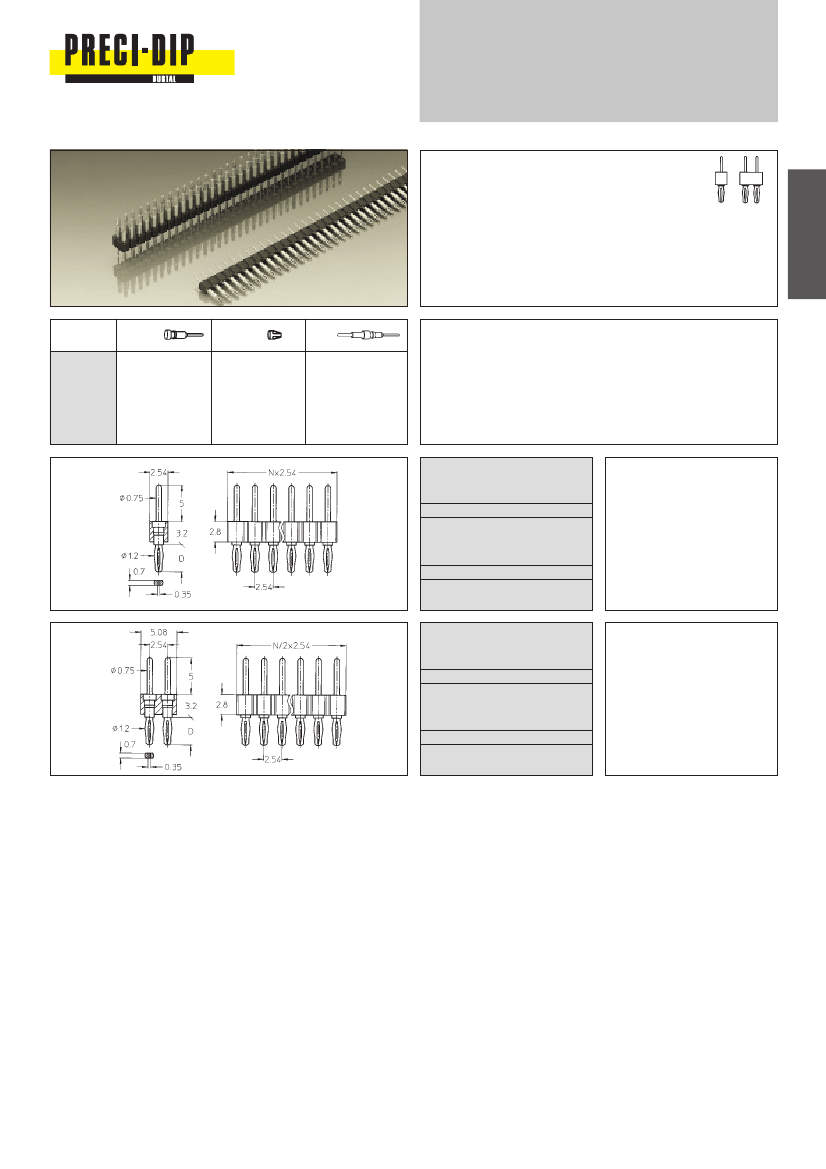

Series 800
PCB connectors 2.54 mm
Single row / double row
Press-fit
33
Pin connectors, press-fit
Pin connectors with screw-machined
pin
∅
0.76 mm
With compliant pin for solderless mount into PCB
plated-thru holes
∅
1 mm + 0.09/– 0.06 mm
For corresponding connectors see pages 22 to 29
New version with modified eye of the needle pin
Platings
10
90
Sleeve
Clip
Pin
0.25
µm
Au
5
µm
Sn Pb
Ordering information
Replace
xxx
with the number of poles, e.g. 802-10-xxx-65-001
for a double row version with 8 pins per row becomes:
802-10-016-65-001
(Older versions 800/802-..-...-61/62-001 please consult)
for PCB thickness 1.5 to
2.0 mm D = 2.80 mm
800-10-xxx-65-001
800-90-xxx-65-001
for PCB thickness 2.1 to
3.2 mm D = 3.80 mm
800-10-xxx-66-001
800-90-xxx-66-001
Press-fit pin connector: single
row
Availability from: 1 to 64 contacts
Standard number of contacts 5,
6, 8, 10, 14, 16, 20, 21, 25, 30,
32, 48, 56, 60, 64
New version with modified eye of
the needle pin
for PCB thickness 1.5 to
2.0 mm D = 2.80 mm
802-10-xxx-65-001
802-90-xxx-65-001
for PCB thickness 2.1 to
3.2 mm D = 3.80 mm
802-10-xxx-66-001
802-90-xxx-66-001
Press-fit pin connector: double
row
Availability from: 4 to 72 contacts
Standard number of contacts 40,
44, 56, 64, 72
New version with modified eye of
the needle pin
