3680 Investment Lane – Riviera Beach, FL 33404
Telephone 1-800-327-6183 – Fax (561) 845-7813
PPR1510E
45 VOLTS, 10 AMP
SCHOTTKY RECTIFIER
DESIGNER’ DATA SHEET
S
FEATURES:
Ø
Ø
Ø
Ø
Ø
Ø
Ø
Low Reverse Leakage
Low Forward Voltage Drop
TX, TXV and Space Level Screening Available
Hermetically Sealed Power Surface Mount Package
Guard Ring for Overvoltage protection
Eutectic Die Attach
175
o
C Operating Temperature

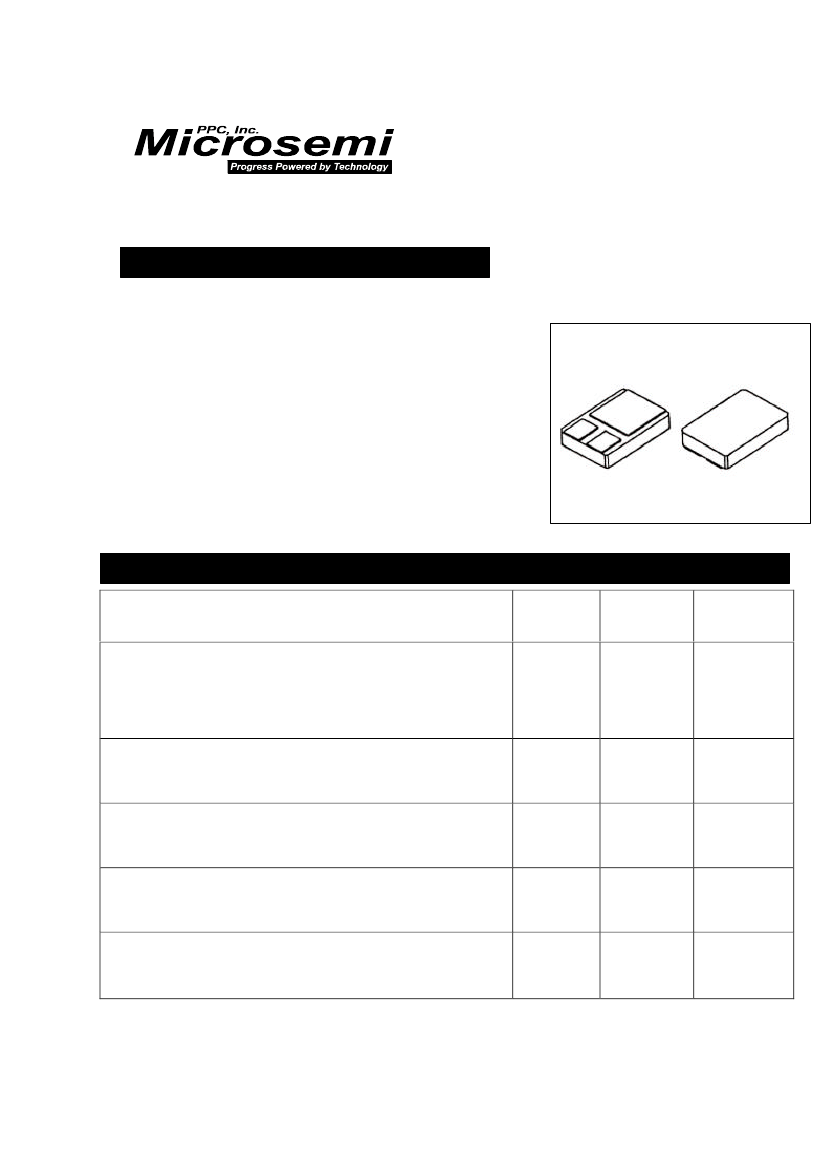

SMD.5
MAXIMUM RATINGS
RATING
Peak Repetitive Reverse and DC Blocking Voltage
SYMBOL
V
RRM
V
RWN
V
R
VALUE
UNIT
100
Volts
Average Rectified Forward Current
(Resistive Load, 60Hz, Sine Wave, TA = 25
o
C)
Peak Surge Current
(8.3 ms Pulse, TA = 25
o
C)
I
FSM
250
Amps
o
Io
15
Amps
Operating and storage temperature
Top & Tstg
-55 to + 175
C
Maximum Thermal Resistance
Junction to Case
R
θJC
2.0
o
C /W
FOR MORE INFORMATION CALL 1-800-327-6183
3680 Investment Lane – Riviera Beach, FL 33404
Telephone 1-800-327-6183 – Fax (561) 845-7813
PPR1510E
SYMBOL
V
F1
V
F2
I
R1
I
R2
C
J
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS
Instantaneous Forward Voltage Drop
(I
F
= 5 Adc, T
A
= 25
o
C, 300µs Pulse)
(I
F
= 10 Adc, T
A
= 25
o
C, 300µs Pulse)
Instantaneous Forward Voltage Drop
(I
F
= 5 Adc, T
A
= 100
o
C, 300µs Pulse)
Reverse Leakage Current
(Rated VR, T
A
= 25
o
C, 300µs pulse minimum)
Reverse Leakage Current
(Rated VR, T
A
= 100
o
C, 300µs pulse minimum)
Junction Capacitance
V
R
= 10 V, T
A
= 25
o
C, f = 1 MHz)
MAX.
0.780
1.10
0.870
100
10
800
UNIT
Vdc
Vdc
µA
mA
pF

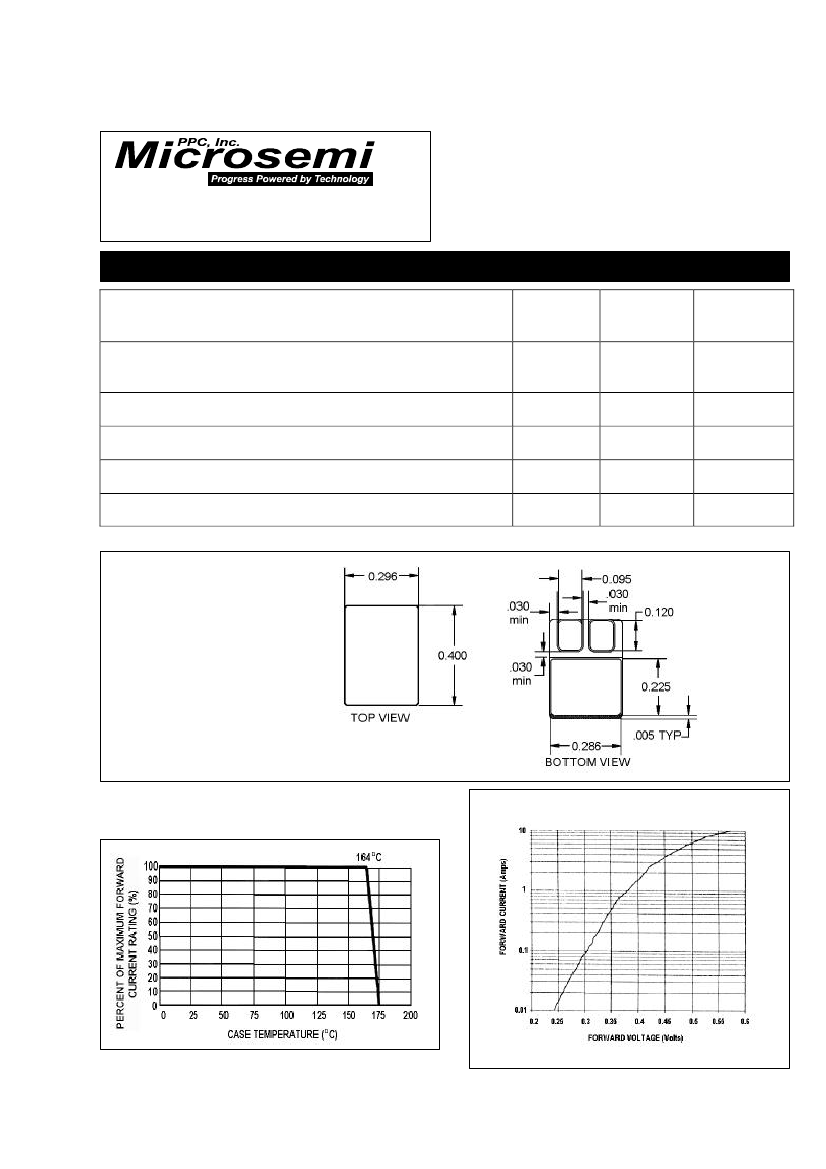

CASE OUTLINE: SMD.5
PIN OUT:
PIN 1: CATHODE
PIN 2: ANODE
PIN 3: ANODE
TYPICAL OPERATING CURVES
(TA=25
o
C Unless otherwise specified)
FOR MORE INFORMATION CALL 1-800-327-6183
