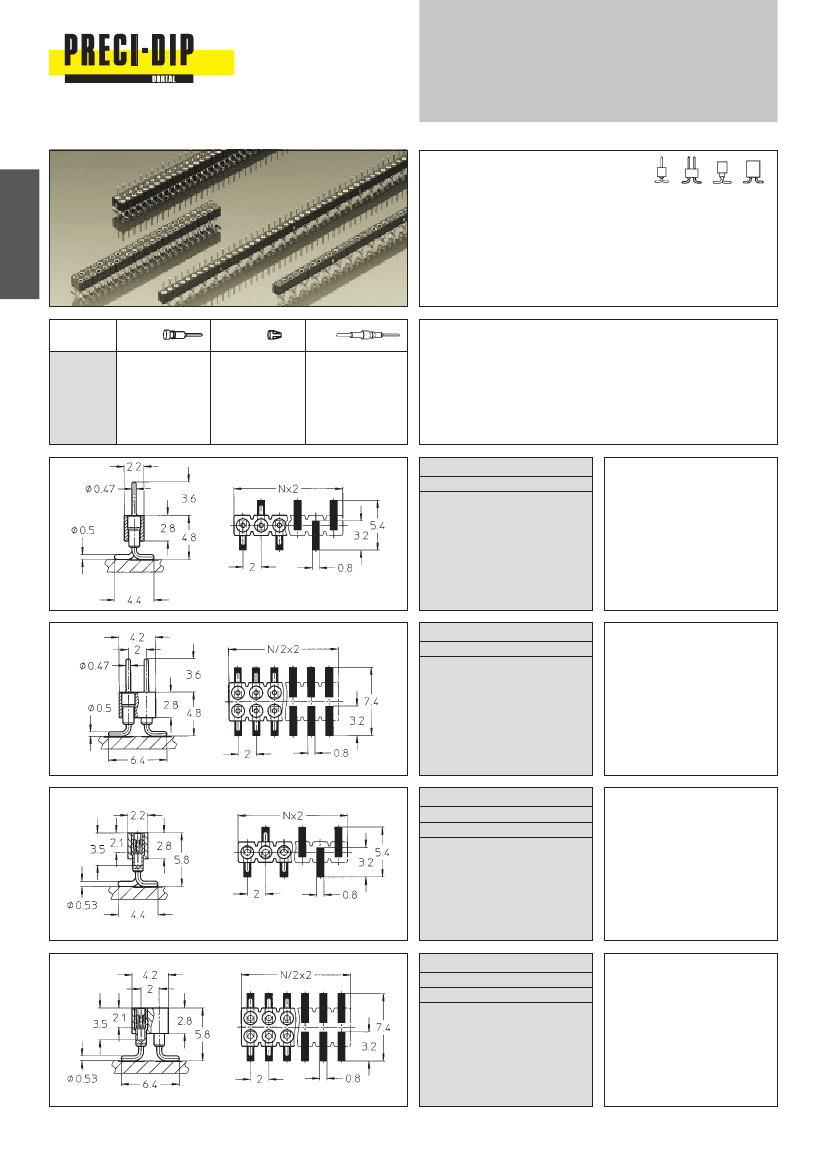

Series 830
20
PCB connectors 2.0 mm
Single row / double row
Surface mount
“Hard metric” PCB receptacles
and pin connectors, surface mount
Grid spacing 2.0
×2.0
mm
Receptacles for pins
∅
0.40–0.56 mm
Screw machined pins
∅
0.46–0.47 mm
For corresponding connectors see pages 18, 19 and 21
Platings
10
90
91
93
99
Sleeve
Clip
Pin
0.25
µm
Au
5
µm
Sn Pb
Ordering information
Replace
xxx
with the number of poles, e.g. 833-91-xxx-30-001
for a double row version with 8 pins per row becomes:
833-91-016-30-001
5
µm
Sn Pb
5
µm
Sn Pb
5
µm
Sn Pb
0.25
µm
Au
0.75
µm
Au
5
µm
Sn Pb
830-10-xxx-30-001
830-90-xxx-30-001
SMD pin connector: single row,
perpendicular mount
Availability from: 3 to 50 contacts
Standard number of contacts 50
832-10-xxx-30-001
832-90-xxx-30-001
SMD pin connector: double row,
perpendicular mount
Availability from: 4 to 100
contacts
Standard number of contacts 100
831-91-xxx-30-001
831-93-xxx-30-001
831-99-xxx-30-001
SMD receptacle: single row,
perpendicular mount
Availability from: 3 to 50 contacts
Standard number of contacts 50
833-91-xxx-30-001
833-93-xxx-30-001
833-99-xxx-30-001
SMD receptacle: double row,
perpendicular mount
Availability from: 4 to 100
contacts
Standard number of contacts 100
