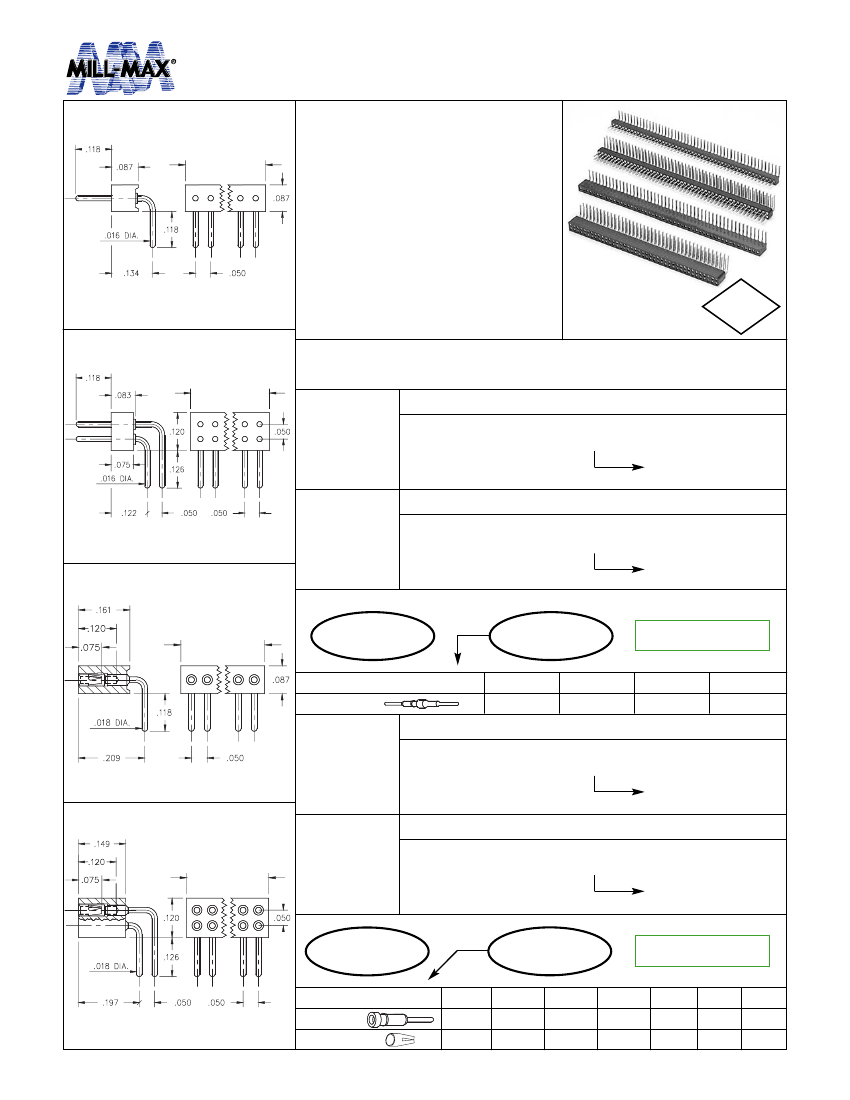

INTERCONNECTS
.050” Grid Right Angle Headers and Sockets
Single and Double Row
•
Series 850 and 851 interconnects are
Series 850, 851
852, 853
available in single and double row form.
(Number of Pins
X .050”) + .015”
•
850 & 852 series headers use MM
#4006-1 and #4006-2 pins. See page
175 details.
•
851 & 853 series sockets use MM
#4890-1 and #4890-2 receptacles, that
accept pin diameters from .015”-.021”
See page 131 for details.
Fig. 1
•
Insulators are high temp. thermoplastic.
2002/95/EC
RoHS
Ordering Information
(Number of Pins
X .050”/2) + .015”
Single Row
Right Angle Pin Header
850-XX-0_ _-20-001000
Fig. 1
Double Row
Fig. 2
Specify # of pins
01-50
Right Angle Pin Header
Fig. 2
852-XX-_ _ _-20-001000
Specify # of pins
002-100
(Number of Pins
X .050”) + .015”
For Electrical,
Mechanical & Enviromental
Data, See pg. 4
XX=Plating Code
See Below
For RoHS compliance
select
plating code.
SPECIFY PLATING CODE XX=
10
10μ” Au
90
200μ” Sn/Pb
40
200μ” Sn
Pin Plating
Single Row
Right Angle Socket
851-XX-0_ _-20-001000
Fig. 3
Fig. 3
Specify # of pins
Double Row
01-50
Right Angle Socket
(Number of Pins
X .050”/2) + .015”
Fig. 4
853-XX-_ _ _-20-001000
Specify # of pins
002-100
For RoHS compliance
select
plating code.
For Electrical,
Mechanical & Enviromental
Data, See pg. 4
XX=Plating Code
See Below
SPECIFY PLATING CODE XX=
13
10µ” Au
30µ” Au
91
10µ” Au
93
30µ” Au
99
200µ”Sn/Pb
41
10µ” Au
43
44
Fig. 4
Sleeve (Pin)
Contact (Clip)
200µ” Sn/Pb
200µ” Sn/Pb 200µ”Sn/Pb
200µ”Sn
200µ”Sn
200µ”Sn
30µ” Au
200µ”Sn
w w w. m i l l - m a x . c o m
67
516-922-6000
