85009-1093: Description2.54mm (.100) pitch din 41612 M style male header, right angle, through hole, 24 circuits, without mounting clips, No flux proof; File Size144KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

85009-1093 Overview

2.54mm (.100) pitch din 41612 M style male header, right angle, through hole, 24 circuits, without mounting clips, No flux proof

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0850091093

Active

din_41612

2.54mm (.100") Pitch DIN 41612 M Style Male Header, Right Angle, Through Hole, 24

Circuits, without Mounting Clips, No Flux Proof

Documents:

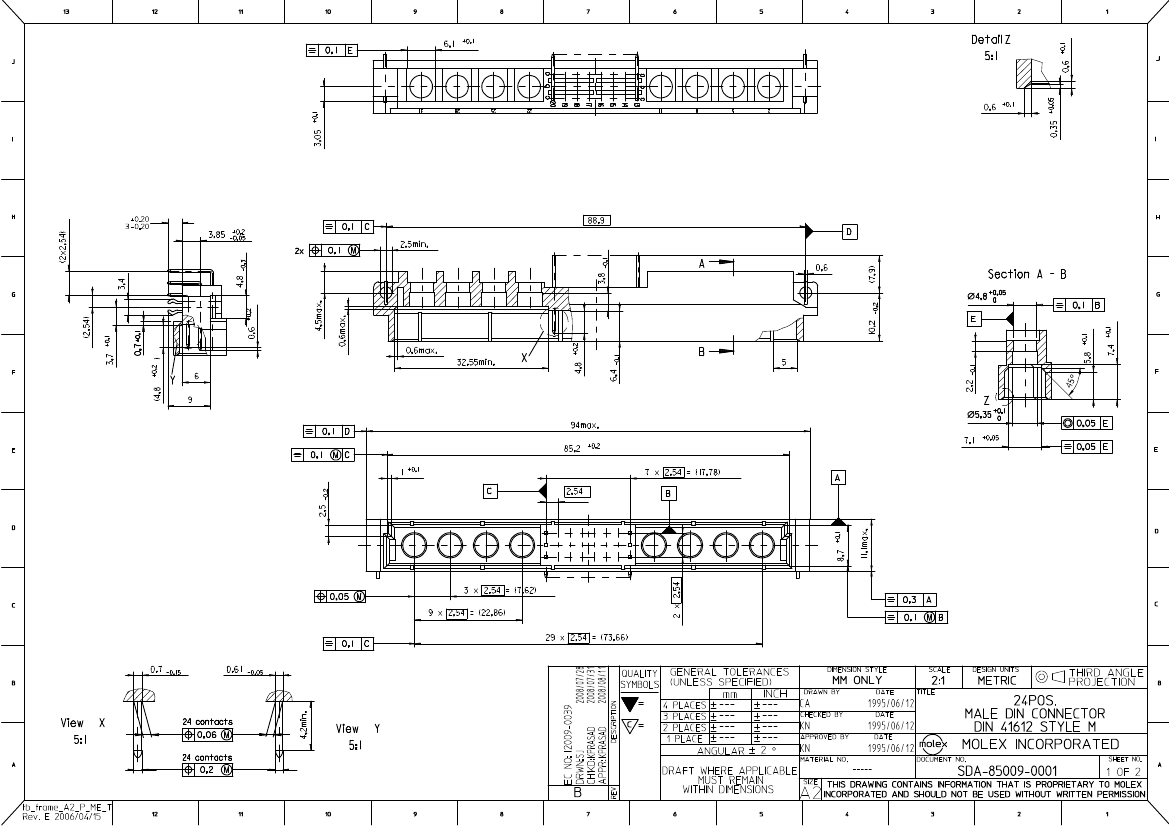

Drawing (PDF)

Product Specification PS-85003-0001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

85009

Backplane

No Mounting Clips. No Flux Proof

PCB Header

din_41612

IEC 603-2/DIN 41612

Search Parts in this Series

85009Series

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

First-Mate-Last-Break Contacts at: X:c13-c20; Y:b13-

b20; Z:a13-a20

400

Yes

94V-0

Yes

Brass

Gold

Tin

Open Pin Field

Right Angle

0.118 In

3.00 mm

Yes

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

0.60

2.5

Yes

85009-1093 Related Products

	85009-1093	0850091093
Description	2.54mm (.100) pitch din 41612 M style male header, right angle, through hole, 24 circuits, without mounting clips, No flux proof	2.54mm (.100) Pitch DIN 41612 M Style Male Header, Right Angle, Through Hole, 24 Circuits, without Mounting Clips, No Flux Proof
