This document was generated on 05/17/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0850030646
Active
din_41612
2.54mm (.100") Pitch DIN 41612 Header, Right Angle, Through Hole, Style C, 0.6µm
(24µ") Selective Gold (Au), 64 Circuits, Lead free
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Component Type
Overview
Product Name
Style
Backplane Connectors
85003
Daughtercard
PCB Header
din_41612
IEC 603-2/DIN 41612
C
Physical
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
64
96
400
Yes
94V-0
No
Yes
16
Open Pin Field
3
Right Angle
0.118 In
3.00 mm
No
Yes
0.062 In
1.60 mm
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
Yes
No
-55°C to +125°C
Through Hole
Search Parts in this Series
85003Series
Mates With
85042 , 85052 Backplane Header
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
2.5A
622.0 Mbps
250V AC (RMS)
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Process Temperature max. C
10
Wave Capable (TH only)
260
Material Info
Reference - Drawing Numbers
Packaging Specification

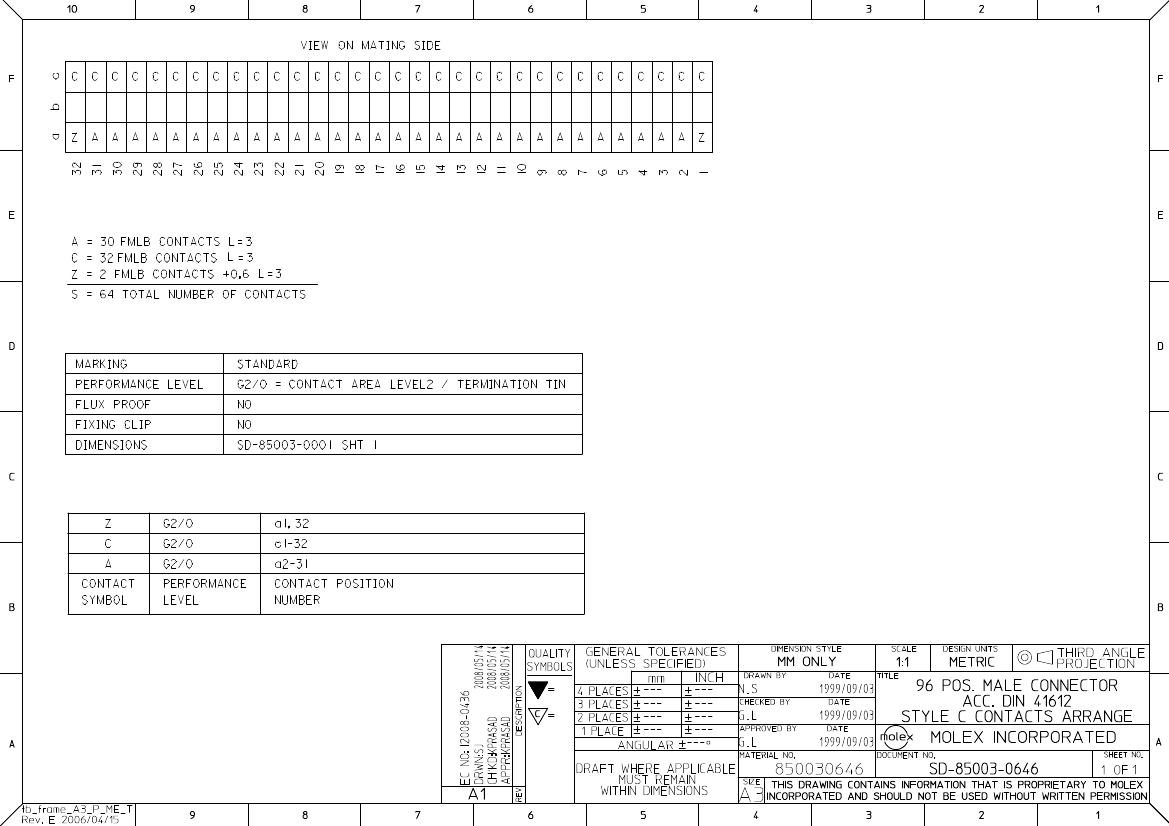

Sales Drawing
PK-85003-001
SD-85003-0646
