0878334619: Description2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 46 circuits, gold (Au) flash plating, without pcb locator, without locking window; File Size140KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

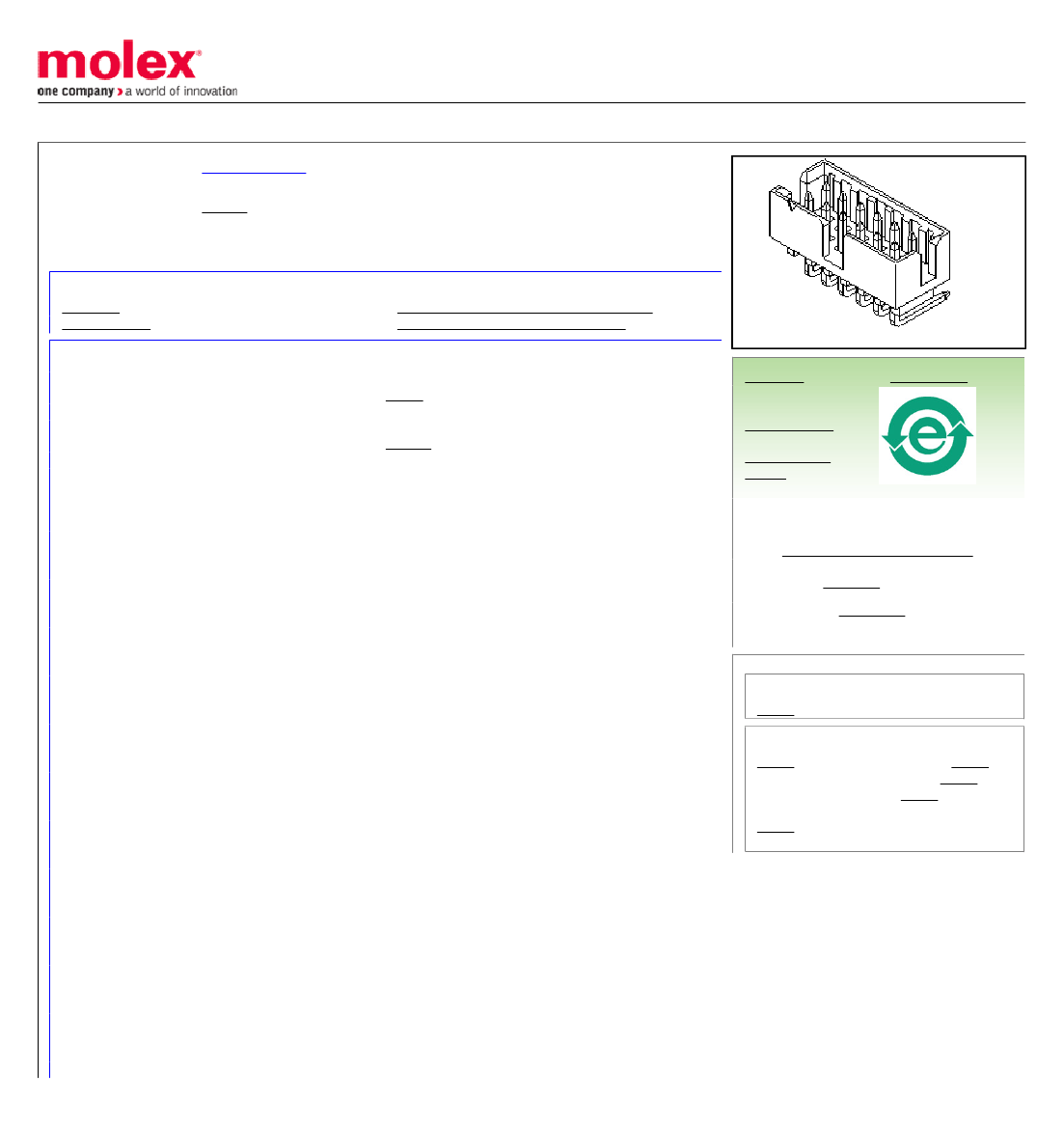

0878334619 Overview

2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 46 circuits, gold (Au) flash plating, without pcb locator, without locking window

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878330419

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Right Angle, Fully Shrouded, Lead-free, 4

Circuits, Gold (Au) Flash Plating, without PCB Locator, without Locking Window, Center

Polarization Slot, Tube

Documents:

3D Model

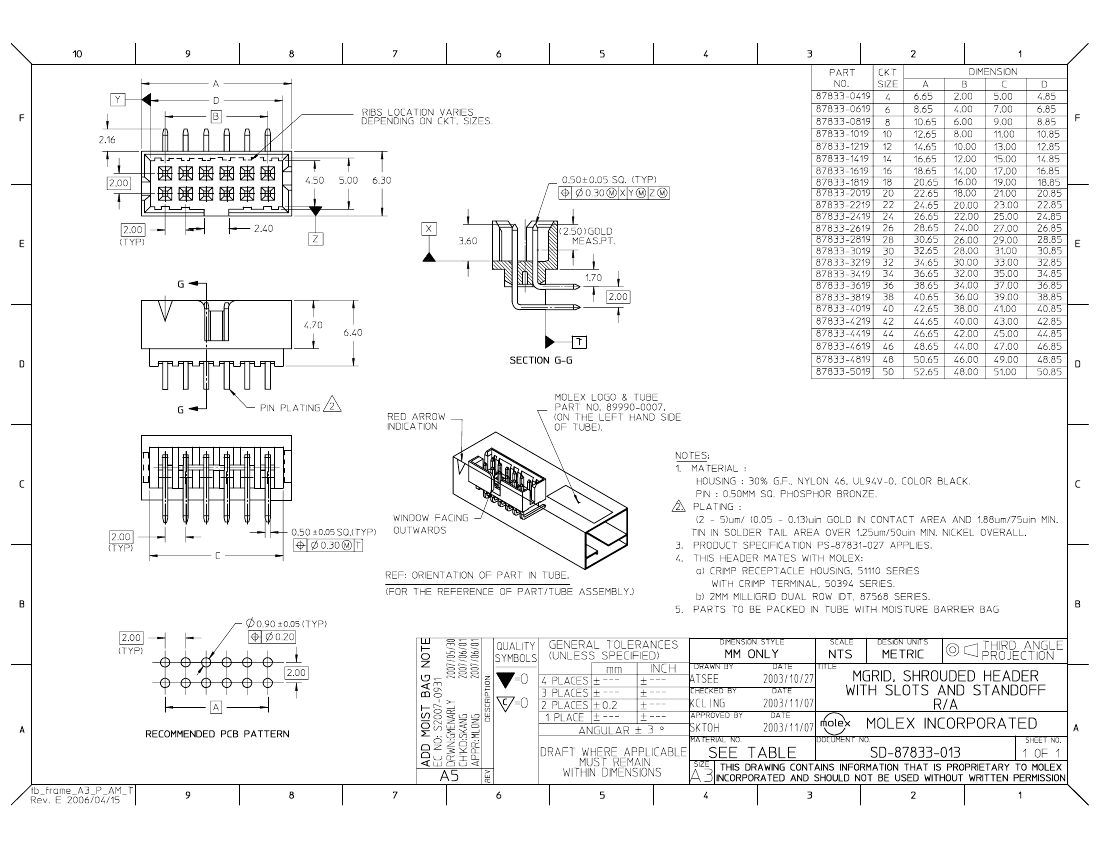

Drawing (PDF)

Product Specification PS-87831-027 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87833

Wire-to-Board

Contact Molex for application in automotive industry

milligrid

Milli-Grid™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Black

100

None

Phosphor Bronze

Gold

Tin

Nylon

Right Angle

0.085 In

2.16 mm

None

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.05

1.88

Side Slots (2)

Fully

Yes

Search Parts in this Series

87833Series

Mates With

50394 Wire-to-Board Terminals. 51110

Wire-to-Board Crimp Housing. 87568 Wire-

to-Board IDT Housings. 79107 Board-to-

Board Top Entry Through Hole Receptacle.

79108 Board-to-Board FFC/FPC Top Entry

Through Hole Receptacle. L

0878334619 Related Products

	0878334619	87833-4419	87833-4619	87833-4219	87833-3619	0878333619
Description	2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 46 circuits, gold (Au) flash plating, without pcb locator, without locking window	2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 44 circuits, gold (Au) flash plating, without pcb locator, without locking window	2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 46 circuits, gold (Au) flash plating, without pcb locator, without locking window	2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 42 circuits, gold (Au) flash plating, without pcb locator, without locking window	2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 36 circuits, gold (Au) flash plating, without pcb locator, without locking window	2.00mm (.079) pitch milli-grid? header, right angle, fully shrouded, lead-free, 36 circuits, gold (Au) flash plating, without pcb locator, without locking window
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	-
Reach Compliance Code	-	compliant	compli	compliant	compli	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	-
Other features	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-
body width	-	0.248 inch	0.248 inch	0.248 inch	0.248 inch	-
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Connector type	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Contact completed and terminated	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-
Contact point gender	-	MALE	MALE	MALE	MALE	-
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
DIN compliance	-	NO	NO	NO	NO	-
Filter function	-	NO	NO	NO	NO	-
IEC compliance	-	NO	NO	NO	NO	-
Insulation resistance	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-
Insulator color	-	BLACK	BLACK	BLACK	BLACK	-
insulator material	-	NYLON	NYLON	NYLON	NYLON	-
MIL compliance	-	NO	NO	NO	NO	-
Manufacturer's serial number	-	87833	87833	87833	87833	-
Plug contact pitch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-
Match contact row spacing	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	-
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	-	NO	NO	NO	NO	-
Installation option 1	-	LOCKING	LOCKING	LOCKING	LOCKING	-
Installation method	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	-	BOARD	BOARD	BOARD	BOARD	-
Number of connectors	-	ONE	ONE	ONE	ONE	-
PCB row number	-	2	2	2	2	-
Number of rows loaded	-	2	2	2	2	-
Maximum operating temperature	-	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C	-
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	-	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	-
Rated current (signal)	-	2 A	2 A	2 A	2 A	-
Guideline	-	UL	UL	UL	UL	-
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal pitch	-	2 mm	2 mm	2 mm	2 mm	-
Termination type	-	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	-	44	46	42	36	-
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	-
Base Number Matches	-	1	1	1	1	-
