8581180000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> 8581180000

8581180000: Descriptioncond sgnl 35/32 J/K/T/E/N/R/S/B; CategoryThe sensor; File Size65KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

8581180000 Overview

cond sgnl 35/32 J/K/T/E/N/R/S/B

8581180000 Parametric

Parameter Name	Attribute value
Datasheets
8581180000
Standard Package	1
Category	Sensors, Transducers
Family	Accessories

Preview

Download Datasheet

View All

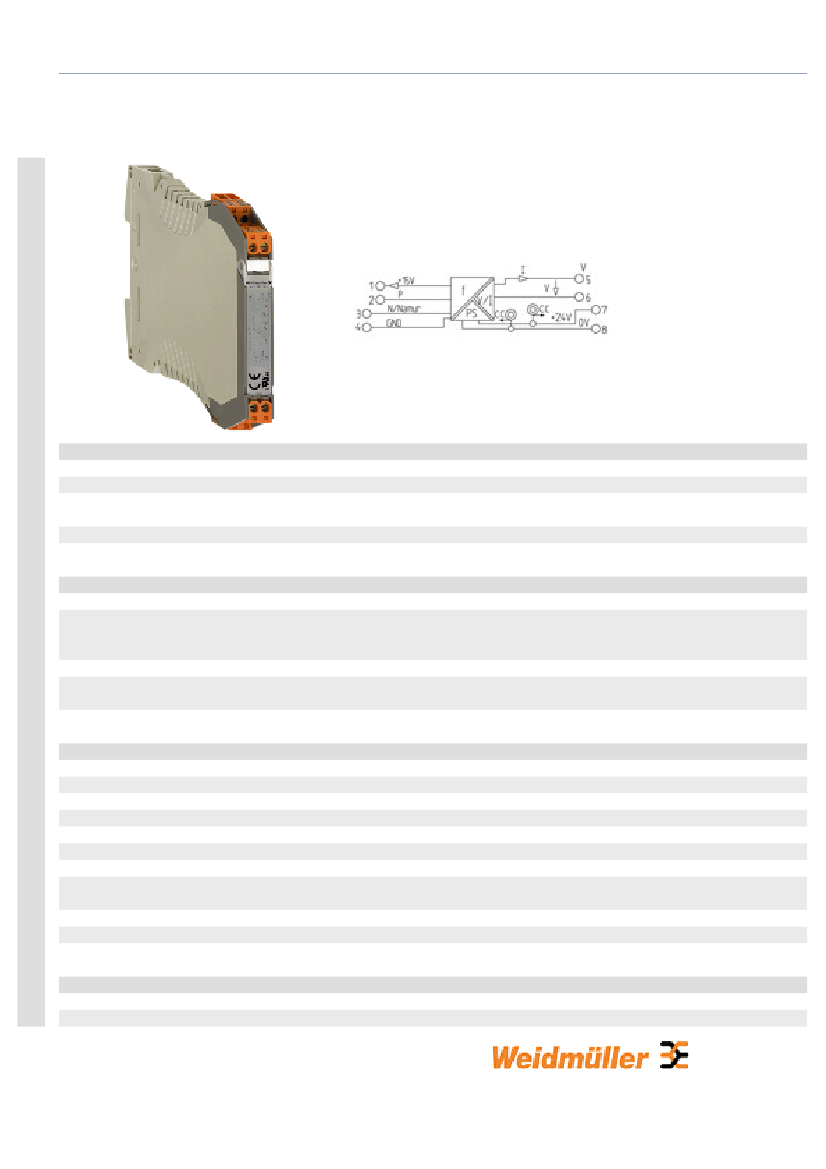

Product catalogue | Electronics | Analogue signal conditioning | Frequency signal isolator/converter | f/DC isolating

transformer

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Input

Max. voltage

Rated input level

Input frequency

Sensor

Number of inputs

Output

Output voltage

Output current

Load resistance, voltage

Load resistance, current

Accuracy

Offset voltage

Offset current

Step response time

Status indicator

Temperature coefficient

Number of outputs

General data

Function

Input/Output

8581180000

WAS4 PRO Freq

Frequency signal converter, 0...10 V , 0(4)...20

mA , Screw connection

4032248234486

1 pc(s).

NPN Input: + 30 V / PNP Input: ± 30 V

Threshold/hysteresis: Namur: approx. 1.7 mA/

approx. 0.2 mA;NPN: approx. 6.5 V/approx. 0.2 V;

PNP: approx. 6,7 V/approx. 0.5 V

0...100 kHz

2-, 3-wire PNP/NPN, Namur initiator, push-pull

step

0...10 V

0(4)...20 mA

≥ 1 kΩ

≤ 600 Ω

0.2% of output range

max. 0.05 V

Max. 100 µA

360 ms + 2 times the period time of input

frequency

Green LED

Max. 200 ppm/K of output range

Frequency signal converter

Configurable

-1-
