84134850 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 84134850

84134850: Descriptionssr ip00 DC 10a/200vdc DC input; CategoryLED optoelectronic/LED photoelectric; File Size678KB，5 Pages; ManufacturerCrouzet

Download Datasheet Parametric Compare View All

84134850 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84134850	-	-	View	Buy Now

84134850 Overview

ssr ip00 DC 10a/200vdc DC input

84134850 Parametric

Parameter Name	Attribute value
Maker	Crouzet
Reach Compliance Code	unknown
control current	0.012 A
control voltage	3 V
input type	DC
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Output circuit type	MOSFET
total length	57.1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

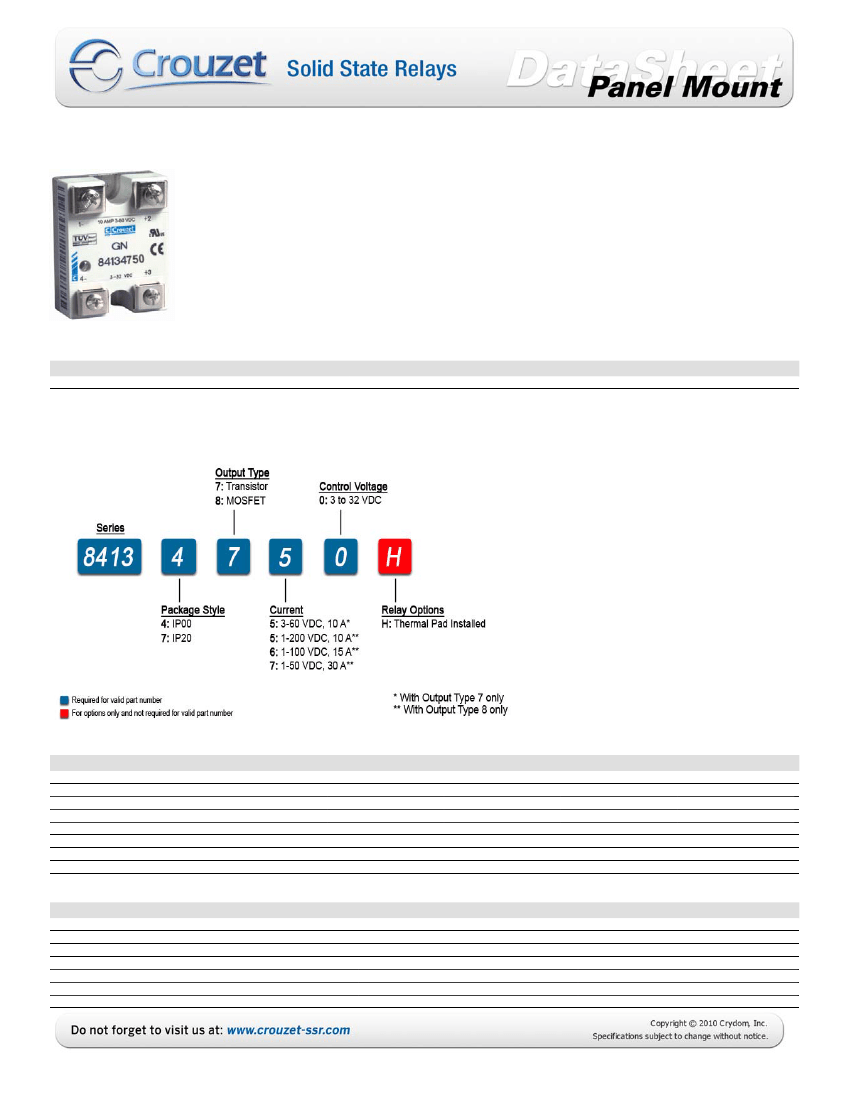

GN DC Series

• Output current ratings of 10, 15 and 30 amps

• Output voltage 3-60, 1-50, 1-100 and 1-200 VDC

• 3-32VDC control

• cUL/TUV Approved, CE & RoHS Compliant

PRODUCT SELECTION

Control Voltage

3-32 VDC

10A

84134750

10A

84134850

15A

84134860

30A

84134870

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage Range [Vdc]

Maximum Load Current [Adc]

Minimum Load Current [mAdc]

Maximum Off-State Leakage Current [mAdc]

Maximum 1 sec Surge Current

Maximum On-State Voltage Drop @ Rated Current

Maximum On-State Resistance [Ohms]

Thermal Resistance Junction to Baseplate [°C/W]

84134750

3-60

1.0

1.6

n/a

4.3

84134850

1-200

0.1

0.01

n/a

0.09

4.4

84134860

1-100

0.1

0.01

120

n/a

0.09

4.6

84134870

1-50

0.1

0.01

180

n/a

0.09

2.3

INPUT SPECIFICATIONS (1)

Description

Input Voltage Range (5)

Minimum Turn-On Voltage

Drop out Voltage

Maximum Input Current

Minimum input current (for on-state)

Turn-on time [ms]

Turn-off time [µs]

84134750

3-32 VDC

3.0 VDC

1.0 VDC

14.5mA

9mA

0.1

200

841348xx

3-32 VDC

3.0 VDC

1.0 VDC

20mA

12mA

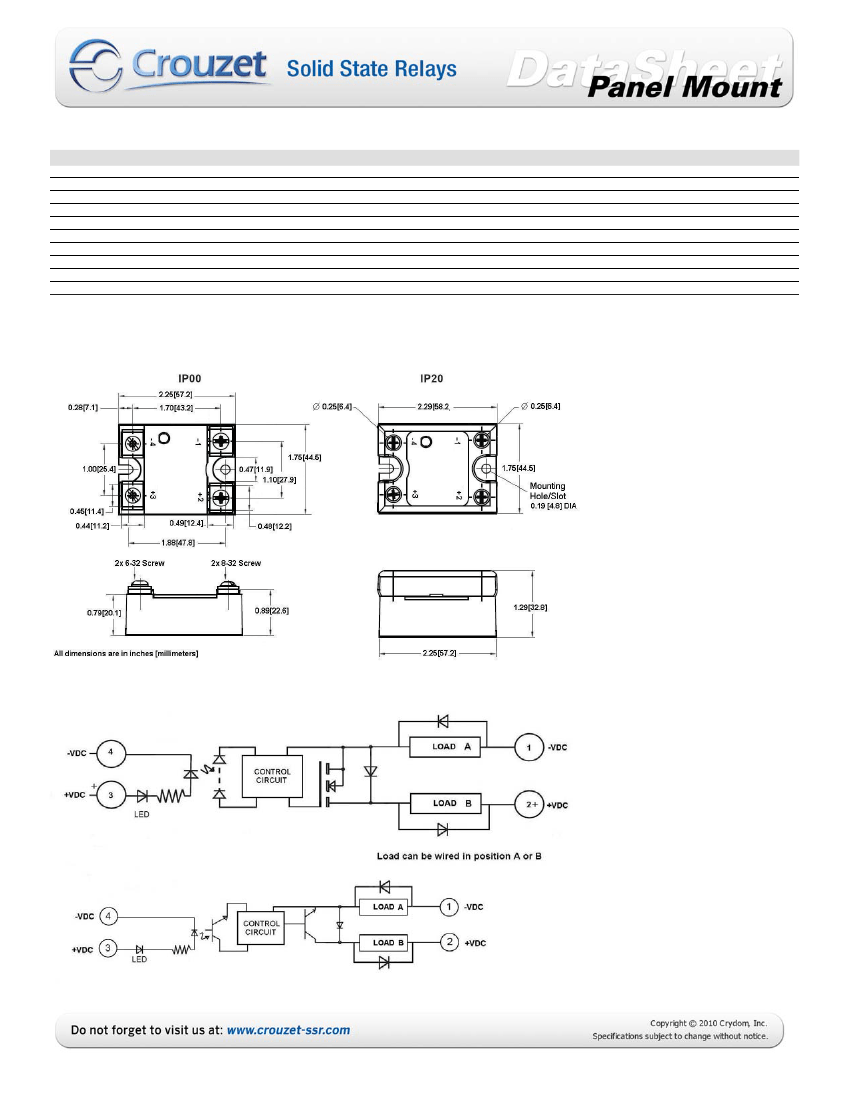

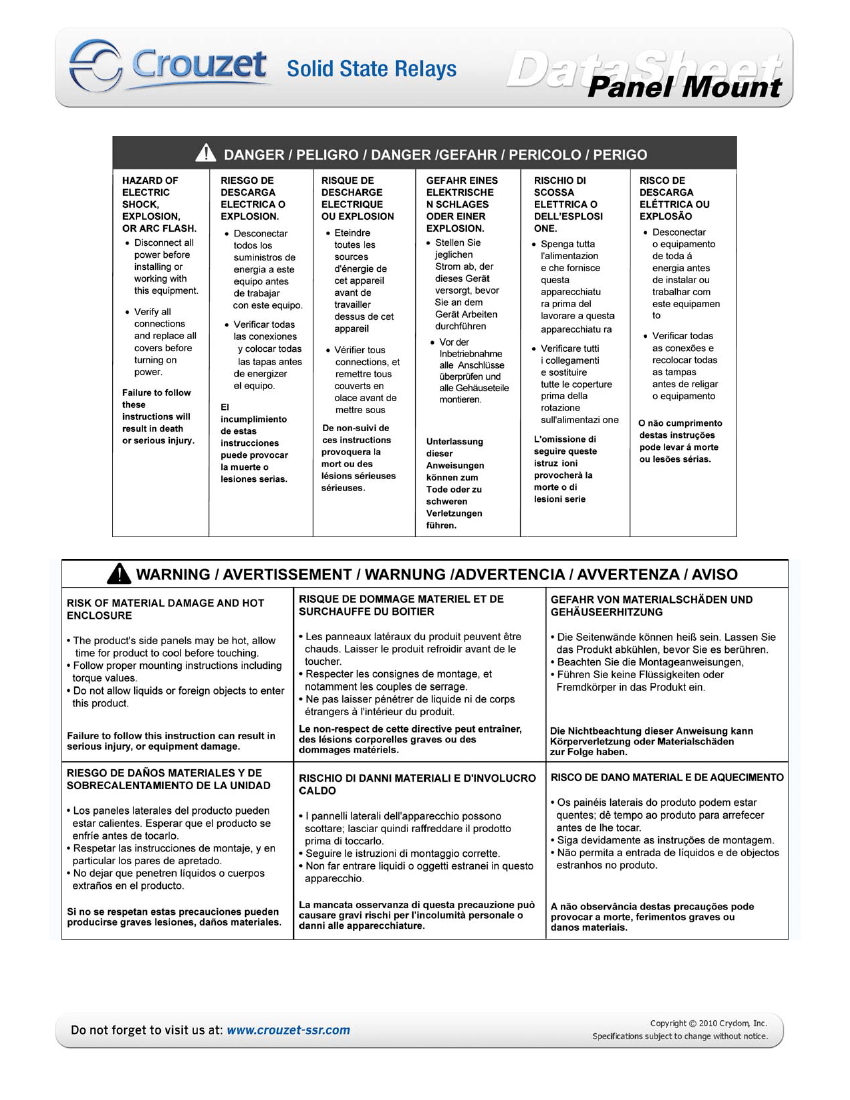

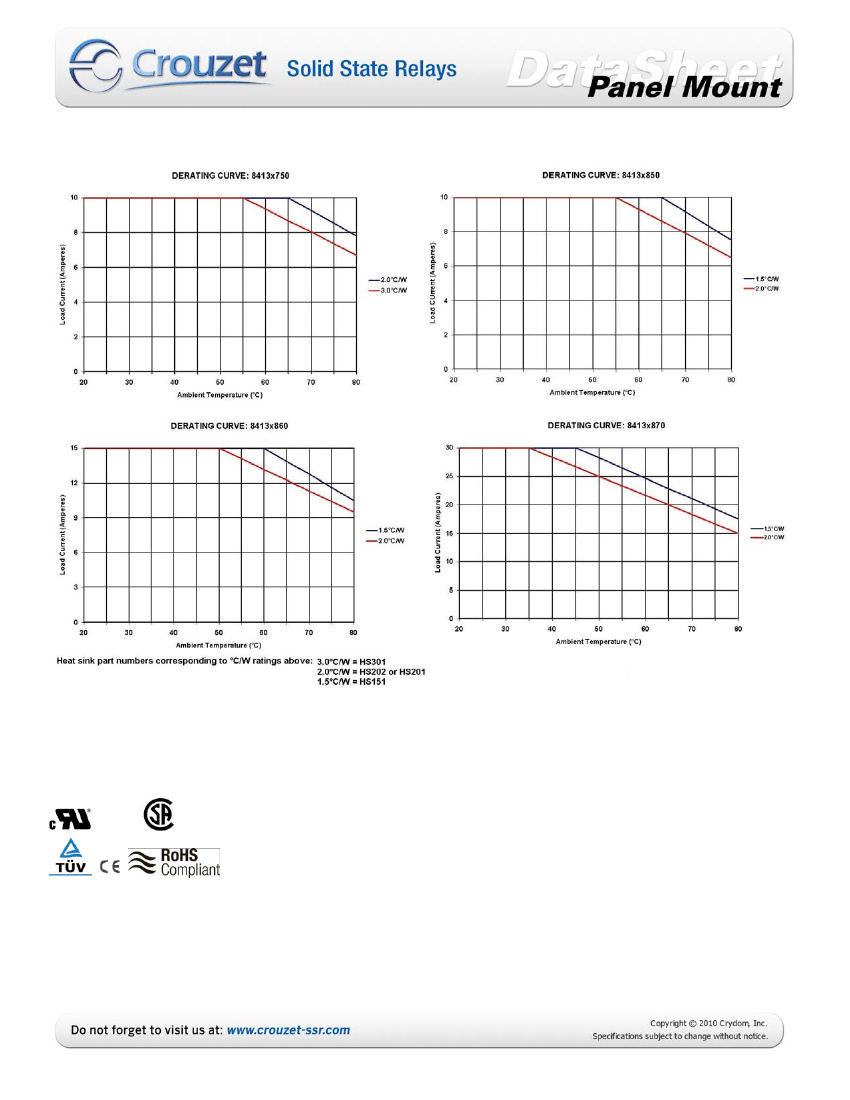

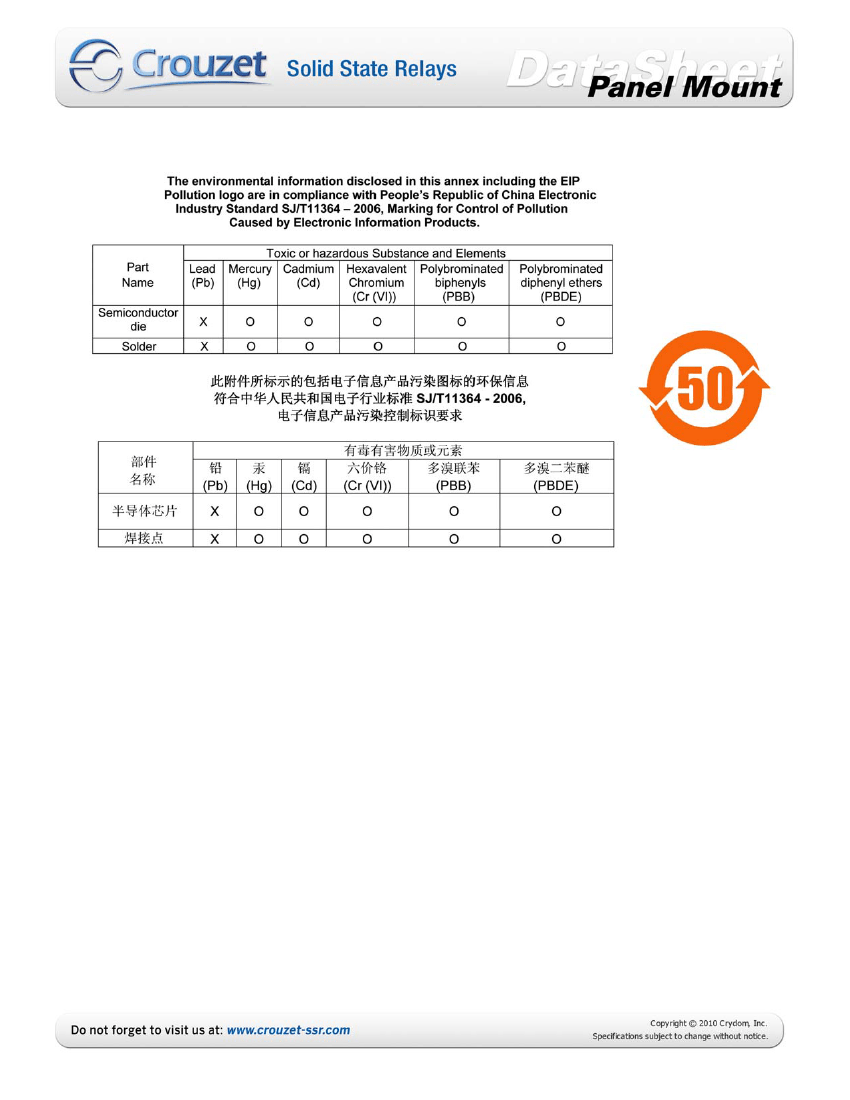

84134850 Related Products

	84134850	84137860	84137850	84137870	84134850H	84137750	84137850H	84134860H	84134750H	84134870H
Description	ssr ip00 DC 10a/200vdc DC input	ssr GN ip20 DC 15a/100vdc	ssr GN ip20 DC 10a/200vdc	ssr GN ip20 DC 30a/50vdc	Transistor Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT PACKAGE-4	solid state relays - industrial mount 10a/60vdc DC In xstr	Transistor Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT PACKAGE-4	Transistor Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT PACKAGE-4	Transistor Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT PACKAGE-4	Transistor Output SSR, 1-Channel, 4000V Isolation, ROHS COMPLIANT PACKAGE-4
Maker	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-40 °C	-20 °C	-40 °C	-20 °C	-40 °C	-40 °C	-40 °C	-40 °C
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Is it lead-free?	-	-	Lead free	-	Lead free	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	-	conform to	-	conform to	-	conform to	conform to	conform to	conform to
package instruction	-	-	ROHS COMPLIANT PACKAGE-4	-	ROHS COMPLIANT PACKAGE-4	-	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4	ROHS COMPLIANT PACKAGE-4
Other features	-	-	UL RECOGNIZED	-	UL APPROVED	-	UL RECOGNIZED	UL APPROVED	UL APPROVED	UL APPROVED
Configuration	-	-	COMPLEX	-	COMPLEX	-	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Maximum insulation voltage	-	-	4000 V	-	4000 V	-	4000 V	4000 V	4000 V	4000 V
Number of components	-	-	1	-	1	-	1	1	1	1
Maximum on-state current	-	-	10 A	-	10 A	-	10 A	15 A	10 A	30 A
Optoelectronic device types	-	-	TRANSISTOR OUTPUT SSR	-	TRANSISTOR OUTPUT SSR	-	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
