87130-1600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87130-1600

87130-1600: Description2.50mm (.098) pitch cable holder, for discrete wire, flat cable and ribbon cable 16 circuits; CategoryThe connector The connector; File Size110KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87130-1600 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87130-1600	-	-	View	Buy Now

87130-1600 Overview

2.50mm (.098) pitch cable holder, for discrete wire, flat cable and ribbon cable 16 circuits

87130-1600 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87130
Plug information	RIBBON CABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	WIRE TRAP
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0871301800

Active

2.50mm (.098") Pitch Cable Holder, for Discrete Wire, Flat Cable and Ribbon Cable 18

Circuits

Documents:

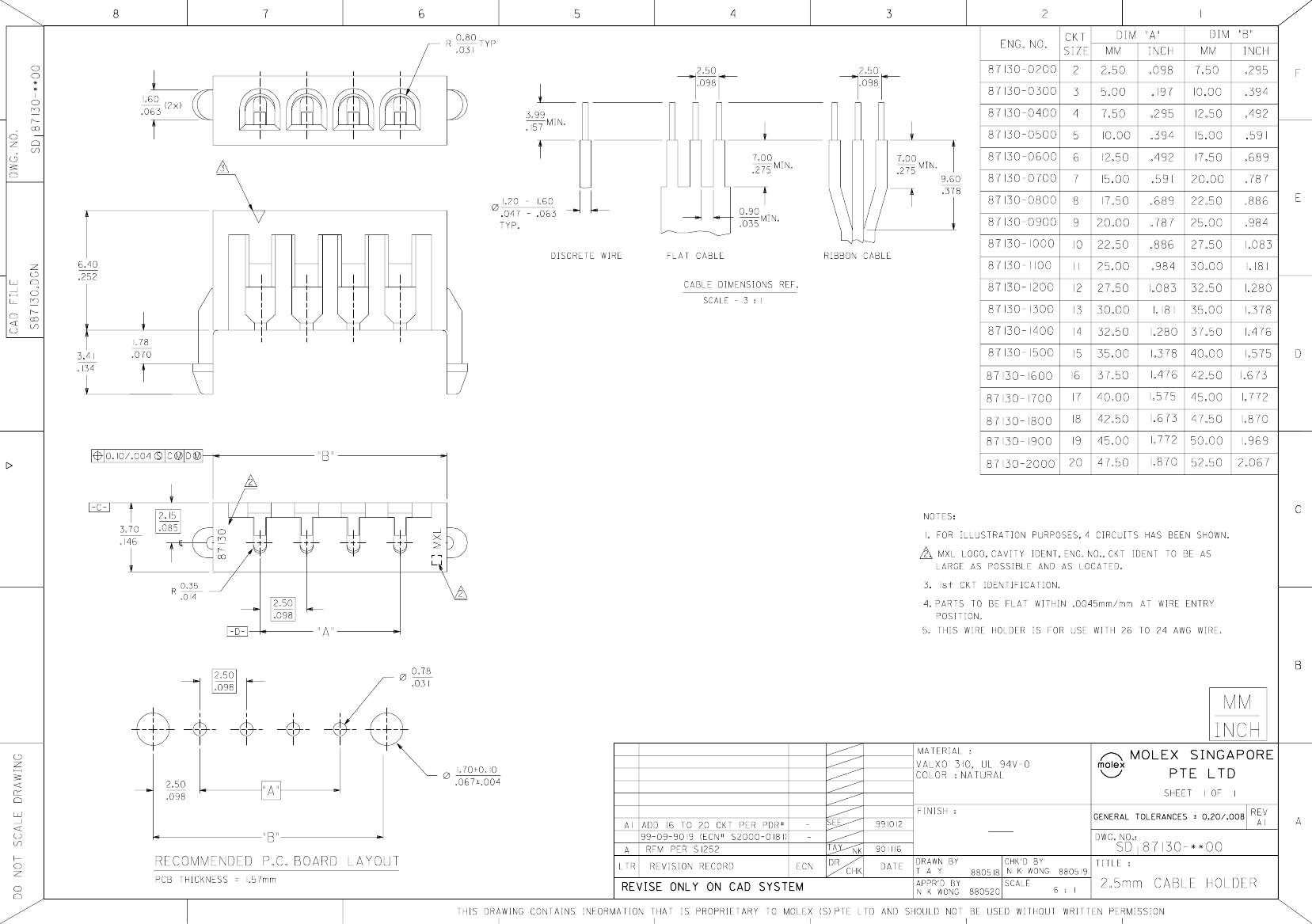

3D Model

Drawing (PDF)

Product Specification PS-87130-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

General

Product Family

Series

Component Type

Glow-Wire Compliant

Product Name

Ribbon Cable / Wire Trap Connectors

87130

One Piece

Board-In, Cable Holder

Physical

Circuits (Loaded)

Circuits (maximum)

Entry Angle

Flammability

Lock to Mating Part

Number of Rows

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Vertical

94V-0

None

Yes

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

0.098 In

2.50 mm

Yes

Fully

-25°C to +85°C

1.60mm (.063") max.

24, 26

Discrete Wire, Ribbon Cable

Search Parts in this Series

87130Series

Mates With

N/A

Use With

Discrete Wire, Flat Cable, or Ribbon Cable

Electrical

Current - Maximum per Contact

Voltage - Maximum

125V

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-87130-001

SD-87130-**00

87130-1600 Related Products

	87130-1600	0871301800	87130-1800	87130-1400	87130-1300	87130-1500	87130-2000
Description	2.50mm (.098) pitch cable holder, for discrete wire, flat cable and ribbon cable 16 circuits	2.50mm (.098) Pitch Cable Holder, for Discrete Wire, Flat Cable and Ribbon Cable 18 Circuits	2.50mm (.098) pitch cable holder, for discrete wire, flat cable and ribbon cable 18 circuits	2.50mm (.098) pitch cable holder, for discrete wire, flat cable and ribbon cable 14 circuits	2.50mm (.098") pitch cable holder, for discrete wire, flat cable and ribbon cable 13 circuits	2.50mm (.098) pitch cable holder, for discrete wire, flat cable and ribbon cable 15 circuits	2.50mm (.098) pitch cable holder, for discrete wire, flat cable and ribbon cable 20 circuits
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to
Maker	Molex	-	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknow	-	unknow	unknow	compli	compli	compli
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	-	NO	NO	NO	NO	NO
Filter function	NO	-	NO	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO
MIL compliance	NO	-	NO	NO	NO	NO	NO
Manufacturer's serial number	87130	-	87130	87130	87130	87130	87130
Plug information	RIBBON CABLE	-	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE
Mixed contacts	NO	-	NO	NO	NO	NO	NO
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	-	1	1	1	1	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	-	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	WIRE TRAP	-	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP	WIRE TRAP
Total number of contacts	16	-	18	14	13	15	20
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0	94V-0
