87715-6103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87715-6103

87715-6103: Descriptionpci express / pci connector pci express edgecard 64ckt ny66 hsgblack; CategoryThe connector The connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87715-6103 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87715-6103	-	-	View	Buy Now

87715-6103 Overview

pci express / pci connector pci express edgecard 64ckt ny66 hsgblack

87715-6103 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknow
Other features	PANEL MOUNTABLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	87715
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 11/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

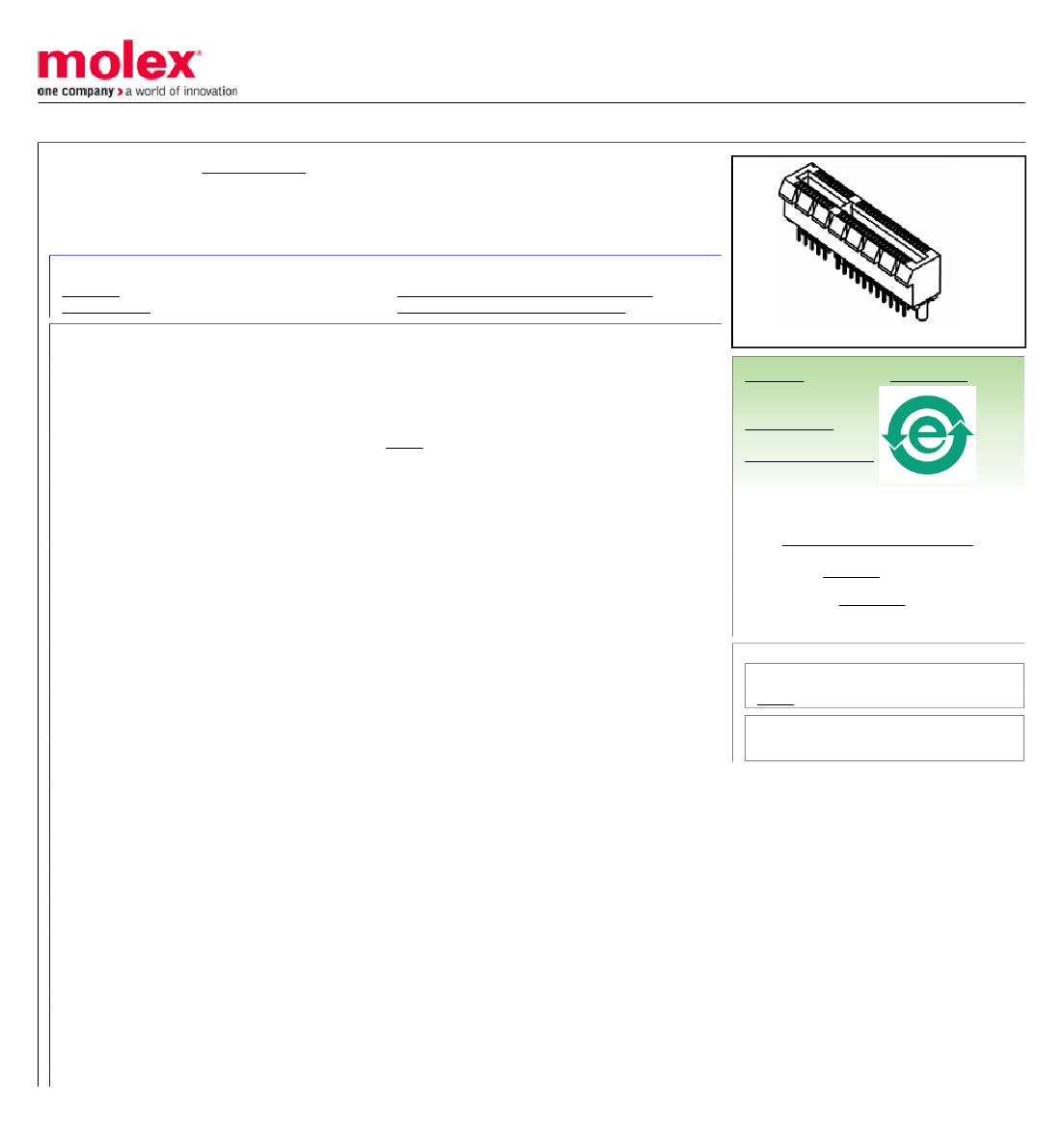

0877156103

Planned for Obsolescence

1.00mm (.039") Pitch, PCI Express* Connector, 64 Circuits, Nylon 6/6 Glass-filled,

Black Housing, Phosphor Bronze, Gold (Au) Flash, with Plastic Pegs, 3.00mm (.118")

Soldertail, Lead Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87715-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Agency Certification

CSA

General

Product Family

Series

Comments

Component Type

Product Name

Edge Card Connectors

87715

PCI 4 lanes

Edgecard to PCB

PCI Express*

Physical

(p)ower-(s)ignal Configuration

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Entry Angle

Flammability

Keying to Mating Part

Material - Plating Mating

Material - Plating Termination

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Temperature Range - Operating

Termination Interface: Style

64s - 0p

Vertical (Top Entry)

94V-0

Yes

Gold

Tin

3.00mm (.118")

Yes

2.40mm (.094")

Tray

1.00mm (.039")

Yes

-55°C to +85°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87715Series

Mates With

PCI Express Card

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.1A

50V AC (RMS)/DC

Solder Process Data

Lead-free Process Capability

Process Temperature max. C

Wave Capable (TH only)

245

Material Info

Country of Origin

CN, MY

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-87715-207

PS-87715-200

SD-87715-207

Recommended Resources

PW2211 application circuit diagram

Electrical schematic circuit diagram of M5080 track-seeking grinder (1)

"Big Brother" 9900 automatic charger and discharger

Inverter circuit 22

Computer motherboard circuit diagram 810 1_32

Technical solution: DC current signal isolation amplifier: ISO EMM series DC current signal isolation amplifier products adopt low-cost, small-volume (SIP 8Pin) design solutions, which are very convenient to use. They are free of zero-point shunting and gain ...; szybbfcu Power technology

Give feedback on Lingdong Micro's MM32F013x library functions and routines: I am going to use the CAN bus recently. I have three boards with CAN transceiver PHY, a TMS320F28377S LAUNCH, a GD32VF103V EVAL, and a MM32 eMiniBoard. I remember that I had a small board with CAN PHY...; littleshrimp Domestic Chip Exchange

FFT C language program!: /**************************************************************//* *//*fft.c *//* *//**************************************************************//*Fast Fourier Transform (FFT).Using 8 points, takes...; gaoxiao Microcontroller MCU

Does anyone know of a good courier company?: I want to mail a board to a friend, but I can't find a suitable one with good price and decent service. Does anyone have any recommendations?...; clark Talking

Serial communication programming problem: I have a question. I have written the driver for my serial port 1 under uclinux and transplanted it to 44b0. The serial port 0 has its own driver. Now the problem is, I can't figure out how to connect...; lxchina Embedded System

Please tell me about data verification method: I'm decoding a set of data recently, and the data checksum is the last two bytes. Can you help me think about what calculation methods are generally used for two-byte checks? For example, there is a d...; 眼大5子 MCU
