87679-0003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 87679-0003

87679-0003: DescriptionI/O connector straddle mnt plg 22p serial ata lead-free; CategoryThe connector; File Size31KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87679-0003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87679-0003	-	-	View	Buy Now

87679-0003 Overview

I/O connector straddle mnt plg 22p serial ata lead-free

87679-0003 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	I/O connector
RoHS	yes
Number of locations/contacts	22
Pitch	1.27 mm
Contact plating	Gold
Contact material	Copper Alloy
Type	Male
Current rating	1.5 A
Installation style	Wire
Termination type	Solder Pi
color	Black
Shell material	Liquid Crystal Polyme
Insulation resistance	1000 M Ohms
Installation angle	Righ
range of working temperature	- 55 C to + 85 C
Encapsulation	Tray

Preview

Download Datasheet

View All

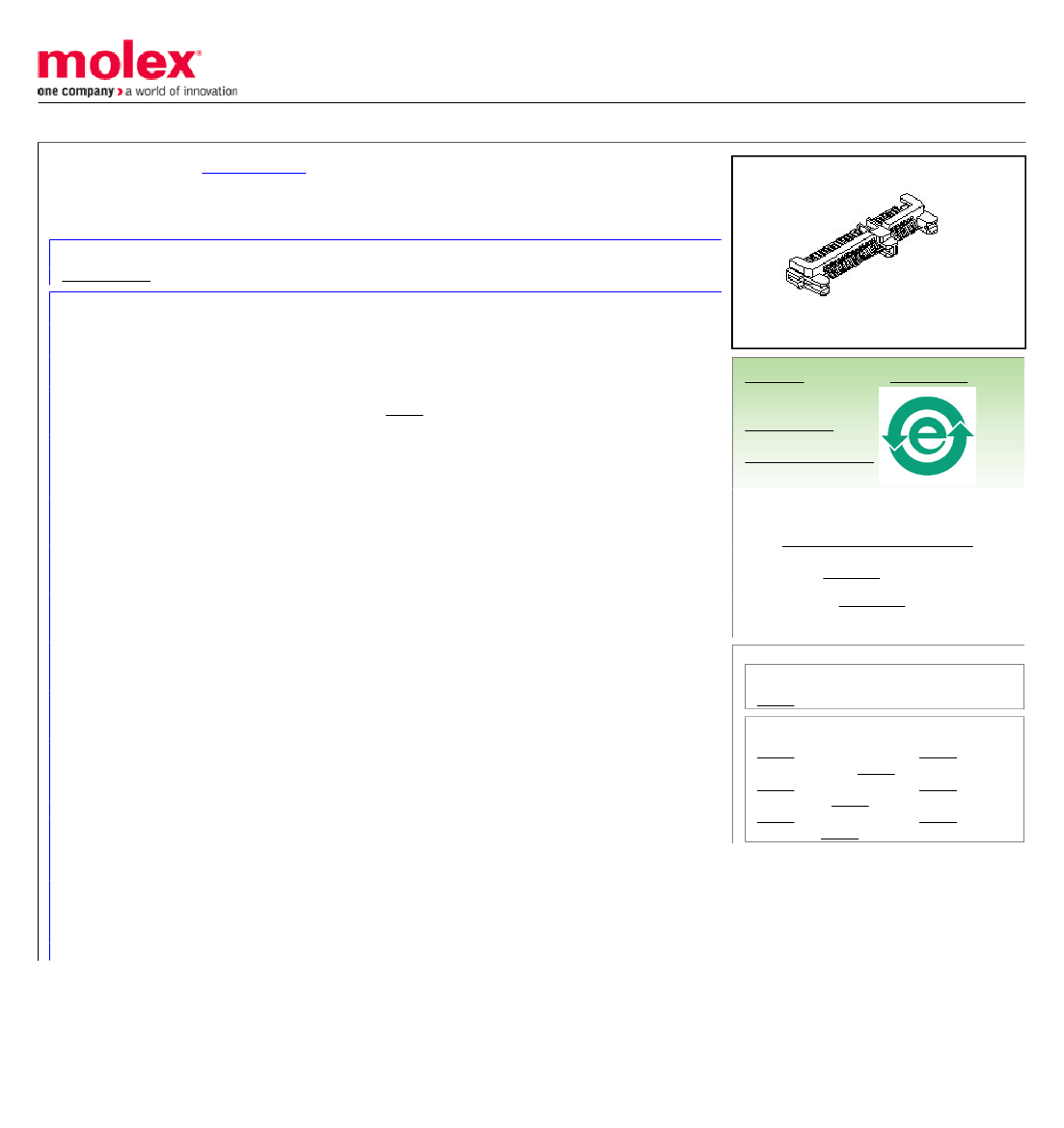

This document was generated on 11/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0876790003

Obsolete

1.27mm (.050") Pitch Serial ATA Device Plug, Straddle Mount, 22 Circuits, with Latch,

Tin (Sn) PC Tail Plating

Documents:

Drawing (PDF)

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

Series

General

Product Family

Series

Application

Comments

Product Name

PCB Headers

87679

Board-to-Board, Signal

With Latching

Serial ATA

Physical

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Shrouded

Surface Mount Compatible (SMC)

Temperature Range - Operating

500

94V-0

Right Angle

Yes

None

1.00mm (.039")

Tray

1.27mm (.050")

Yes

Partial

Yes

-40°C to +105°C

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87679Series

Mates With

87678 Combo Receptacle, 67489 Signal

Cable recptacle, 87713 Combo Receptacle,

87779 Combo Receptacle, 87780 Combo

Receptacle, 67492 Combo Receptacle,

87781 Combo Receptacle, 88755 Cable

assembly, 87701 C

Electrical

Current - Maximum per Contact

Voltage - Maximum

1.5A

30V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Reflow Capable (SMT only)

245

Material Info

Country of Origin

HK, SG

This document was generated on 11/17/2010
