87834-1021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87834-1021

87834-1021: Description2.54mm (.100) pitch C-grid? header, dual row, low profile, vertical, shrouded, pcb locators, with end windows, 0.13??m (5??) gold (Au) flash plating, nylon housing; CategoryThe connector The connector; File Size127KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87834-1021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87834-1021	-	-	View	Buy Now

87834-1021 Overview

2.54mm (.100) pitch C-grid? header, dual row, low profile, vertical, shrouded, pcb locators, with end windows, 0.13??m (5??) gold (Au) flash plating, nylon housing

87834-1021 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLARIZED
Board mount options	PEG
body width	0.35 inch
subject depth	0.365 inch
body length	0.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	900VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	12000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	87834
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	5u inch
polarization key	ENDS
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878340621

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid® Header, Dual Row, Low Profile, Vertical, Shrouded, PCB

Locators, with End Windows, 0.13µm (5µ) Gold (Au) Flash Plating, Nylon Housing, 6

Circuits, Lead-free

Documents:

3D Model

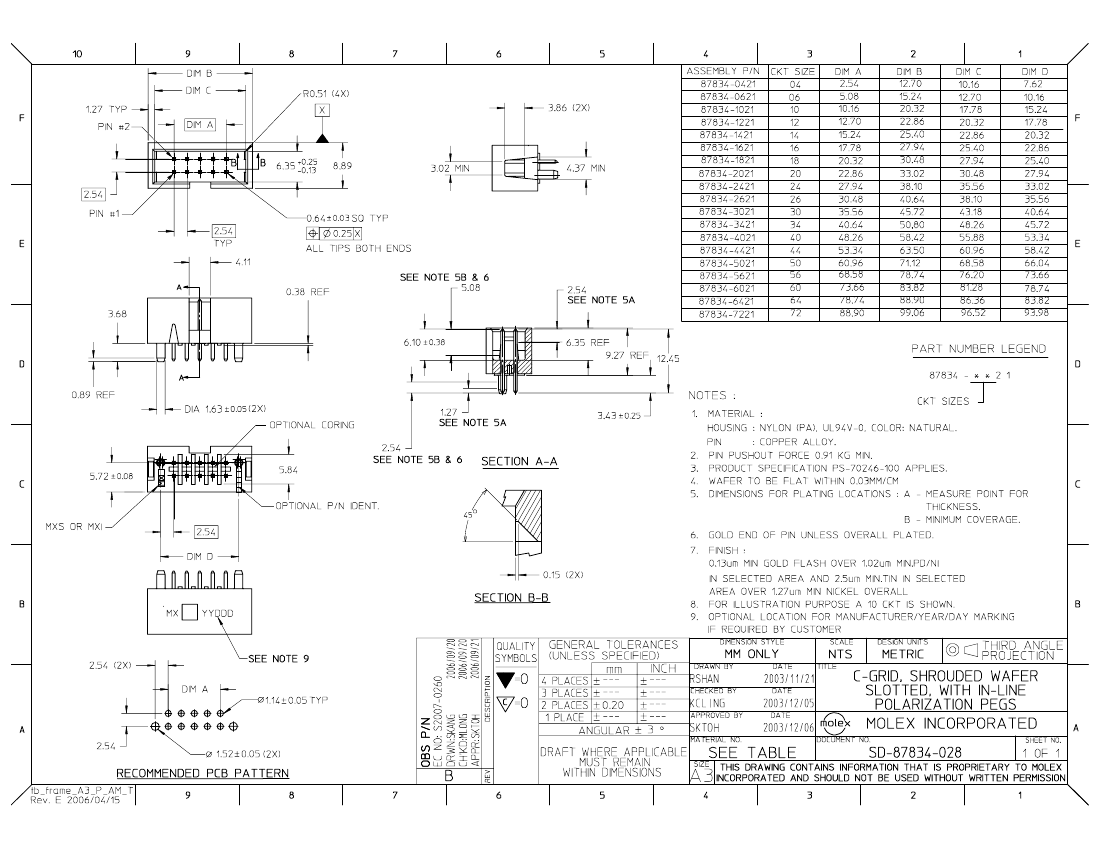

Drawing (PDF)

Product Specification PS-70246-100 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

E29179

General

Product Family

Series

Application

Overview

Product Name

PCB Headers

87834

Wire-to-Board

cgrid__sl_products

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Yes

Gold

Tin

Nylon

Vertical

0.135 In

3.43 mm

Yes

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

5.2

0.13

75.2

1.88

Center Slot

Yes

Fully

-55°C to +120°C

Through Hole

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87834Series

Mates With

.050" pitch ribbon cable connectors
