Part Number:
Status:
Overview:
Description:
0878341417
Active
cgrid__sl_products
2.54mm (.100") Pitch C-Grid® Header, Dual Row, Low Profile, Vertical, Shrouded,
without PCB Locator, without End Window, Gold (Au) Flash, Polyester Housing, 14
Circuits, Lead-free
Documents:
3D Model

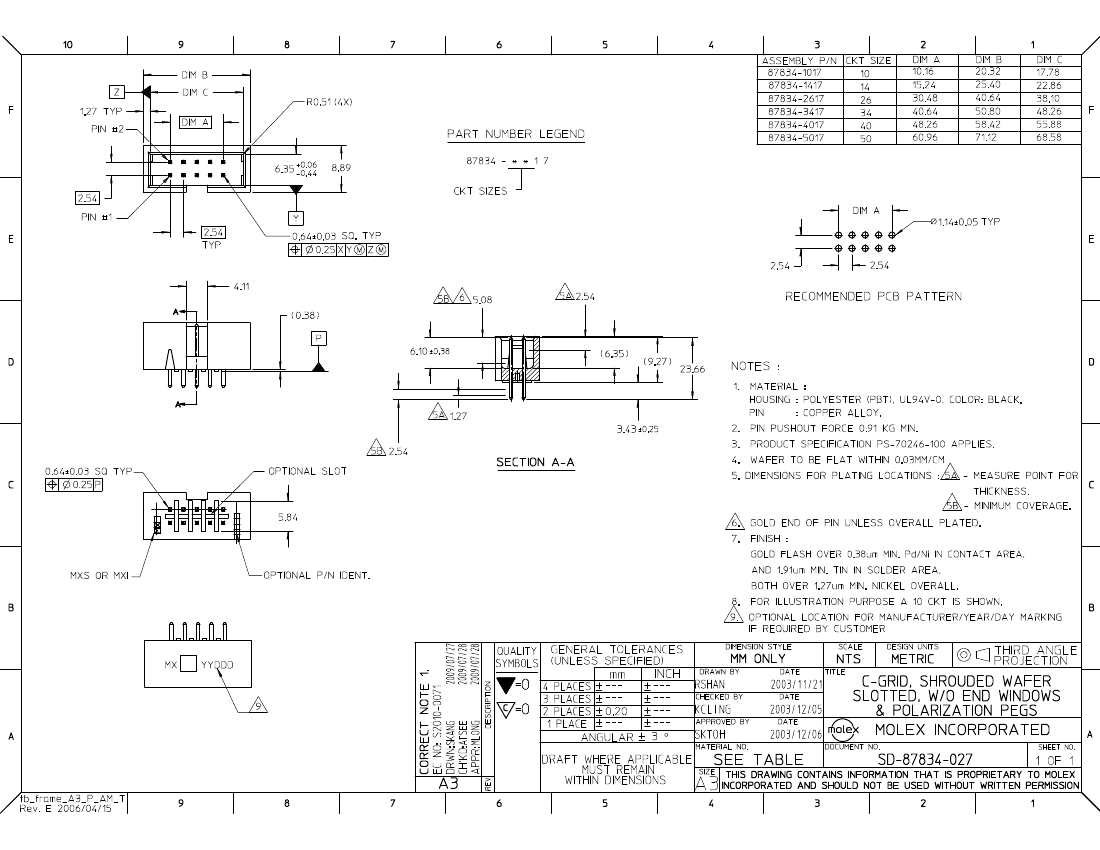

Drawing (PDF)
Product Specification PS-70246-100 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
UL
E29179
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
87834
Wire-to-Board
cgrid__sl_products
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
14
14
Black
No
94V-0
No
No
None
None
Gold
Tin
Polyester
2
Vertical
0.135 In
3.43 mm
No
None
Tray
0.100 In
2.54 mm
0.100 In
2.54 mm
2
0.05
75.2
1.88
Center Slot
Yes
Fully
No
-55°C to +120°C
Through Hole
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87834Series
Mates With
.050" pitch ribbon cable connectors
