87981-3044 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87981-3044

87981-3044: Description2.00mm (.079) pitch milli-grid? header, straddle mount, right angle, shrouded, lead-free, 44 circuits, 0.38??m (15??) gold (Au) plating, center polarization slot; CategoryThe connector The connector; File Size176KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87981-3044 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87981-3044	-	-	View	Buy Now

87981-3044 Overview

2.00mm (.079) pitch milli-grid? header, straddle mount, right angle, shrouded, lead-free, 44 circuits, 0.38??m (15??) gold (Au) plating, center polarization slot

87981-3044 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	MILLI-GRID, POLARIZED
Board mount options	EDGE MOUNT
body width	0.256 inch
subject depth	0.39 inch
body length	2.323 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	87981
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	44
UL Flammability Code	94V-0
Evacuation force-minimum value	.3892 N

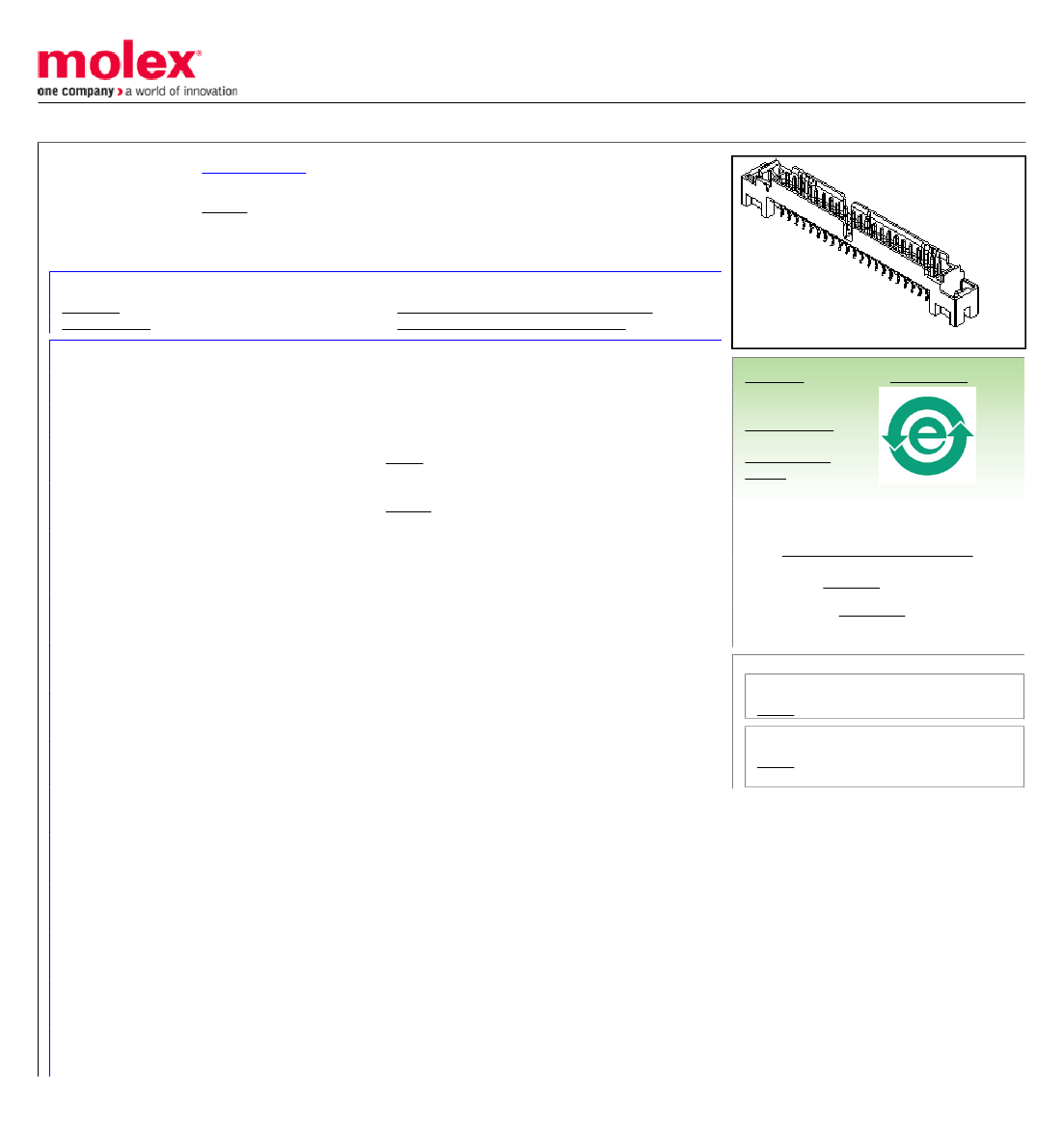

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0879813044

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Straddle Mount, Right Angle, Shrouded,

Lead-free, 44 Circuits, 0.38µm (15µ") Gold (Au) Plating, Center Polarization Slot,

without Cap, without PCB Locator, Metal Latch, Tube

Documents:

3D Model

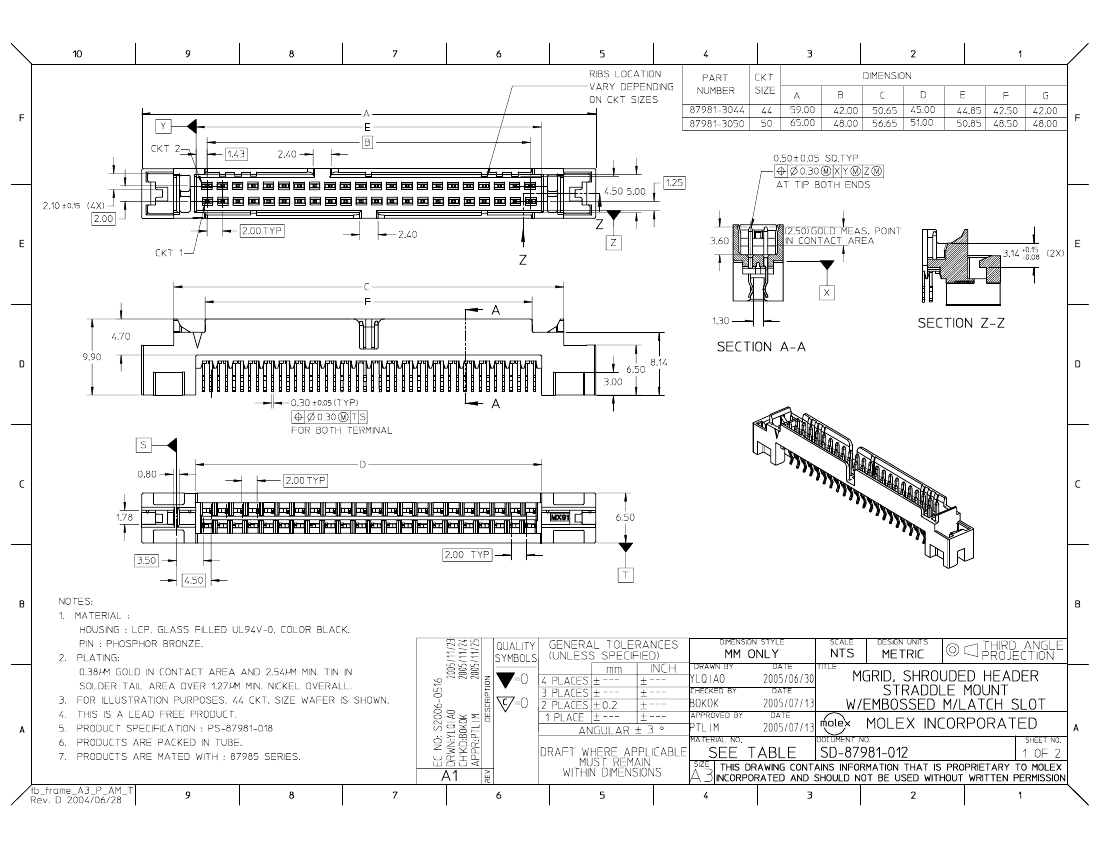

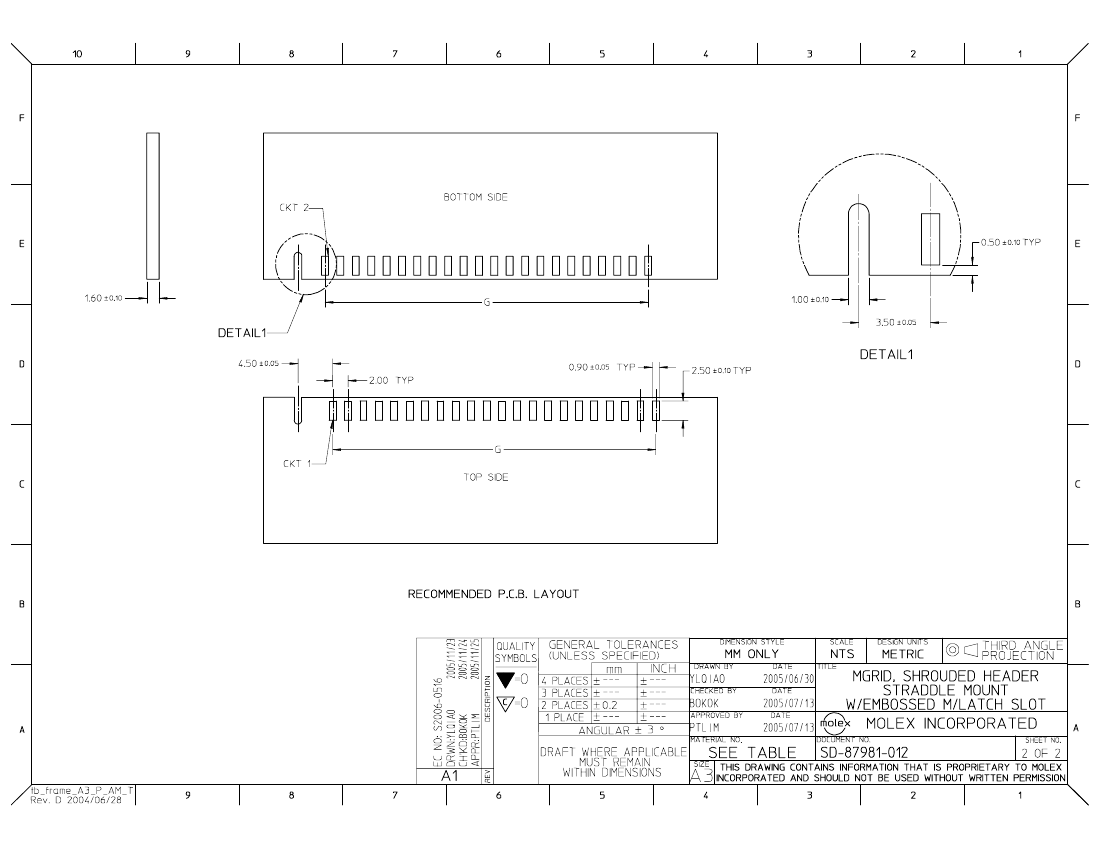

Drawing (PDF)

Product Specification PS-87981-018 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87981

Wire-to-Board

Contact Molex for application in automotive industry

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

94V-0

None

Yes

Phosphor Bronze

Gold

Tin

Right Angle

None

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

15.2

0.38

101.6

2.54

Center Slot

Yes

Fully

-40°C to +85°C

Straddle Mount

Search Parts in this Series

87981Series

Mates With

87985 Milli-Grid™ 2mm IDT Receptacle with

Metal Latch

87981-3044 Related Products

	87981-3044	0879813044
Description	2.00mm (.079) pitch milli-grid? header, straddle mount, right angle, shrouded, lead-free, 44 circuits, 0.38??m (15??) gold (Au) plating, center polarization slot	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Straddle Mount, Right Angle, Shrouded, Lead-free, 44 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Plating, Center Polarization Slot
