87983-3144 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87983-3144

87983-3144: Description2.00mm (.079) pitch milli-grid? header, surface mount, vertical, shrouded, leadfree 44 circuits, 0.38??m (15??) gold (Au) plating, center polarization slot; CategoryThe connector The connector; File Size204KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87983-3144 Overview

2.00mm (.079) pitch milli-grid? header, surface mount, vertical, shrouded, leadfree 44 circuits, 0.38??m (15??) gold (Au) plating, center polarization slot

87983-3144 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT, TUBE PKG.
body width	0.256 inch
subject depth	0.299 inch
body length	2.323 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	87983
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
Plating thickness	15u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	44
Evacuation force-minimum value	.3892 N
Base Number Matches	1

Preview

Download Datasheet

View All

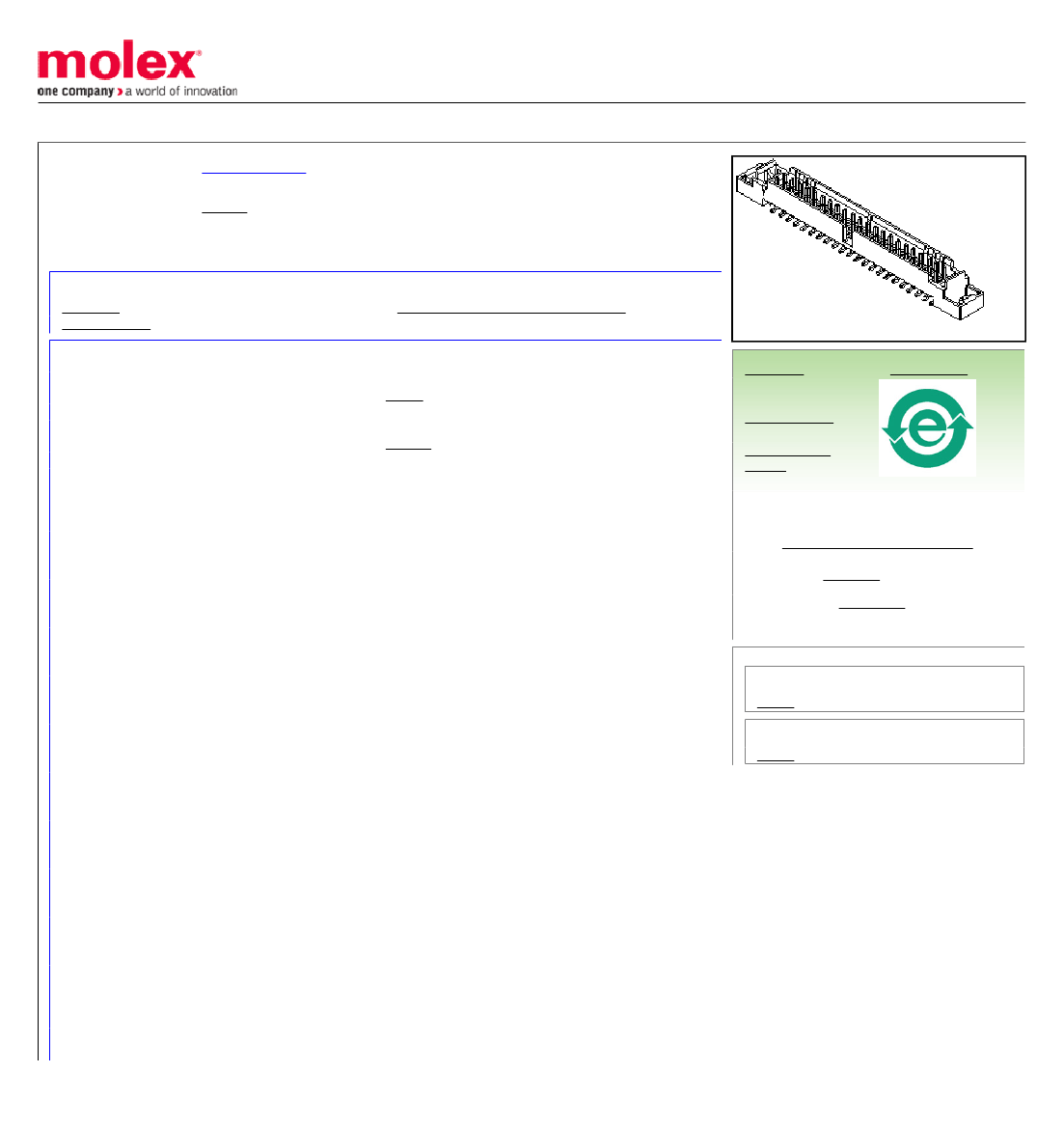

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0879833144

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Lead-

free, 44 Circuits, 0.38µm (15µ") Gold (Au) Plating, Center Polarization Slot, Cap,

without PCB Locator, Metal Latch, Tube

Documents:

3D Model

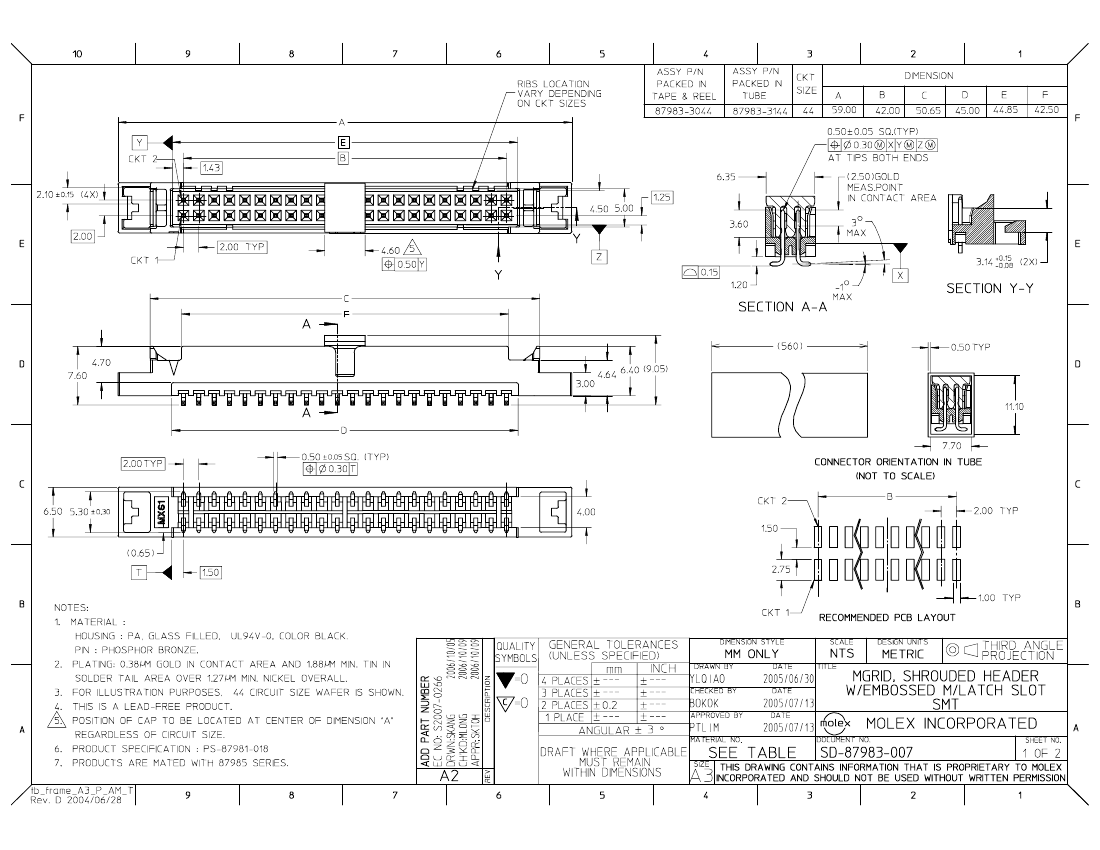

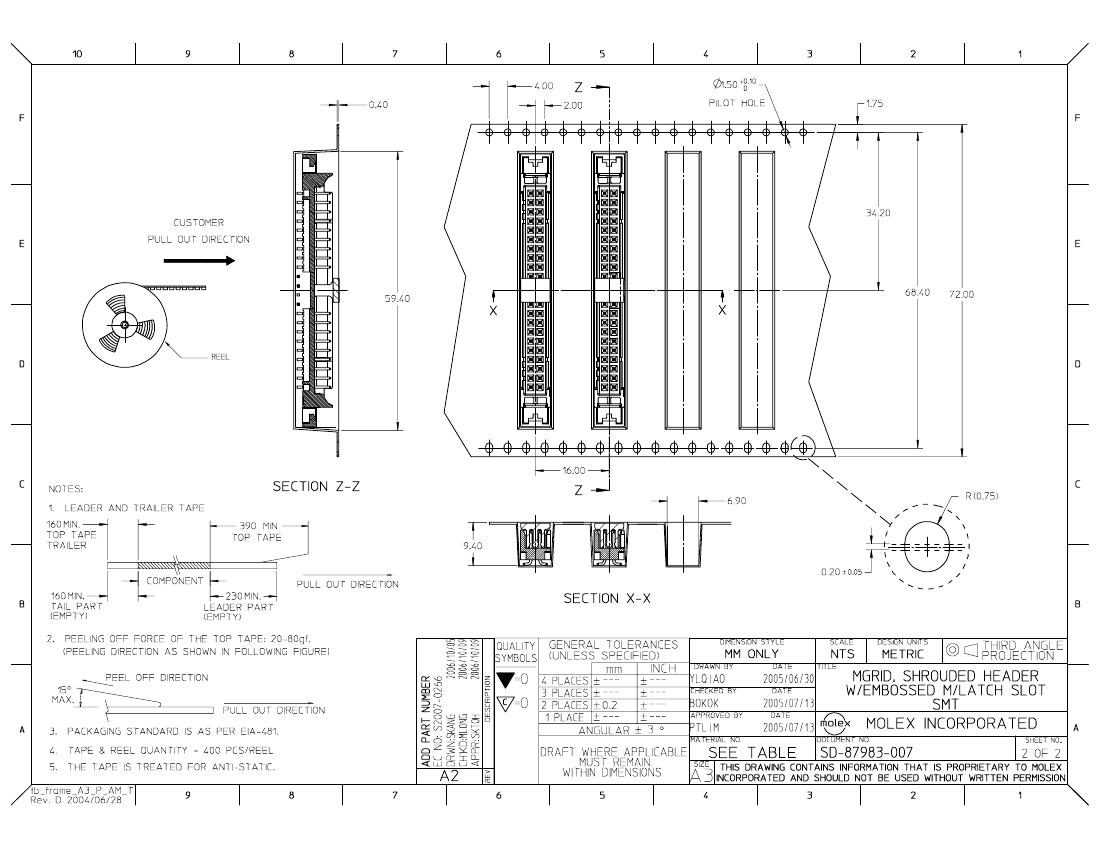

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Series

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87983

Wire-to-Board

Contact Molex for application in automotive industry

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Black

None

Yes

Gold

Tin

High Temperature Thermoplastic

Vertical

None

Tube

0.079 In

2.00 mm

15.2

0.38

76.4

1.91

Center Slot

Yes

Pick and Place Cap

Fully

-40°C to +85°C

Surface Mount

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87983Series

Mates With

87985 Milli-Grid™ Receptacle

Electrical

Current - Maximum per Contact

Voltage - Maximum

125V

87983-3144 Related Products

	87983-3144	0879833144
Description	2.00mm (.079) pitch milli-grid? header, surface mount, vertical, shrouded, leadfree 44 circuits, 0.38??m (15??) gold (Au) plating, center polarization slot	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Surface Mount, Vertical, Shrouded, Leadfree 44 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Plating, Center Polarization Slot
