0908971261 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0908971261

0908971261: Description2.54mm (.100) pitch QF-50, right angle, dual row with eject levers, shrouded header; CategoryThe connector The connector; File Size260KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

0908971261 Overview

2.54mm (.100) pitch QF-50, right angle, dual row with eject levers, shrouded header

0908971261 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	90897
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

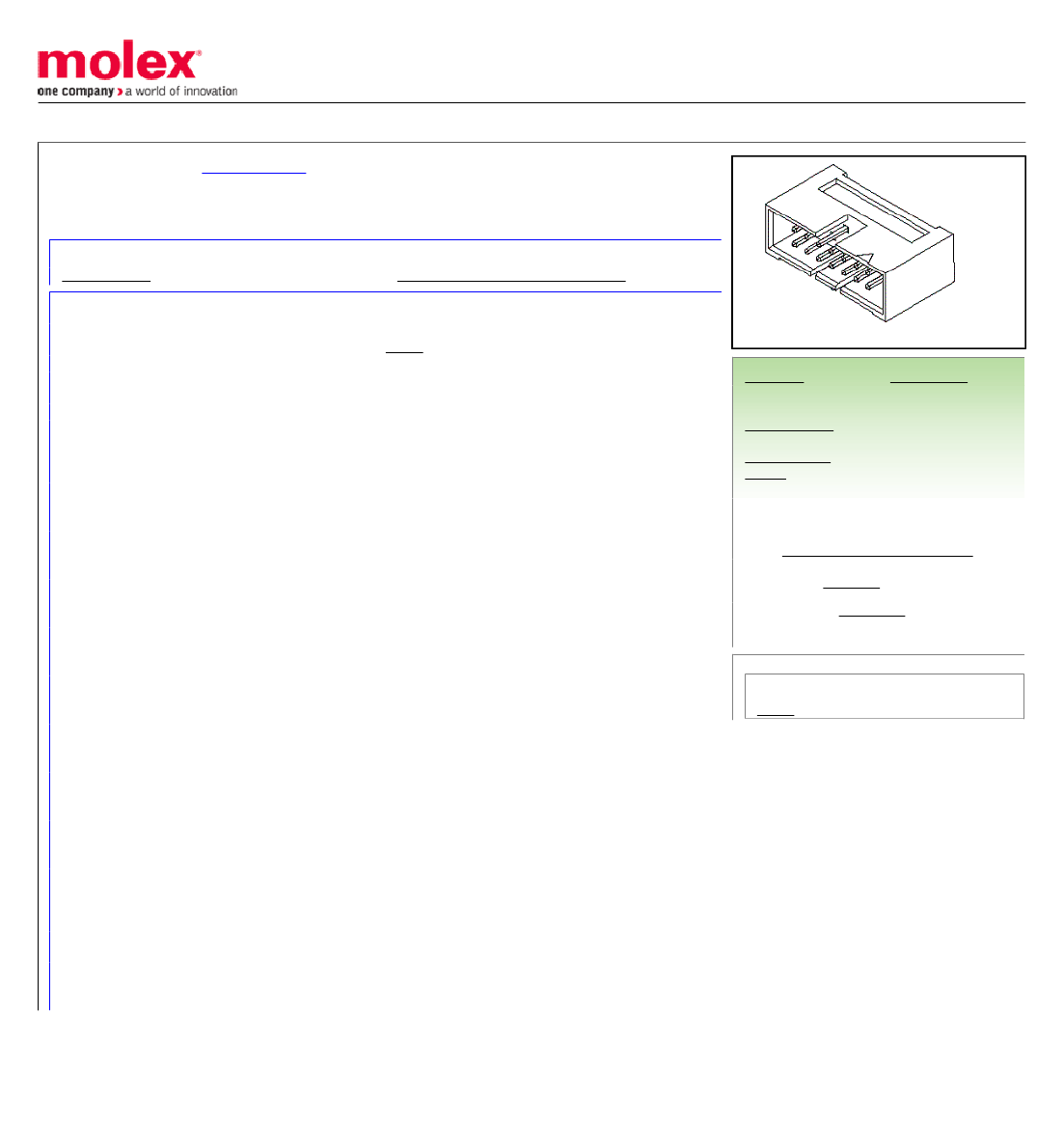

This document was generated on 05/20/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0908971201

Active

2.54mm (.100) Pitch QF-50™, Right Angle, Dual Row with Eject Levers, Shrouded

Header, 20 Circuits, Without Strain Relief

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Comments

Component Type

Glow-Wire Compliant

Product Name

Ribbon Cable / Wire Trap Connectors

90897

Din Eject Levers

PCB Header

QF-50™

image - Reference only

Series

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Black

90° Angle

None

Brass

Gold

Tin

Polyester Alloy

None

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

Yes

-40°C to +105°C

N/A

Ribbon Cable

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

90897Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Material Info

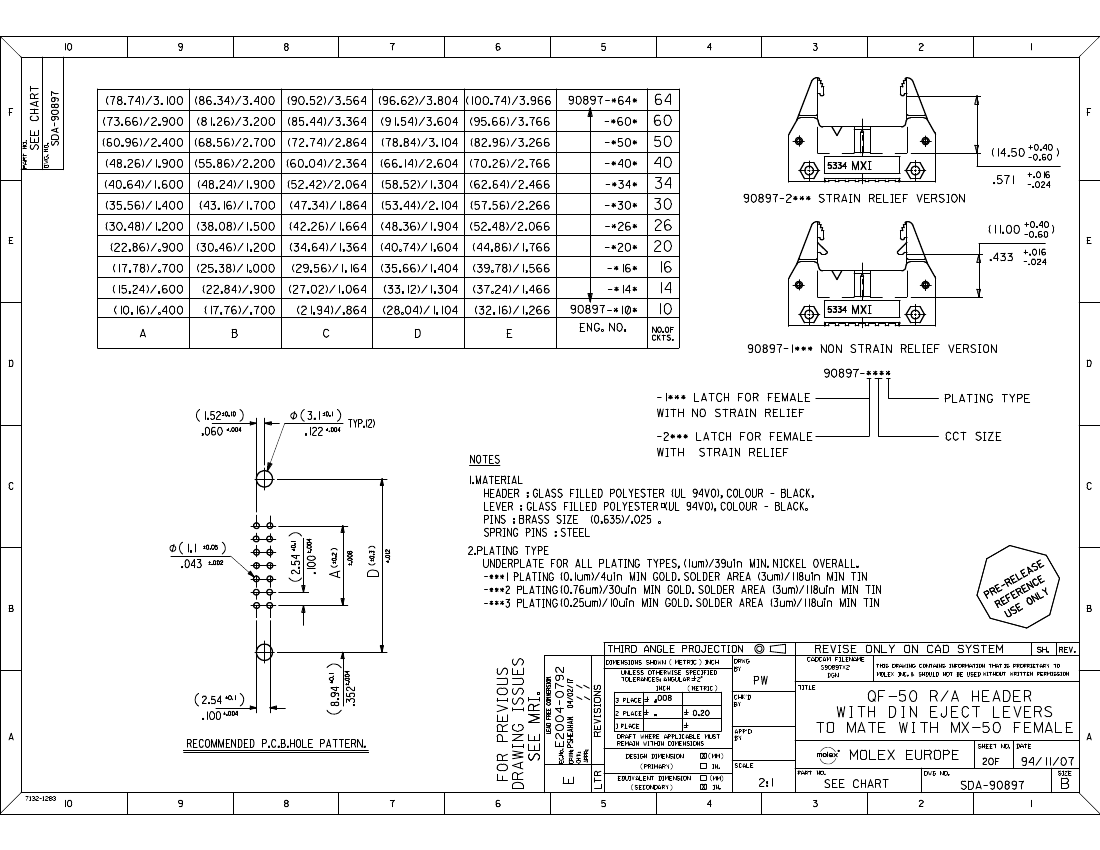

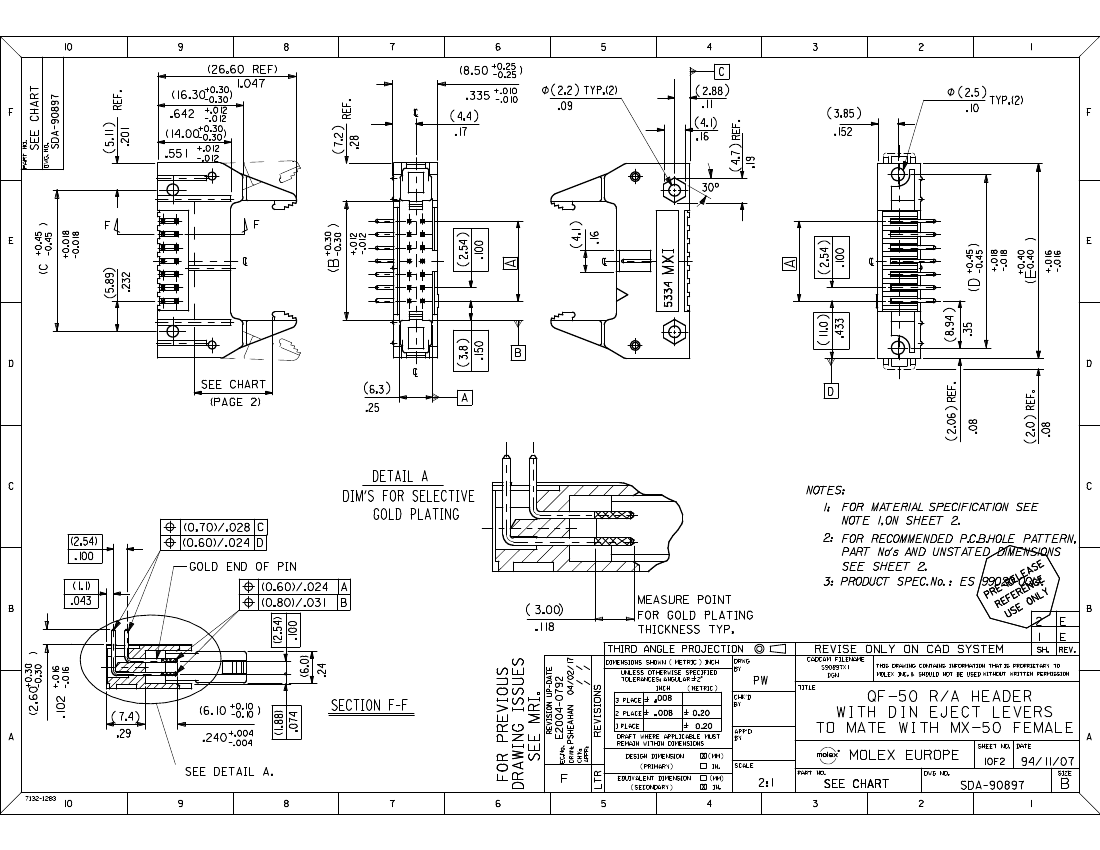

Reference - Drawing Numbers

Sales Drawing

SDA-90897

This document was generated on 05/20/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

0908971261 Related Products

	0908971261	0908971263	0908971203	0908971201
Description	2.54mm (.100) pitch QF-50, right angle, dual row with eject levers, shrouded header	2.54mm (.100) pitch QF-50, right angle, dual row with eject levers, shrouded header	2.54mm (.100) pitch QF-50, right angle, dual row with eject levers, shrouded header	2.54mm (.100) pitch QF-50, right angle, dual row with eject levers, shrouded header
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N
Other features	SHROUDED	SHROUDED	SHROUDED	SHROUDED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	90897	90897	90897	90897
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	26	26	20	20
Base Number Matches	1	1	1	1
