This document was generated on 03/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0508587212
Active
Ring Tongue Terminal for 6 AWG, Closed Uninsulated Brazed Barrel, Stud Size
5/8" (M16), Oxygen-Free Copper, Length 49.00mm (1.929")
Documents:
Drawing (PDF)
Product Specification PS-50555-001 (PDF)
Product Specification PS-50858-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series

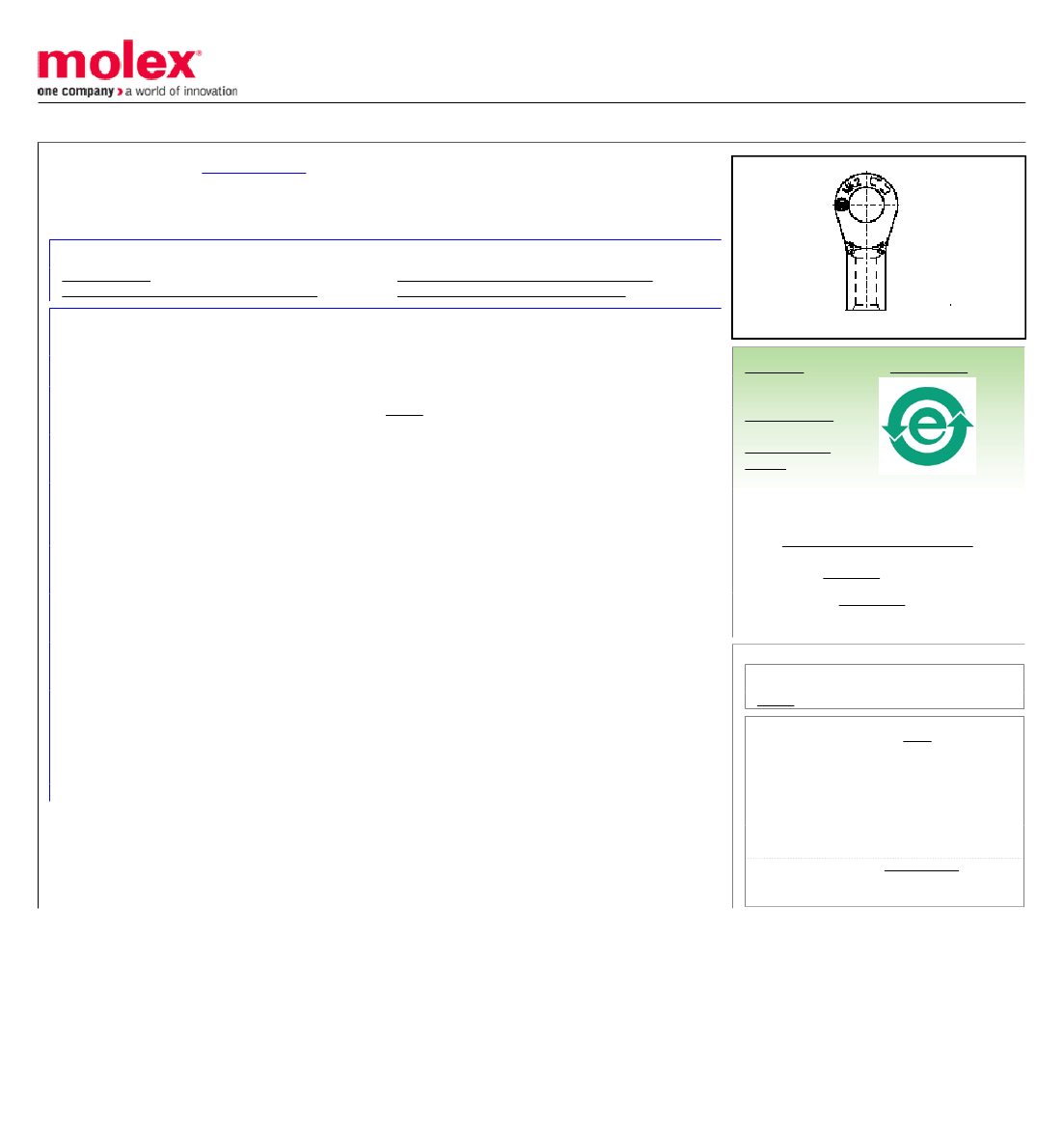

image - Reference only
E134962
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
50858
Yes
N/A
R (Ring)
Ring
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Size AWG
Wire Size mm²
Closed - Brazed
None
Tin
Bag
40
1
40
1
5/8" (M16)
Crimp or Compression
6
10.52 - 16.78
Search Parts in this Series
50858Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Japan
Description
Product #
Battery Type Hand 0573439004
Crimper For JIS
Terminal
Material Info
Reference - Drawing Numbers
Product Specification

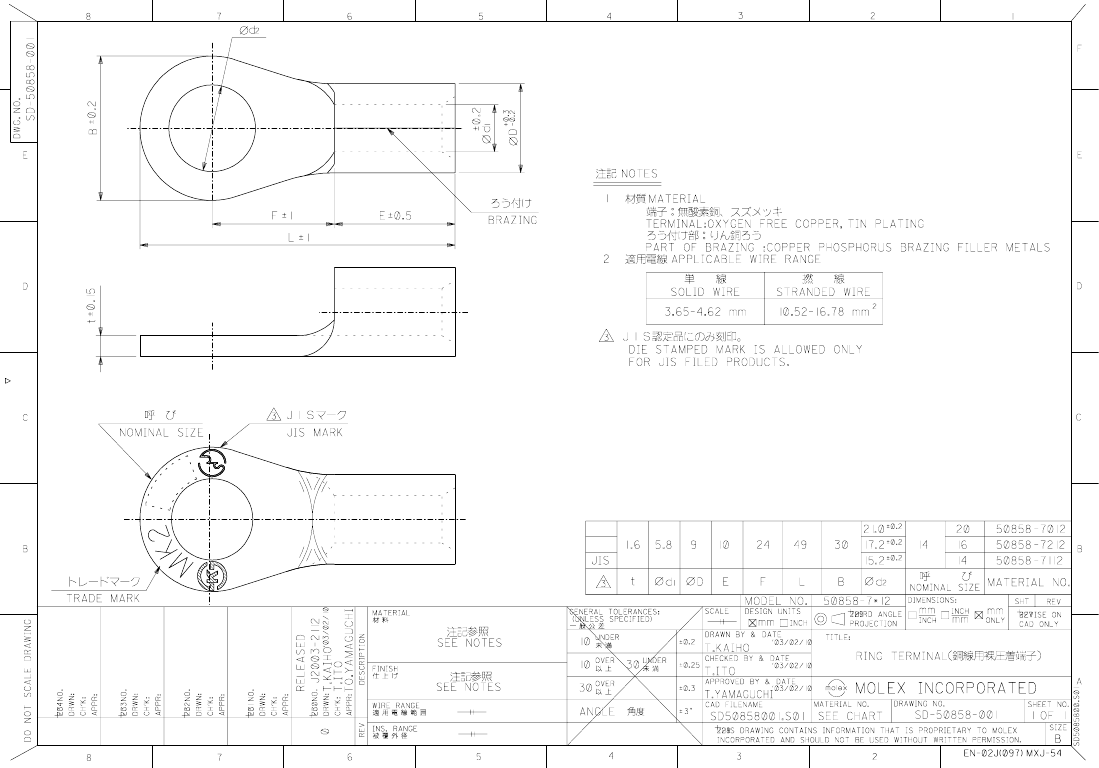

Sales Drawing
PS-50555-001, PS-50858-001
SD-50858-001
This document was generated on 03/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
