87862-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87862-0001

87862-0001: DescriptionI/O connector ser int mlane plg Vt plg Vt PF 0.76au LF; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87862-0001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87862-0001	-	-	View	Buy Now

87862-0001 Overview

I/O connector ser int mlane plg Vt plg Vt PF 0.76au LF

87862-0001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Other features	ROHS & BEVELED METAL PIN
Board mount options	PEG
body width	0.201 inch
subject depth	0.392 inch
body length	2.256 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
maximum insertion force	1.39 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	87862
Plug contact pitch	0.05 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	55 °C
Minimum operating temperature
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	PRESS FIT
Total number of contacts	32
Evacuation force-minimum value	.6116 N

Preview

Download Datasheet

View All

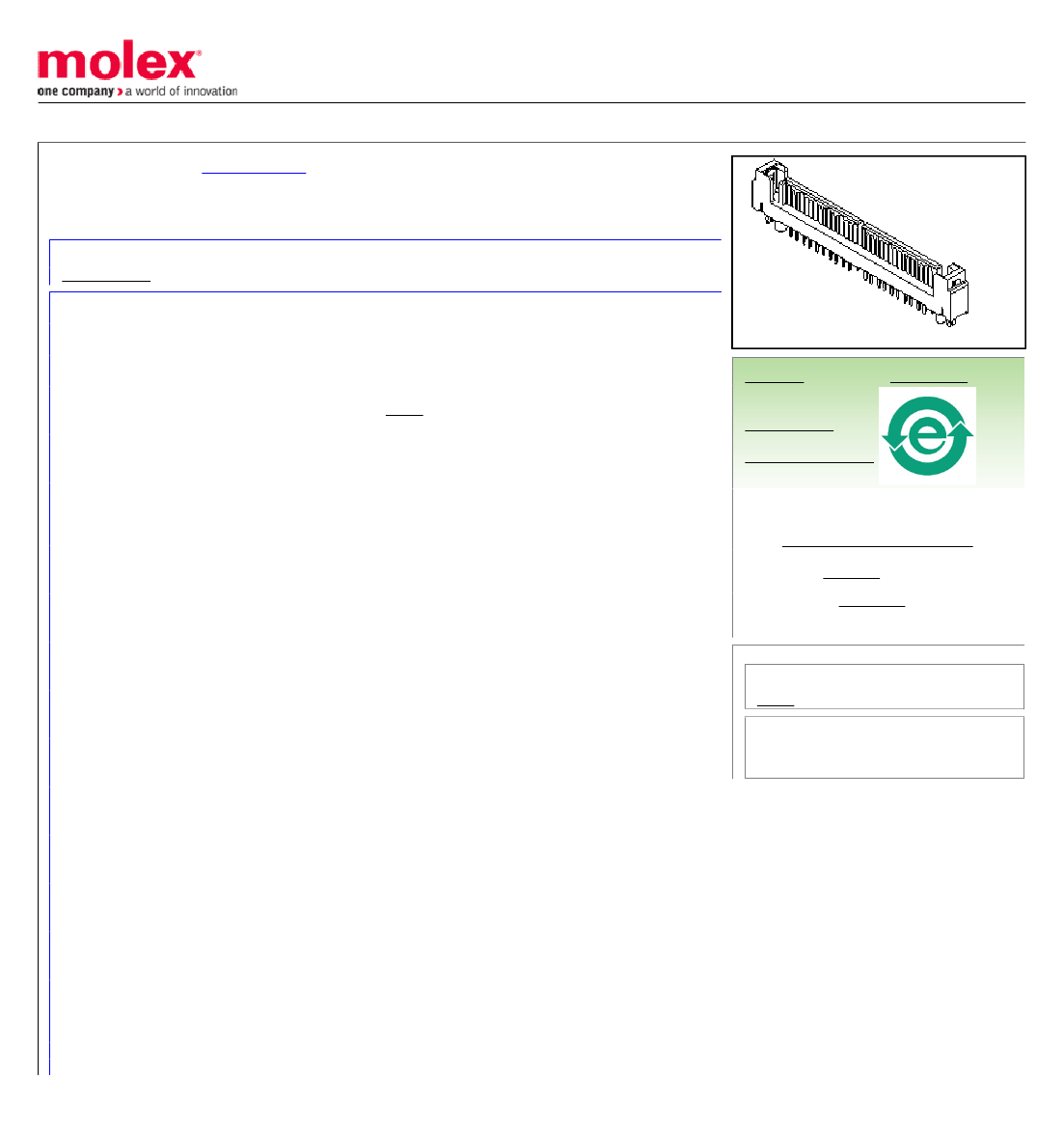

This document was generated on 11/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0878620001

Obsolete

1.27mm (.050") Pitch SAS Multi-Lane Plug, Vertical, Press fit, with Beveled Metal Pin,

32 Circuits, Lead free

Documents:

Drawing (PDF)

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

Series

General

Product Family

Series

Application

Component Type

Product Name

Type

I/O Connectors

87862

Wire-to-Board

Plug

SAS

N/A

Physical

Boot Color

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Gender

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Ports

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Waterproof / Dustproof

N/A

Black

94V-0

Plug

None

Phosphor Bronze

Gold

Tin

Vertical

3.50mm (.138")

Yes

3.00mm (.118")

Tray

Yes

1.08mm (.043"), 1.65mm (.065"), 2.54mm (.100")

0.762µm (30µ")

2.540µm (100µ")

Yes

0°C to +55°C

Through Hole - Compliant Pin

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87862Series

Mates With

SFF-8484 HBA to Backplane Multi-Lane

Internal Connectors and Cable

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

1.5A

30V
