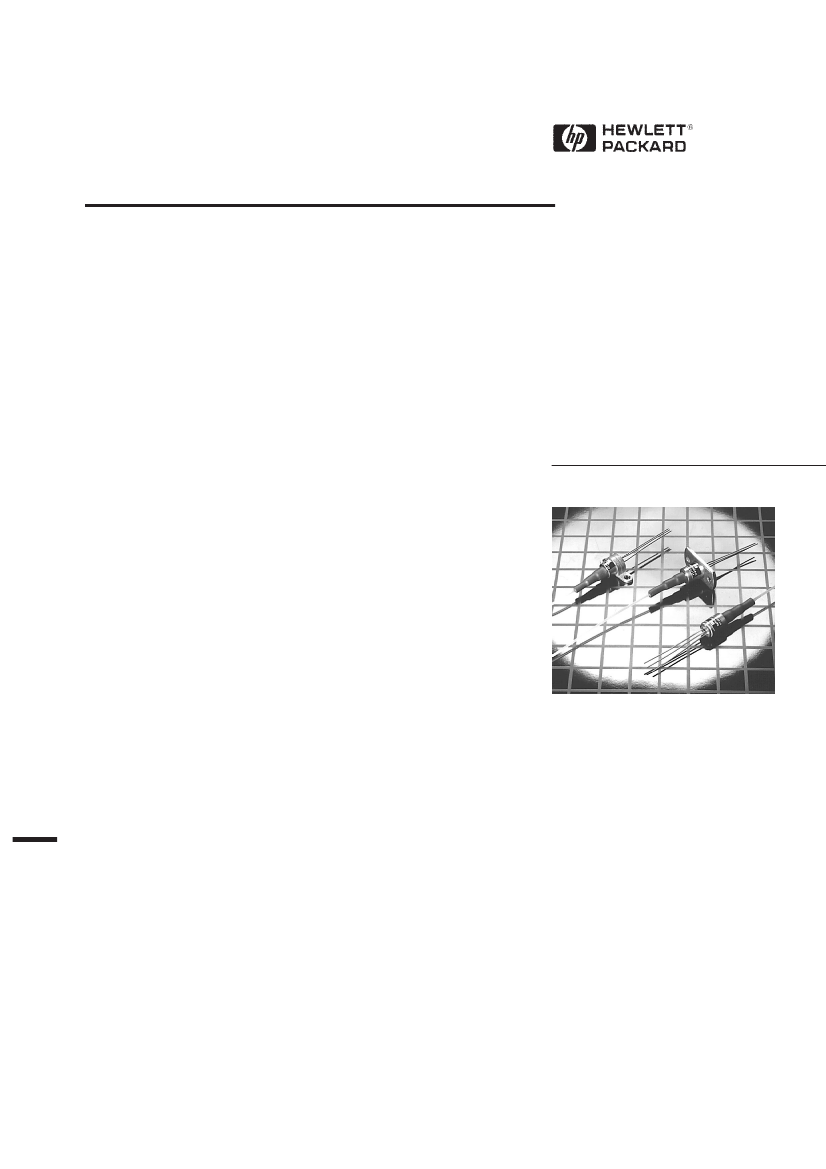

Analog Pigtailed PIN
Photodiodes
Technical Data
PDA2446
Features
• Variety of Flange/Pinout
Options
• Compact Package
• High Reliability Planar
InGaAs PIN Photodiode
• High Responsivity
• High Linearity
• Low Back Reflection
• High Bandwidth >1.5 GHz
• –40
°
C to +85
°
C Operating
Temperature Range
Description
The PDA range of products
includes a variety of compact
fiber pigtailed devices designed
for wide operating temperature,
low cost applications such as
fiber in the loop. The planar
InGaAs photodiodes are manufac-
tured using MOVPE growth
technology and give low leakage
and high responsivity perform-
ance with excellent reliability.
The construction of the devices
includes a hermetically sealed
photodiode and an actively
aligned fiber pigtail and is
designed to be compatible with
the environmental requirements
of the Bellcore TA-NWT-000983
document.
The product range includes a
variety of pinout, fiber type, and
package mounting bracket
Applications
• CATV/CCTV
• Fiber in the Loop (FITL)
options, designed to match the
majority of offerings in the
marketplace. If the specific
arrangement or performance you
require is not listed, please
contact Hewlett-Packard. High
flexible design and manufacturing
processes allow both physical and
electro-optic customization to
suit your needs.
532
5965-7314E (4/97)
PDA Pigtailed Photodiode Specifications
Absolute Maximum Ratings
Absolute maximum limits mean that no catastrophic damage will occur if the product is subjected to these ratings for short periods, provided that
each limiting parameter is in isolation and all other parameters have values within the performance specification. It should not be assumed that
limiting values of more than one parameter can be applied to the product at the same time.
Parameter
Reverse Voltage
Reverse Current
Forward Voltage
Forward Current
Power Dissipation
Operating Temperature
Storage Temperature
Soldering – 10 seconds
Fiber Pull
Symbol
Vr
Ir
Vf
If
-
Tc
Ts
-
-
Minimum
-
-
-
-
-
–40
–40
-
-
Maximum
20
1
1
5
50
+85
+85
+260
10
Units
V
mA
V
mA
mW
°C
°C
°C
N
Performance Specifications
Test Conditions:
Unless Otherwise Stated
Vr = 5 V, Tc = +25
°
C
Tc= +85°C
Ir = 10
µA
1 MHz
λ
= 1300 nm
80% points
PDA2446
Min.
Max.
-
1
-
50
35
-
-
1.7
0.7
-
1200
1650
1.5
-
-70
Parameter
Dark Current
Reverse Breakdown Voltage
Capacitance
Responsivity
Operating Wavelength
Small Signal Bandwidth
Linearity
Second Order
Symbol
Id
Vbr
C
R
λ
Bw
X
1
-
Units
nA
nA
V
pF
A/W
nM
GHz
dBc
Third Order
-
Vr = 15 V
fl = 135 MHz
f2 = 190 MHz
70% Modulation
0 dBm Optical Power
As above
-85
dBc
Fiber Pigtail:
Tight jacketed, self-mode stripping, singlemode fiber
Parameter
Length
Core Diameter
Cladding Diameter
Concentricity Error
Secondary Jacket Diameter
Minimum
1.0
8
122
-
0.8
Maximum
-
10
128
8
1.0
Units
m
µm
µm
%
mm
533
PDA Mechanical Outline Options
PDA2446-B
C
D
A
F
∅B
∅E
DIM.
∅G
A
∅B
C
D
MIN.
–
–
12.0
–
MAX.
25.0
6.5
–
8.5
DIM.
∅E
F
∅G
MIN.
0.41
MAX.
0.47
1000
–
2.54 NOM.
ALL DIMENSIONS IN MILLIMETERS
PDA2446-D
J
K
C
D
G
A
F
H
L
∅E
∅P
∅B
DIM.
MIN.
–
–
12.0
–
0.41
1000
MAX.
25.0
6.5
–
8.5
0.47
18.0
–
DIM.
H
J
K
L
M
∅N
∅P
MIN.
MAX.
∅N
M
A
∅B
C
D
∅E
F
G
12.7 NOM.
7.5
–
1.1
7.5
–
4.2
3.8
2.54 NOM.
2.4
2.1
0.9
ALL DIMENSIONS IN MILLIMETERS
PDA2446 Electrical Pin-Outs
2
1
3
PIN 1: CATHODE +VE
PIN 2: CASE
PIN 3: ANODE –VE
3
1
534
Ordering Information
PDA2446
- XI
- XX
Connector Type:
AP = Angle Polished FC/PC
AS = Angle Polished SC/PC
US = Ultra Polished SC/PC
SF = Super Polished FC/PC
Flange Type:
B = Barrel
D = 2 hole PCB mount, 12.7 mm between centers
Additional options are available to meet your specific needs. Please contact your local representative for
details.
535

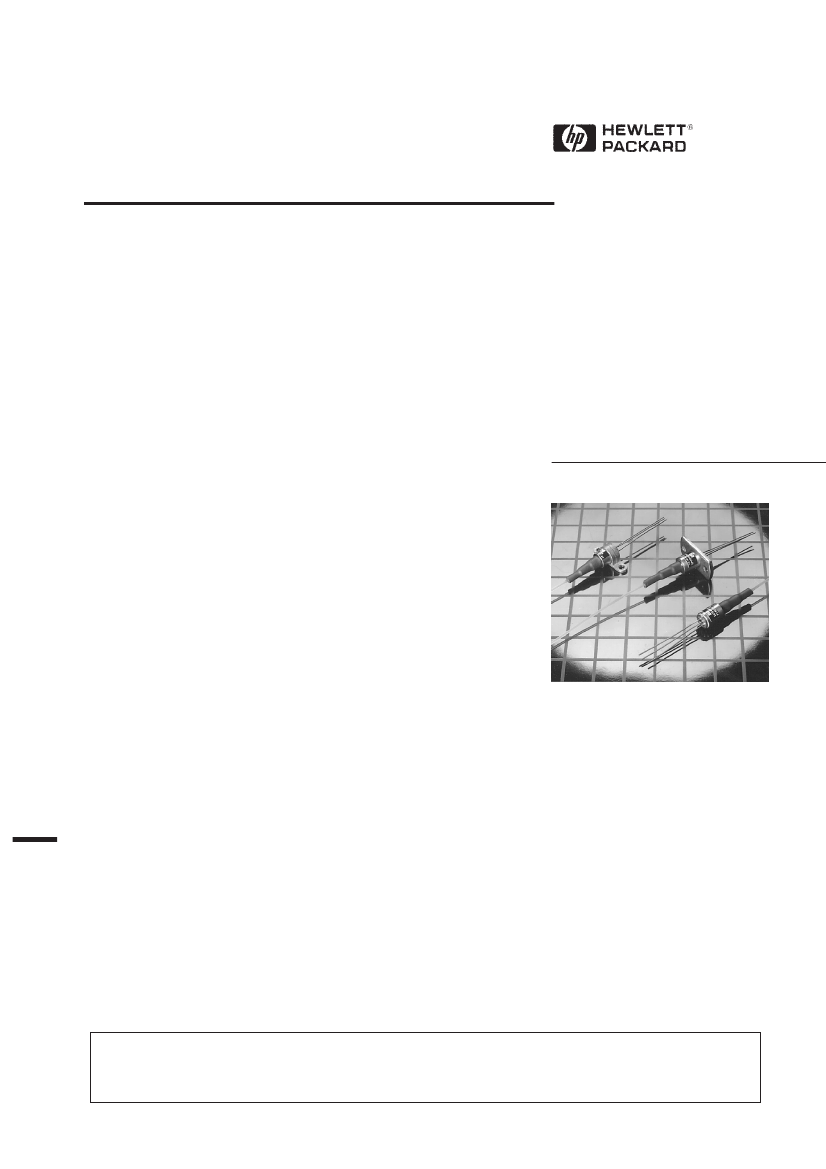

Discrete Pin-Preamplifiers
Preliminary Technical Data
PPA0052, PPA1052
PPA0155, PPA1155
Features
• Integrated InGaAs PIN and
GaAs Preamplifier
• FC or SC Receptacle or
Fiber Pigtailed
• Compact Package
• High Reliability Planar
InGaAs PIN Photodiode
• High Responsivity
Description
The PPA*052 and PPA*155 are
compact connectorized or
pigtailed InGaAs photodiodes
with preamplifier designed for
wide operating temperature
range, low cost applications such
as SONET/SDH and Fiber in the
Loop. The planar InGaAs
photodiodes are manufactured
using MOVPE growth technology
which gives low leakage and high
responsivity performance with
excellent reliability. The wide
dynamic range GaAs IC pre-
amplifier ensures compliance
with SONET/SDH standards.
The construction of the devices
includes a hermetically sealed
photodiode and amplifier actively
aligned within a receptacle
housing or to a fiber pigtail and is
designed to be compliant with
Bellcore TA-TSY-000983.
Applications
SONET/SDH
Instrumentation
O-E Converters
Single and Multimode Fiber
Communications Systems
• Data Communication
Receivers
• FDDI
•
•
•
•
Preliminary Product Disclaimer
This preliminary data sheet is provided to assist you in the evaluation of engineering samples of the product which is under development
and targeted for release during 1997. Until Hewlett-Packard releases this product for general sales, HP reserves the right to alter prices,
specifications, features, capabilities, function, manufacturing release dates, and even general availability of the product at any time.
536
(5/97)
