87872-1103: DescriptionBoard Connector, 3 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size86KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Compare View All

87872-1103 Overview

Board Connector, 3 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, Natural Insulator, Receptacle

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878721103

Active

extreme_powerplus_ssi

1.25mm (.049") Pitch Board-to-Board Header, Through Hole, Friction Lock, with Kinked

PC Tails, 3 Circuits, Tin (Sn) Overall, Tube Packaging, Lead-free

Documents:

3D Model

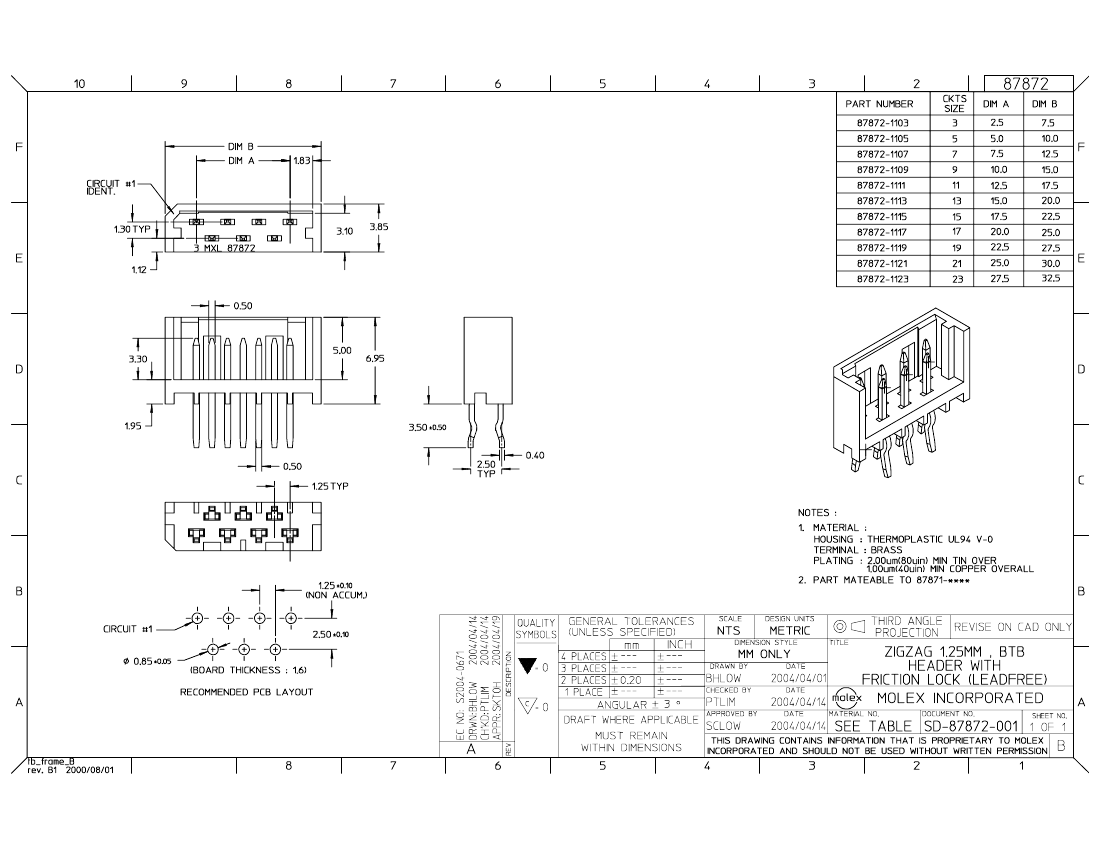

Drawing (PDF)

Product Specification PS-87871-006 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

87872

Board-to-Board

ZIGZAG

extreme_powerplus_ssi

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Natural

None

Yes

0.274 In

6.95 mm

Brass

Tin

High Temperature Thermoplastic

Vertical

0.138 In

3.50 mm

Yes

0.062 In

1.60 mm

Tube

0.049 In

1.25 mm

120.00

3.000

120.00

3.00

Yes

Partial

-40°C to +105°C

Search Parts in this Series

87872Series

Mates With

878712207 Board-to-Board Receptacle

87872-1103 Related Products

	87872-1103	PRHMB75B12A_15	87872-1111	87872-1105	87872-1113
Description	Board Connector, 3 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, Natural Insulator, Receptacle	IGBT	1.25mm (.049) pitch board-to-board header, through hole, friction lock, with kinked PC tails, 11 circuits, tin (Sn) overall, tube packaging, lead-free	1.25mm (.049) pitch board-to-board header, through hole, friction lock, with kinked PC tails, 5 circuits, tin (Sn) overall, tube packaging, lead-free	1.25mm (.049) pitch board-to-board header, through hole, friction lock, with kinked PC tails, 13 circuits, tin (Sn) overall, tube packaging, lead-free
Is it Rohs certified?	-	-	conform to	conform to	conform to
Maker	-	-	Molex	Molex	Molex
Reach Compliance Code	-	-	unknow	unknow	unknow
Other features	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	-	-	0.152 inch	0.152 inch	0.152 inch
subject depth	-	-	0.274 inch	0.274 inch	0.274 inch
body length	-	-	0.689 inch	0.394 inch	0.787 inch
Body/casing type	-	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	-	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	-	-	SN ON CU	SN ON CU	SN ON CU
Contact completed and terminated	-	-	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	-	-	MALE	MALE	MALE
Contact material	-	-	BRASS	BRASS	BRASS
contact mode	-	-	STAGGERED	STAGGERED	STAGGERED
Contact resistance	-	-	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	-	-	700VAC V	700VAC V	700VAC V
Durability	-	-	10 Cycles	10 Cycles	10 Cycles
maximum insertion force	-	-	3.4194 N	5.3376 N	3.1414 N
Insulation resistance	-	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	-	-	NATURAL	NATURAL	NATURAL
insulator material	-	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	-	-	87872	87872	87872
Plug contact pitch	-	-	0.098 inch	0.098 inch	0.098 inch
Match contact row spacing	-	-	0.05 inch	0.05 inch	0.05 inch
Installation method	-	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	-	-	BOARD	BOARD	BOARD
Number of connectors	-	-	ONE	ONE	ONE
PCB row number	-	-	2	2	2
Number of rows loaded	-	-	2	2	2
Maximum operating temperature	-	-	105 °C	105 °C	105 °C
Minimum operating temperature	-	-	-40 °C	-40 °C	-40 °C
PCB contact pattern	-	-	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	-	-	2.4892 mm	2.4892 mm	2.4892 mm
Plating thickness	-	-	80u inch	80u inch	80u inch
Rated current (signal)	-	-	2 A	2 A	2 A
Guideline	-	-	UL, CSA	UL, CSA	UL, CSA
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	-	-	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	-	-	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	-	-	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	-	-	11	5	13
Evacuation force-minimum value	-	-	1.39 N	2.224 N	1.2232 N
