87872-1115: Description1.25mm (.049) pitch board-to-board header, through hole, friction lock, with kinked PC tails, 15 circuits, tin (Sn) overall, tube packaging, lead-free; CategoryThe connector The connector; File Size86KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87872-1115 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87872-1115	-	-	View	Buy Now

87872-1115 Overview

1.25mm (.049) pitch board-to-board header, through hole, friction lock, with kinked PC tails, 15 circuits, tin (Sn) overall, tube packaging, lead-free

87872-1115 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.152 inch
subject depth	0.274 inch
body length	0.886 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	40 mΩ
Dielectric withstand voltage	700VAC V
Durability	10 Cycles
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
Manufacturer's serial number	87872
Plug contact pitch	0.098 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Plating thickness	80u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	15
Evacuation force-minimum value	1.2232 N

Preview

Download Datasheet

View All

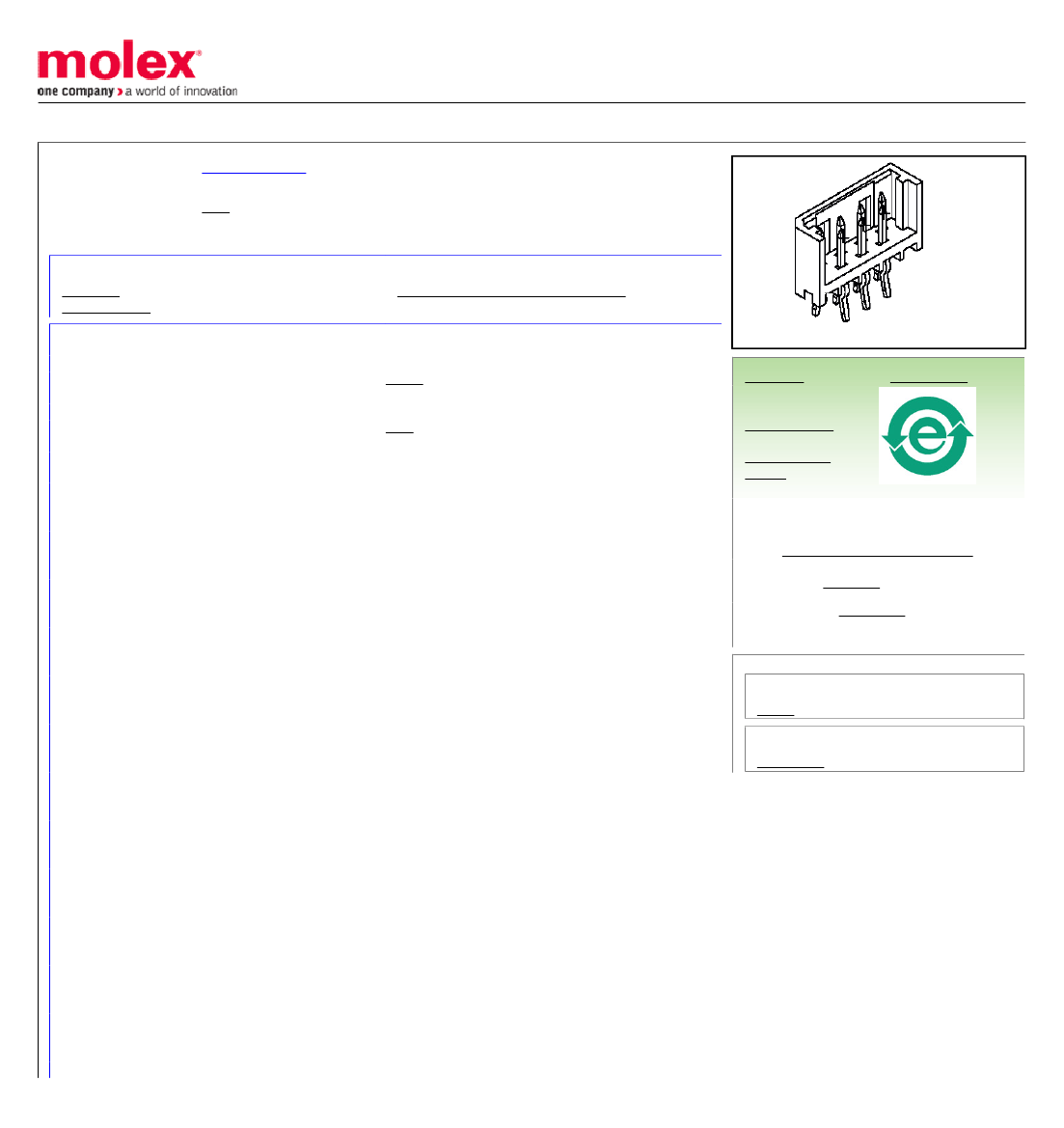

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878721115

Active

KK®

1.25mm (.049") Pitch Board-to-Board Header, Through Hole, Friction Lock, with Kinked

PC Tails, 15 Circuits, Tin (Sn) Overall, Tube Packaging, Lead-free

Documents:

3D Model

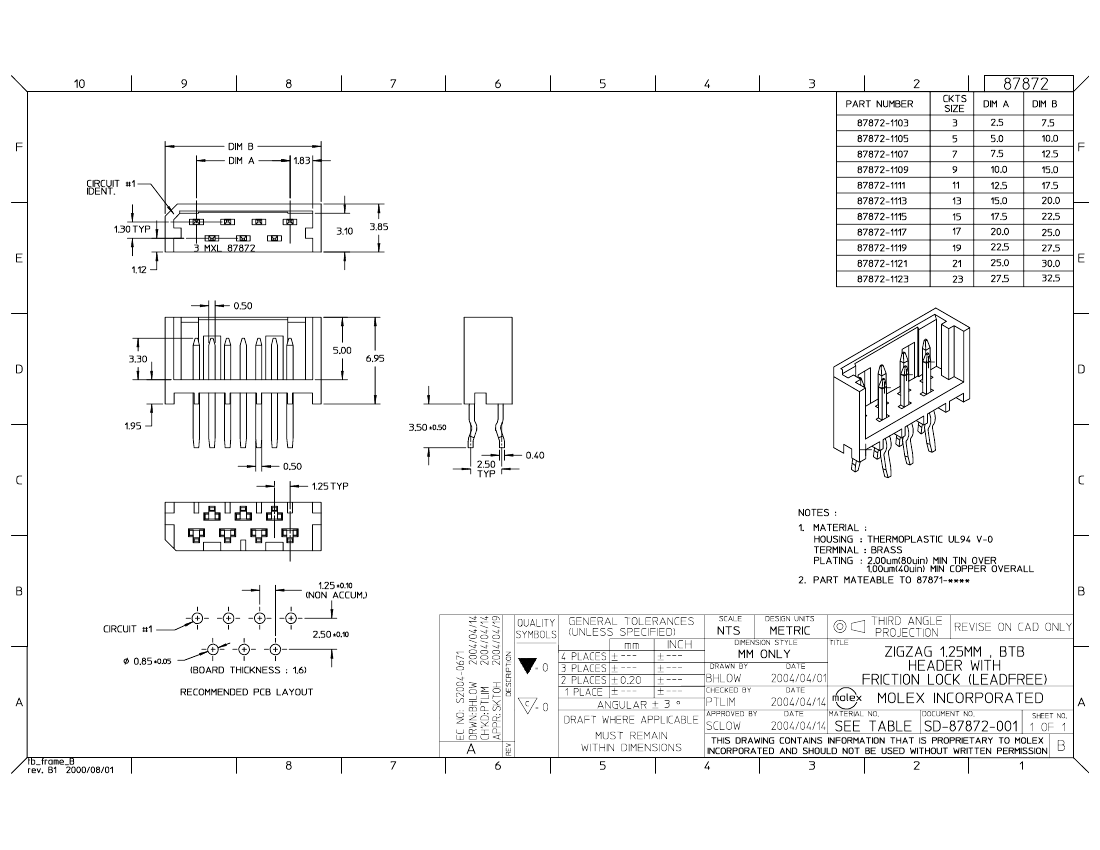

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

PCB Headers

87872

Board-to-Board

ZIGZAG

KK®

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Overview

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

No

15

Natural

10

No

None

Yes

0.274 In

6.95 mm

Brass

Tin

High Temperature Thermoplastic

2

Vertical

0.138 In

3.50 mm

No

Yes

0.062 In

1.60 mm

Tube

0.049 In

1.25 mm

120.00

3.000

120.00

3.00

Yes

Partial

No

-40°C to +105°C

Search Parts in this Series

87872Series

Mates With

878712219 Board-to-Board Receptacle
