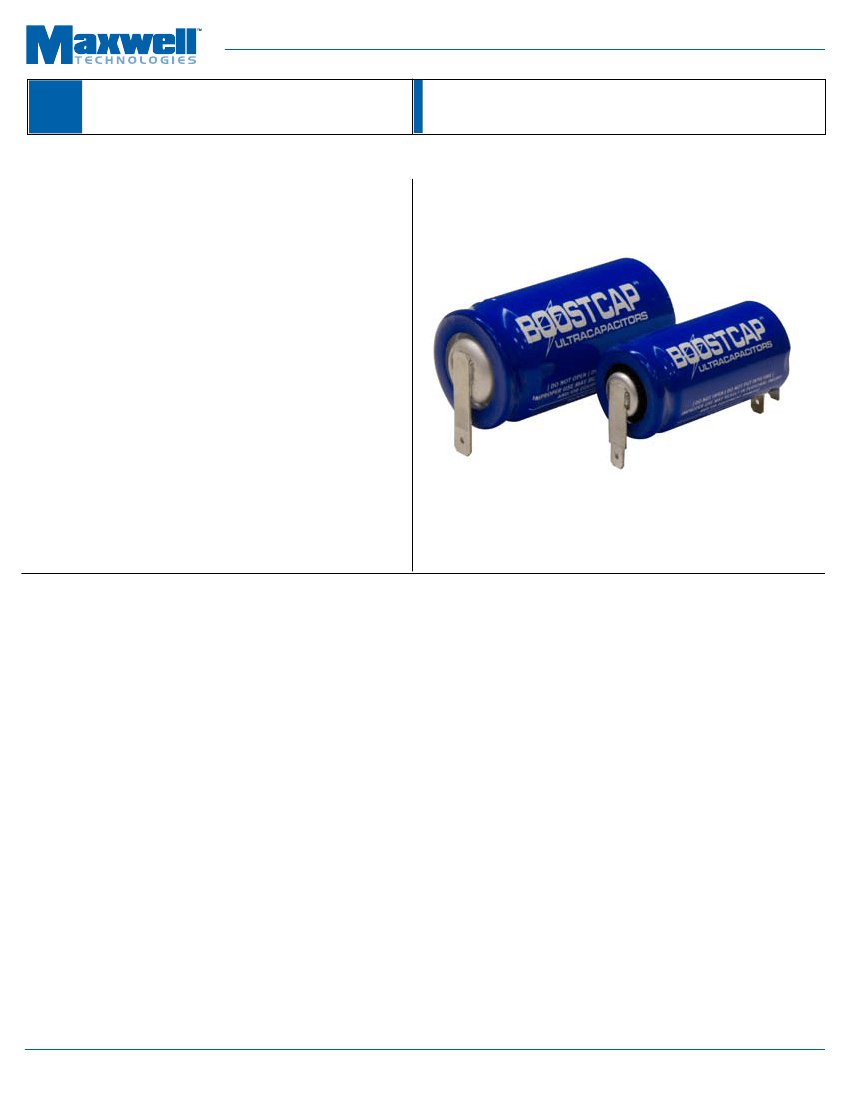

BC Power Series
BOOSTCAP
®
Ultracapacitors
p
>
Series: BC Power
Round, Terminal Type
Features:
»
Dimensions similar to EN 60086-2 & EN 60285
»
Over 500,000 duty cycles
»
10 year life capability
»
Higher energy vs. electrolytic
»
Higher power vs. batteries
»
Aluminum construction
»
Round, double ended design
»
Ultra-low internal resistance
»
Resistant against reverse polarity
»
UL Recognized
>
Applications:
»
Automotive subsystems
»
Consumer electronics
»
Short term UPS and telecom
»
Renewable energy systems
»
Portable power tools
>
Overview:
The Power-type ultracapacitor product line gives industrial customers a much wider range of choices to meet
their energy storage and power delivery requirements. The cells are specifically engineered to provide cost-
effective solutions for automotive subsystems, UPS, renewable energy and portable consumer products.
In addition to meeting or exceeding demanding industrial application requirements for both watt-hours of
energy storage and watts of power delivery per kilogram, all of these products will perform reliably for more
than five hundred-thousand discharge-recharge cycles.
The proprietary architecture and material science of the BOOSTCAP® products enable continued leadership
in controlling costs, flexibility in product offerings and allow application specific performance tailoring.
BC Power Series
BOOSTCAP
®
Ultracapacitors
|
Page 1
| Doc. #1009643 | Rev. 4 |
BC Power Series
BOOSTCAP
®
Ultracapacitors
>
BC
Power Series Specifications:
Item
Operating Temperature Range
Storage Temperature Range
Rated Voltage
Capacitance Tolerance
Resistance Tolerance
Temperature Characteristics
Capacitance Change
Internal Resistance
Capacitance Change
Internal Resistance
Shelf Life
Product Specification
-40 °C to +65 °C
-40 °C to +70 °C
2.5 V DC
+ 20%
+/- 25%
Within ± 5% of initial measured value at 25 °C ( at -40 °C)
Within 150% of initial measured value at 25 °C (at -40 °C)
Within 20% of initial specified value
Within 25% of initial specified value
After 1000 hours application of rated voltage at 65 °C
Endurance
After 1000 hours storage at 65 °C without load shall meet specification for endurance
After 10 years at rated voltage and 25 °C
Capacitance Change
Internal Resistance
Within 20% of initial specified value
Within 100% of initial specified value
Life Test
Cycle Test
Capacitors cycled between specified voltage and half rated voltage under constant
current at 25 °C (500,000 Cycles)
Capacitance Change
Internal Resistance
Within 20% of initial specified value
Within 100% of initial specified value
>
BC
Power Product Specifications:
Part Number
BCAP0120 P250
BCAP0310 P250
Capacitance
(F)
120
310
ESR, DC
(mohm)
5.00
2.20
ESR, 1khz
(mohm)
2.50
1.10
Ic
(mA)
0.15
0.45
>
BC
Power Product Properties:
Maxwell Part No.
BCAP0120 P250
BCAP0310 P250
Rth
(C/W)
15.0
10.9
Isc
(A)
730
1500
Emax
(Wh/kg)
3.59
4.48
Pmax
(W/kg)
21,500
26,000
Pd
(W/kg)
5,100
5,600
BC Power Series
BOOSTCAP
®
Ultracapacitors
|
Page 2
| Doc. # 1009643 | Rev. 4 |
BC Power Series
BOOSTCAP
®
Ultracapacitors
>

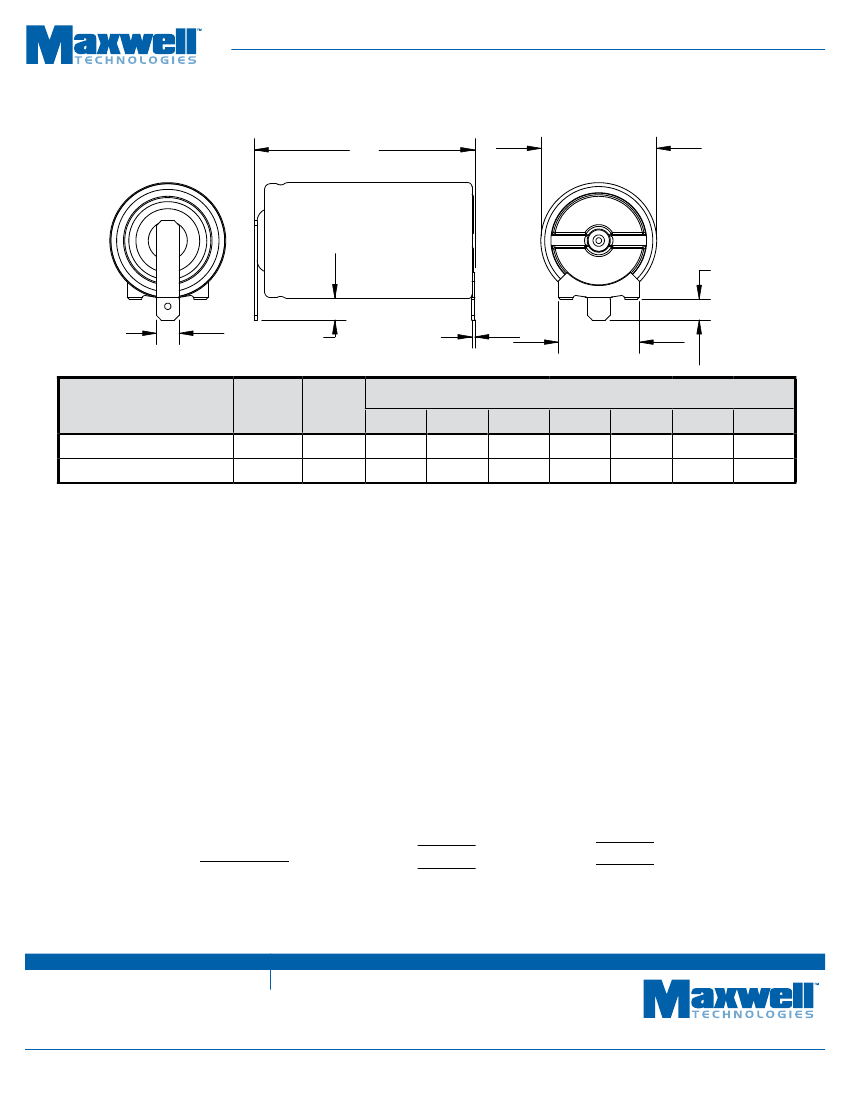

Dimensions:
L
D
c
a
Vol
(I)
s
Mass
(g)
29.0
60.0
t
b
Size (mm)
Part Number
BCAP0120 P250
BCAP0310 P250
.027
.053
L
51
62
D
26
33
a
4.75
6.40
b
16.0
22.9
c
5.9
5.9
s
6.9
6.2
t
0.5
0.8
Product dimensions and specifications may change without notice. Please contact Maxwell Technologies
directly for any technical specifications critical to application.
>
>
Mounting Recommendations:
Markings
Solder tabs to PCB. See application note for further information and slot spacing recommendations
Rated capacitance, rated voltage, part number, manufacturer, positive and negative terminal, warning
marking, UL symbol, lot number
>
Additional Technical Information:
Capacitance and ESR, DC measured per document 1007239
Ic= Leakage current after 72 hours, 25˚C
Rth = Thermal resistance
E
max
=
½
CV
2
3600 x
mass
V
2
P
max
=
4R
(1khz)
mass
Patent Pending
0.12V
2
P
d
=
R (DC)
mass
lsc = short circuit current (maximum peak current)
