BT800 Series
Bluetooth v4.0 Class 1 USB HCI Modules and Dongle
The BT800 series of USB HCI modules and packaged dongle are Laird’s first dual-
mode Bluetooth v4.0 offerings, bringing support for Classic Bluetooth and
Bluetooth Low Energy (BLE) in a tiny package.
Leveraging the market-leading CSR 8510 chipset, the BT800 series provides
exceptionally low power consumption with outstanding range. Supporting the
latest Bluetooth v4.0 Specification with EDR (Enhanced Data Rate), the Laird BT800
series enables OEMs to accelerate their development time for leveraging either
Classic Bluetooth or Bluetooth Low Energy (BLE) into their operating system based
devices.

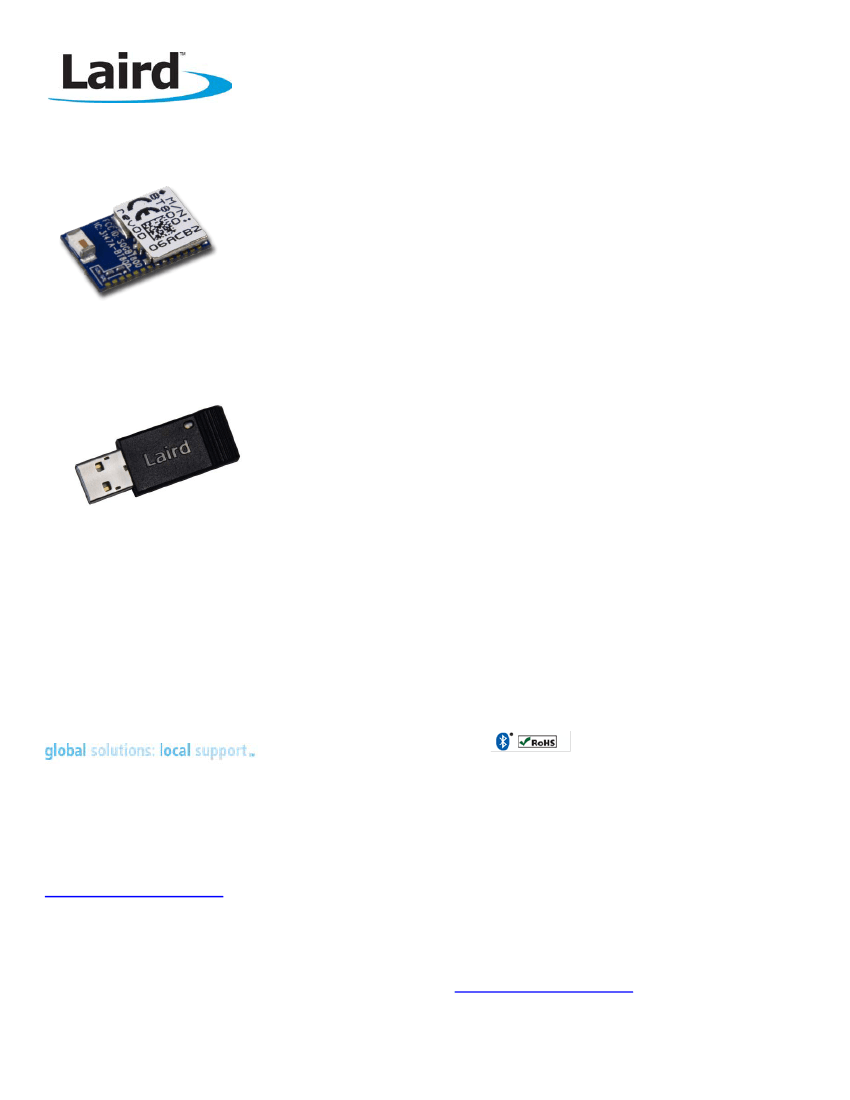

BT800 – BTv4.0 USB HCI Module
The BT800 has a footprint as small as 8.5 x 13 mm, yet output power at 8 dBm.
This makes these modules deal for applications where designers need both
performance and minimum size. For maximum flexibility in systems integration, the
modules are designed to support a full speed USB interface plus GPIO and
additionally I2S and PCM audio interfaces.
These modules present an HCI interface and have native support for Windows and
Linux Bluetooth software stacks. All BT800 series devices are fully qualified by the
Bluetooth SIG. This also allows designers to integrate their existing pre-approved
Bluetooth Host and Profile subsystem stacks to gain a Bluetooth END product
approval for their products.
The BT800 series is engineered to provide excellent RF performance with an
integrated antenna and additional band pass filters to further reduce the regulatory
and testing requirements for OEMs, ensuring a hassle free development cycle. As
an additional benefit of the BT800 series, Laird has implemented CSR’s HID (Human
Interface Device) Proxy Mode enabling out of the box HID connectivity for BLE
pointing devices and / or BLE keyboard functionality, requiring zero host device
software or configuration.
The BT820 is a packaged dongle version of the BT800 module that allows OEMs to
plug the device into any Windows or Linux device that supports USB connectors
and an inbuilt Bluetooth software stack in its operating system.
A fully featured, low-cost developer’s kit is available for prototyping, debug and
integration testing of the BT800 series modules and further reduces risk and time in
development cycles.
BT820 – Packaged BTv4.0 USB dongle
Features & Benefits
Application Areas
USA: +1.800.492.2320
Europe: +44.1628.858.940
Asia: +852.2923.0610
wirelessinfo@lairdtech.com
www.lairdtech.com/bluetooth
Bluetooth v4.0 - Dual Mode
-
Classic Bluetooth
-
Bluetooth Low Energy
Compact Footprint
Class 1 output - 8dBm
USB, GPIO, I2S & PCM
Industrial Temperature Range
64k EEPROM support for
HID Proxy Mode
Bluetooth SIG approvals
FCC, IC, and CE approvals
Medical devices
ePOS terminals
Barcode Scanners
Industrial Cable Replacement
M2M Connectivity
Automotive Diagnostic
Equipment
The details contained within this document are subject to change. Download the
product specification from
www.lairdtech.com/bluetooth
for the most current
specification.
BT800 Series
Bluetooth v4.0 Class 1 USB HCI Modules and Dongle
CATEGORIES
Wireless Specification
FEATURE
Bluetooth®
Frequency
Max Transmit Power
Receive Sensitivity
Range
Data Rates
Host Interface
Operational Modes
Coexistence
Supply Voltage
Power Consumption
Antenna Option
Physical
USB
GPIO
HCI
HID Proxy Mode
802.11 (Wi-Fi)
Supply
Current
Internal
Dimensions
IMPLEMENTATION
V4.0 Dual Mode
2.402 - 2.480 GHz
Class 1
+8dBm from antenna
-89dBm
Circa 100 meters
Up to 3 Mbps (over the air)
Full Speed USB 2.0
4 configurable lines
Host Controller Interface over USB
Human Interface Device
2 and 3 wire CSR schemes supported
(Unity-3;Unity-3e and Unity+)
1.7V – 3.6V
TX (Max) - <80mA
Sleep: 200uA
Multilayer ceramic
8.5 x 13 x 1.6 mm (BT800 - Module)
9.3 x 13.05 x 2.3mm (BT810 – Carrier Board)
16 x 43 x 11 (BT820 – Packaged USB dongle)
Environmental
Miscellaneous
Approvals
Operating
Storage
Lead Free
Warranty
Bluetooth®
FCC / IC / CE
-30C to +85C
-40C to +85C
Lead-free and RoHS compliant
1 Year
Approved
All BT800 series
Ordering Information
BT800
BT810
BT820
DVK-BT800
BTv4.0 Dual Mode USB HCI Module
BTv4.0 Dual Mode USB HCI Module (Carrier Board)
BTv4.0 Dual Mode USB Dongle
Development Kit for BT800 Module
