BK/HKP-W-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK/HKP-W-R

BK/HKP-W-R: Descriptionfuse hldr cart 250v 30a pnl mnt; CategoryCircuit protection; File Size150KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

BK/HKP-W-R Overview

fuse hldr cart 250v 30a pnl mnt

BK/HKP-W-R Parametric

Parameter Name	Attribute value
Datasheets
1/4" x 1-1/4" Fuseholders
Product Photos
HKP or ending L or W
BK/HKP-BBHH-R
Standard Package	100
Category	Circuit Protecti
Family	Fuseholders
Fuseholder Type	Holde
Fuse Type	Cartridge
For Use With/Related Products	3AG
Fuse Size	1/4" Dia x 1-1/4" L (6.35mm x 31.8mm)
Number of Circuits	1
Voltage	250V
Current Rating	30A
Mounting Type	Panel Mou
Orientati	-
Termination Style	Solder Lug
Contact Material	Brass
Contact Finish	Ti
Dynamic Catalog	HKP Series
Other Names	283-3826BK-HKP-W-RBK/HKP-W-R-NDBK/HKPWR

Preview

Download Datasheet

View All

⁄

" x 1

⁄

" Fuse Holders

HKP Panel-Mount Series

Description

• For

⁄

" x 1

⁄

" (6.3 x 32mm) fuses

• Maximum panel thickness

⁄

" (7.9mm) thick

• Bayonet-type knob

• Vibration resistant

• Military version is designated FHN26G1

• Standard plastic nut

• Optional metal nut

• Cap – 9435-1/2

• Neoprene washer – 9732

Agency Information

• UL Recognized: IZLT2, E14853

• CSA Component Acceptance:

Class 6225-01, File 47235

• CE (HKP HKP-L, HKP-W, HKP-OO)

Ordering

• Specify packaging, product, and option code

• Optional metal nut, order seperately part number

BK/1A4806-2 (100 parts minimum)

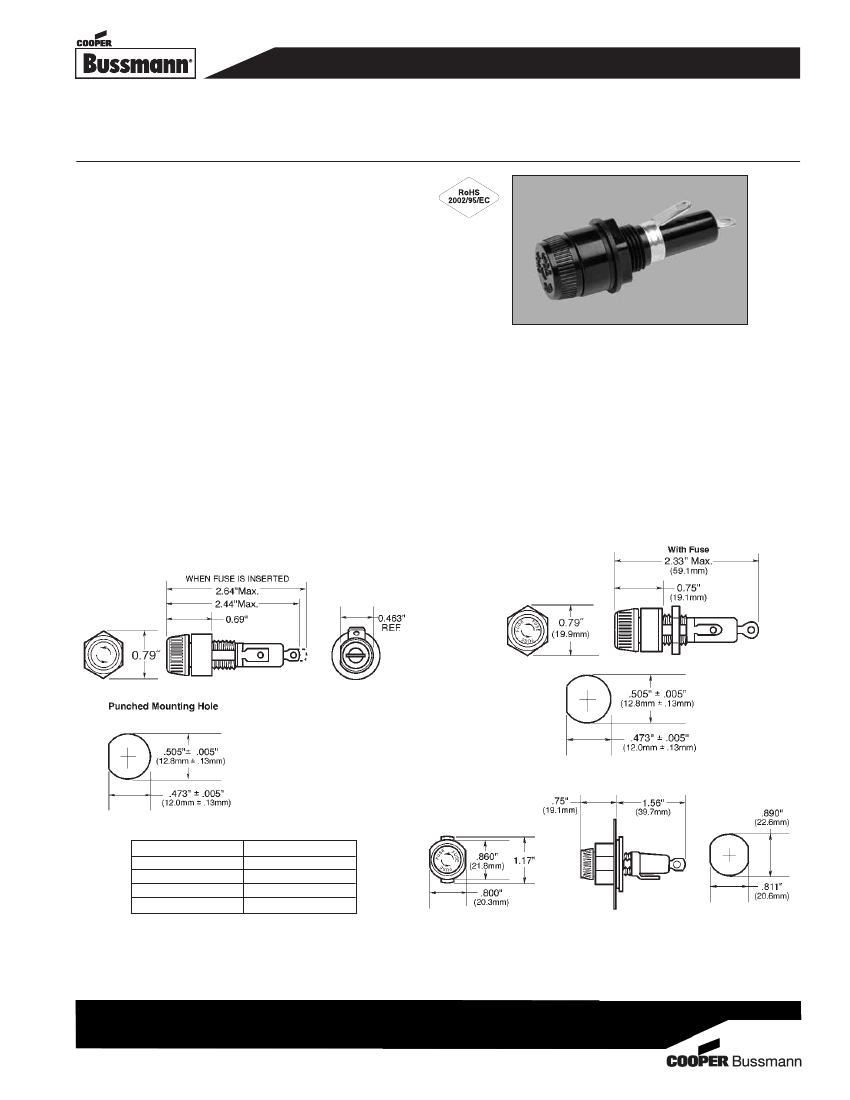

Dimensions - in (mm)

Drawing Not to Scale

HKP-BBHH, HKP-HH, HKP-LW-HH

HKP, HKP-L, and HKP-W

Environmental Data

• Temperature rating (RTI): The mounting body for

all devices has a temperature rating of 150°C.

The knob for these devices are molded plastic

with a temperature rating of 150°C.

• Meets UL 94HB

• Terminal Strength: 5 pounds

• Torque: Mounting – 20 inch-pound

• Salt Spray (corrosion): Test condition B

HKP-OO

Component

Terminal

Body

Cap

Nut

Material

Tin-Plated Brass

Thermoset

Thermoplastic

0608

BU-SB07473

Page 1 of 2

Data Sheet 2106
