767143203FPTR13 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 767143203FPTR13

767143203FPTR13: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.3W, 20000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 3922,; CategoryPassive components The resistor; File Size364KB，7 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

767143203FPTR13 Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.3W, 20000ohm, 50V, 1% +/-Tol, -100,100ppm/Cel, 3922,

767143203FPTR13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	224699832
Reach Compliance Code	compliant
Country Of Origin	Malaysia
ECCN code	EAR99
YTEOL	6.5
structure	Rectangular
Component power consumption	0.2 W
The first element resistor	20000 Ω
Installation features	SURFACE MOUNT
Network Type	Isolated
Number of components	1
Number of functions	7
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.16 mm
Package length	9.91 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	5.59 mm
method of packing	TR, PLASTIC, 13 INCH
Rated power dissipation(P)	1.3 W
Rated temperature	70 °C
resistance	20000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	20000 Ω
size code	2239
surface mount	YES
Temperature Coefficient	100 ppm/°C
Terminal surface	TIN SILVER COPPER OVER NICKEL
Terminal shape	GULL WING
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

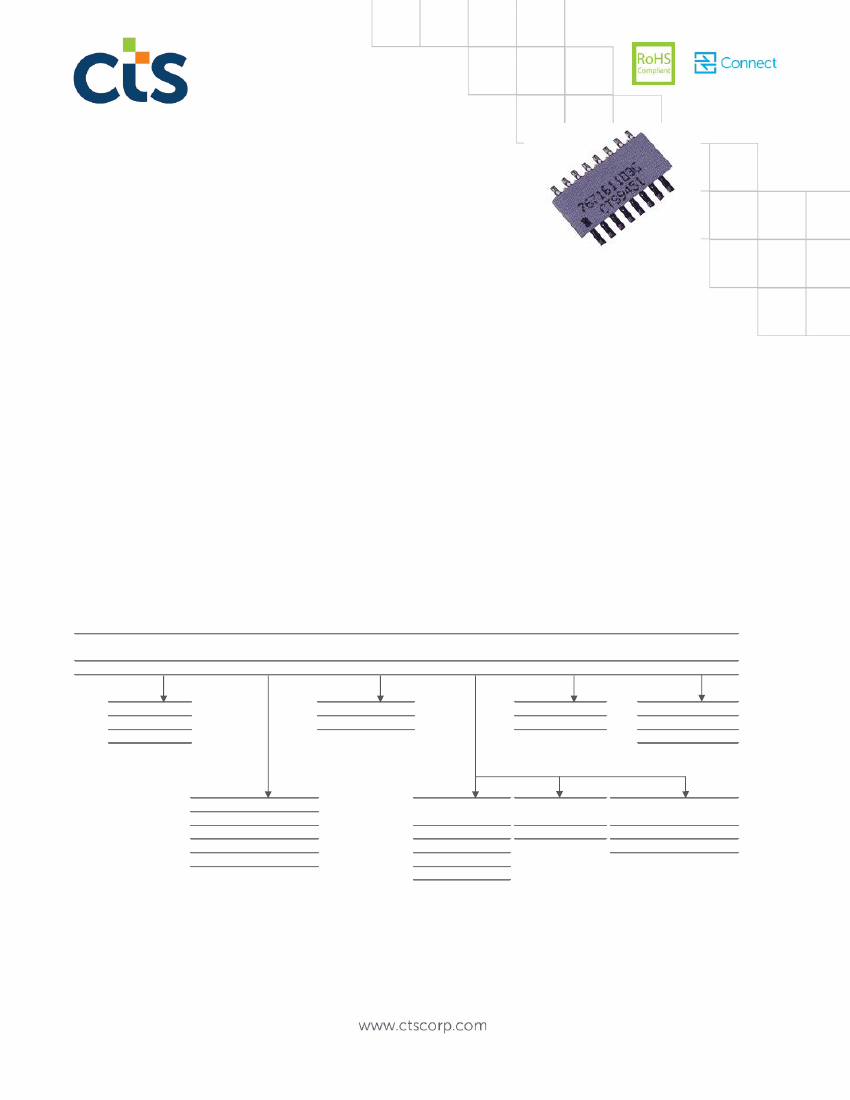

767 Series

Features



Surface Mount Resistor Network

Surface Mount Gull Wing Package

Solid Ceramic Construction

Medium Body Design – 5.59mm

No Internal Dendrite Growth

Meets EIA PDP 100 SOGN-0002 Outline

Requires 30% Less Board Space Than Molded

Products of the Same Power Rating



Tape and Reel Packaging or Slide Pack

RoHS Compliant in Accordance with EU Directive 2011/65/EU

- Lead-Free Termination Finish

- Exemption 7(c)-I, Electrical and electronic components containing

lead [Pb] in glass

Part Weight:

14 Pin

•

234.10mg

16 Pin

•

266.00mg

Applications



Telecom Infrastructure



Optical Networking



Wireless Networks



Edge Routers



Internet/Network Security



Storage Area Networks



Network Attached Storage



Switches



RAID Controllers

Description

767 Series Resistor Networks are single packaged devices containing an array of homogeneous resistor elements.

CTS network designs provide a smaller circuit footprint, excellent reliability, improved TCR tracking and resistor

tolerance matching; while helping to save placement costs by reducing application component count.

Ordering Information

Model

767

N um ber

of Pi ns

Schem a ti c

Res i s tor

Code

103

Res i s tor

T ol era nce

RoHS

Com pl i a nt

Pa cka g i ng

T R13

Code

Pin Count

14 Pins

16 Pins

Code Resistor Value *

10k ohm

103

* See Addendum for

Standard EIA Values

Code

Compliance

RoHS

Packing

Code

Slide Pack

Blank

TR13 Tape & Reel, 13"

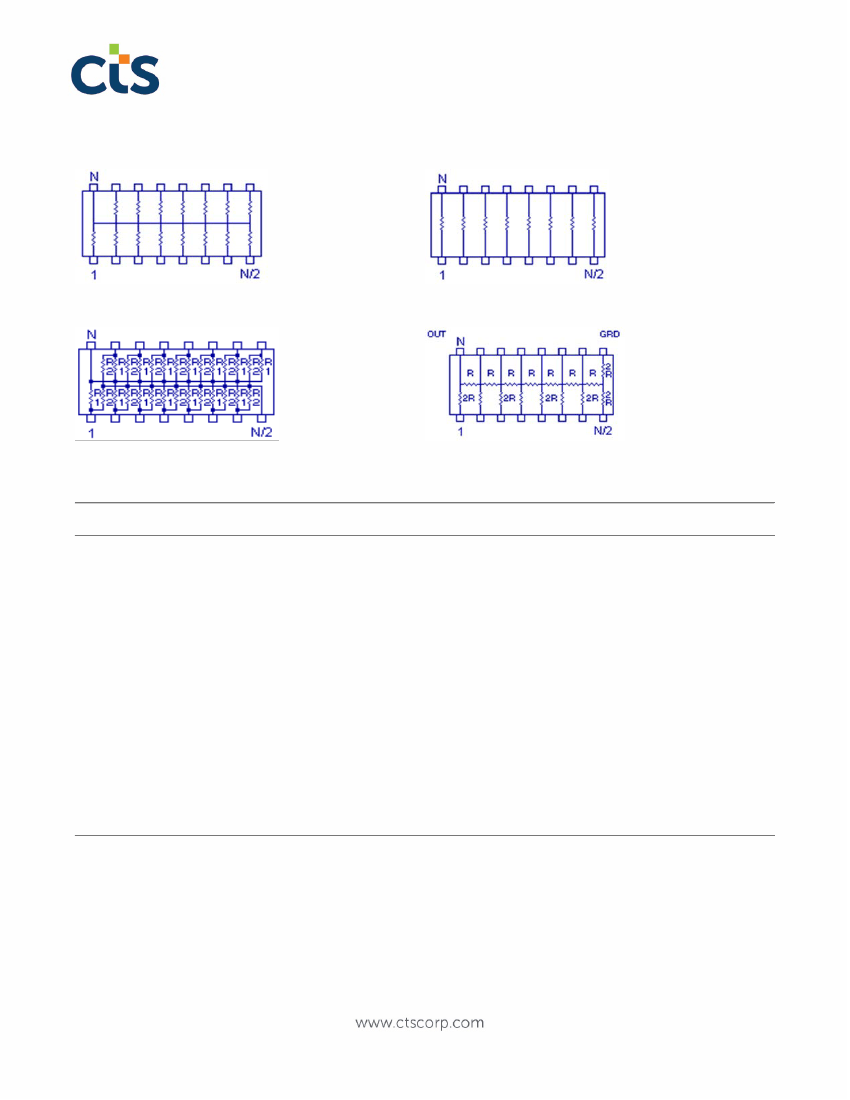

Schematic Type

Code

Bussed Circuit

Isolated Circuit

5 Dual Terminator Circuit

Ladder Circuit

Schematic Types 1 & 3 Schematic Type 5

Tolerance

Code

Code Tolerance

±2% [std]

±2%

Blank

±1%

±0.5%

±5%

Schematic Type 7

Tolerance

Code

±1 LSB

±0.5 LSB

[LSB = Least Significant Bit]

Notes:

1. No dashes or spaces to appear in part number.

2. Not supported per PCN ECP-3200029. Use code "G" as standard platform tolerance.

N ot a l l perf orm a nce com bi na ti ons a nd res i s tor va l ues m a y be a va i l a bl e.

Conta ct your l oca l CT S Repres enta ti ve or CT S Cus tom er Servi ce f or a va i l a bi l i ty.

This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this

product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.

DOC# 008-0349-0 Rev. F

Page 1 of 7

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
