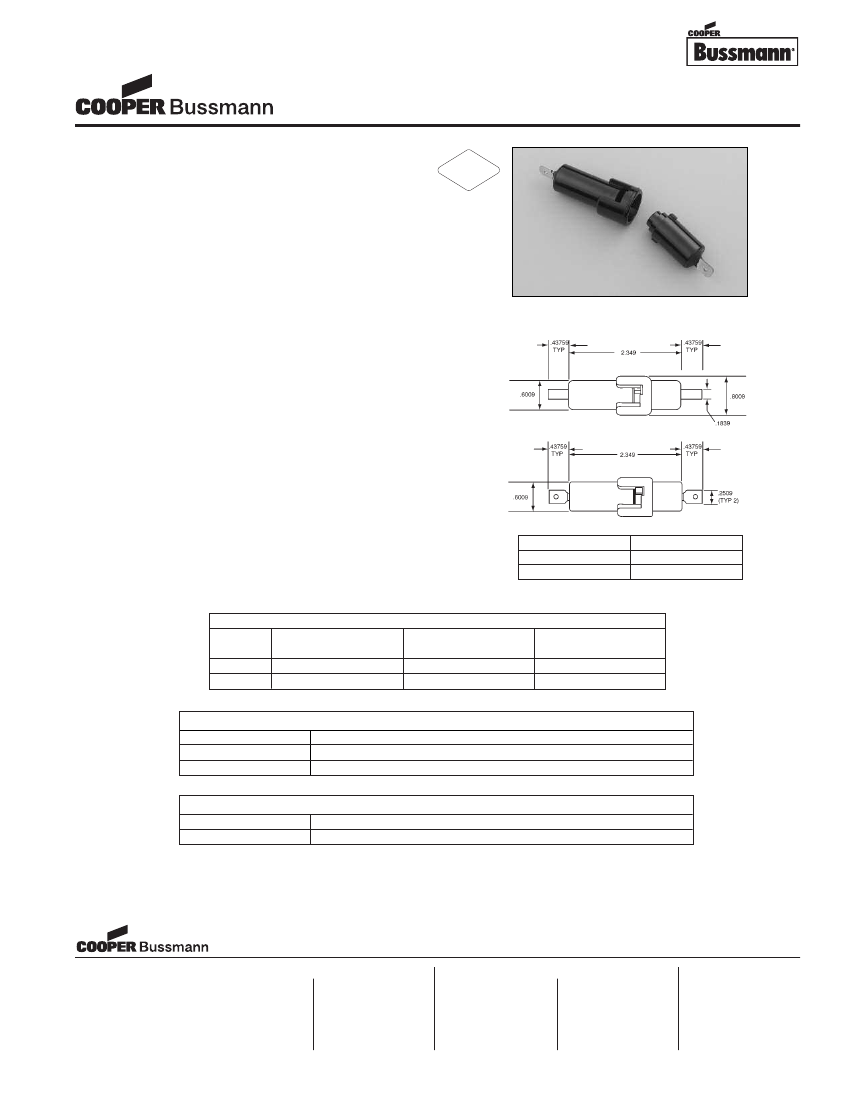

1/4" x 1-1/4" Fuseholders
HFA In-Line Waterproof Series
Description
• For 1/4" x 1-1/4" (6.35mm x 31.8mm) fuses
• Waterproof for exposed locations
• Accepts #16 to #12 copper wire
• Copper crimp lead material
• Recommended crimp tools:
• Thomas & Betts – WT-112M
• Thomas & Betts – ERG-2002
• Channelock No. 909
• High temperature, flame retardant,
phenolic meets UL 94 HB
• Crimp or 1/4" quick connect terminals
• In-line connection
Agency Information
• UL Recognized: (IZLT2, E14853) HFA recognized with
use of No. 12 AWG copper conductors secured with
Thomas & Betts crimping tool WT-180
• HFA-HH not UL Recognized
Environmental Data
• Temperature Rating (RTI): 150°C
Ordering
• Specify packaging, product, and option code
RoHS
2002/95/EC
Dimensions
Drawing Not to Scale
Component
Body
Crimp
Material
Phenolic
Copper, Tin-Plated
SPECIFICATIONS
Product
Code
HFA
HFA-HH
Voltage
Rating
250V
250V
Current
Rating
20A
20A
Terminal
Crimp
1/4 Quick Connect
PACKAGING CODE
Packaging Code
Blank
BK
Description
10 pieces of fuseholders packed into a carton
20 pieces of fuseholders packed into a carton
OPTION CODE
Option Code
-R
Description
RoHS compliant version
Visit us on the web at:
www.cooperbussmann.com
Data Sheet 2115 09/09
