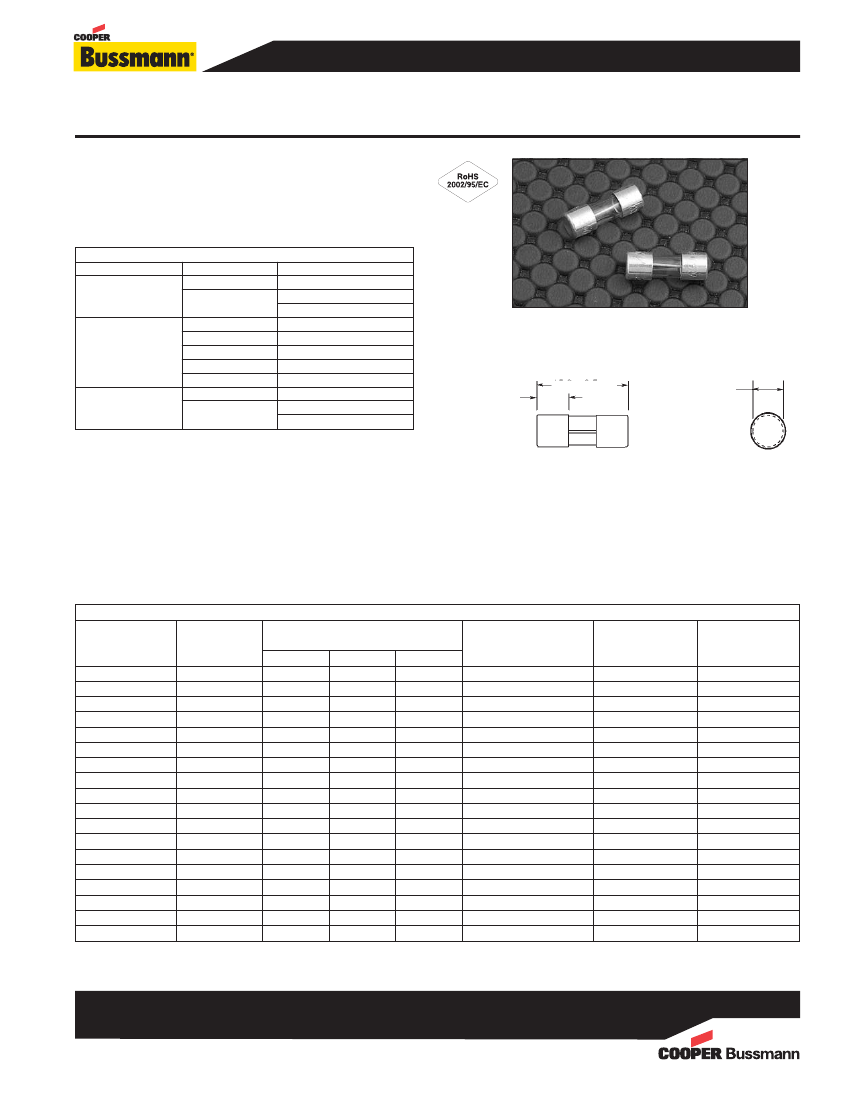

5 x 15mm Time-Delay Glass Tube Fuses
C519 Series
Description
• Time-delay
• 5 x 15mm physical size
• Nickel-plated brass endcap construction
• UL Listed product meets standard UL 248-14
Electrical Characteristics
Rated Current
Amp Rating
Opening Time
135%
60 minutes max.
125mA - 250mA
3 seconds min.
200%
120 seconds max.
100%
4 hours min.
470mA
30 minutes max.
350mA
600mA
90 seconds max.
2A
2 seconds max.
6A
500 milliseconds max.
135%
60 minutes max.
375mA - 5A
3 seconds min.
200%
120 seconds max.
Dimensions - mm
Drawing Not to Scale
14.5 ± 0.5
5.0 (Typ.)
5.2 ± 0.3
Agency Information
• UL Listed Card: C519 125mA-250mA and 375mA-3A
(Guide JDYX, File E19180)
• UL Recognized Card: C519 350mA, and 3.5A-7A
(Guide JDYX2, File E19180)
• CSA Certification Card: C519 125mA-250mA and
375mA-3A (Class 1422-01, File 53787)
Ordering
Specify product code
• Insert packaging code prefix before part number. E.g.
BK(BK1)/C519-2-R
Specifications
Part Number
C519-125-R
C519-250-R
C519-350-R
C519-375-R
C519-500-R
C519-600-R
C519-750-R
C519-1-R
C519-1.25-R
C519-1.5-R
C519-1.6-R
C519-2-R
C519-2.25-R
C519-2.5-R
C519-3-R
C519-3.5-R
C519-4-R
C519-5-R
Voltage
Rating
Vac
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
125
125
125
Interrupting Rating
at Rated Voltage (amps)
600Vac
250Vac
125Vac
-
35
10,000
-
35
10,000
25
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
35
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
100
10,000
-
-
400
-
-
400
-
-
400
Typical DC Cold
Resistance*
Ω
(Ω)
4.72
1.32
1.04
0.81
0.54
0.38
0.26
0.14
0.13
0.10
0.09
0.059
0.057
0.046
0.035
0.028
0.023
0.019
Typical
Melting I
2
t**
DC
0.101
0.467
1.169
1.531
2.280
6.982
9.162
14.289
22.961
31.989
31.156
60.256
97.724
78.163
80.426
149.279
233.346
354.813
Max.
Voltage
Drop (mV)***
770
430
530
470
440
350
310
230
220
240
200
170
180
190
150
130
130
150
* DC Cold Resistance (Measured at <10% of rated current)
** Typical Melting I
2
t (A
2
Sec) (Typical I
2
t at 10 times rated current)
*** Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)
0909
BU-SB09719
Page 1 of 2
Data Sheet 2007

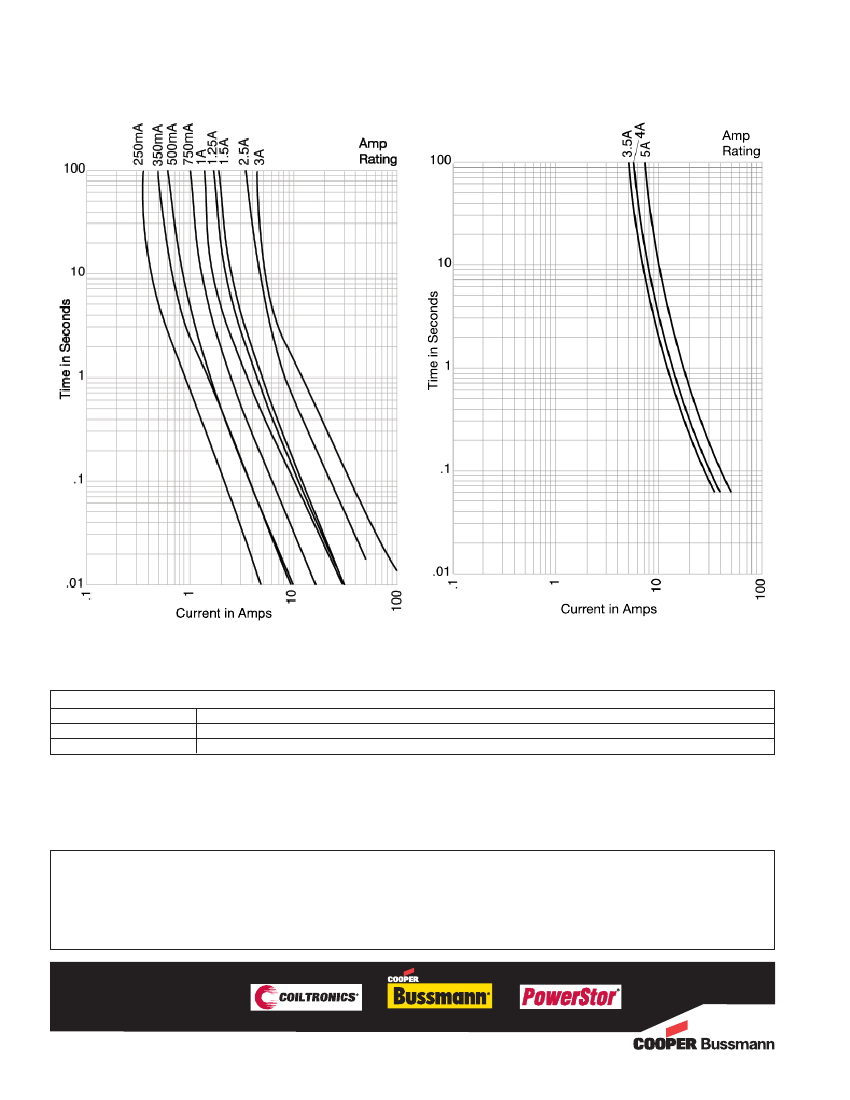

Time-Current Curve
Packaging Code
Packaging Code Prefix
BK
BK1
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a cardboard carton
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2009 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0909
BU-SB09719
Page 2 of 2
Data Sheet 2007
