PN4248 datasheet, PDF - EEWORLD Datasheet

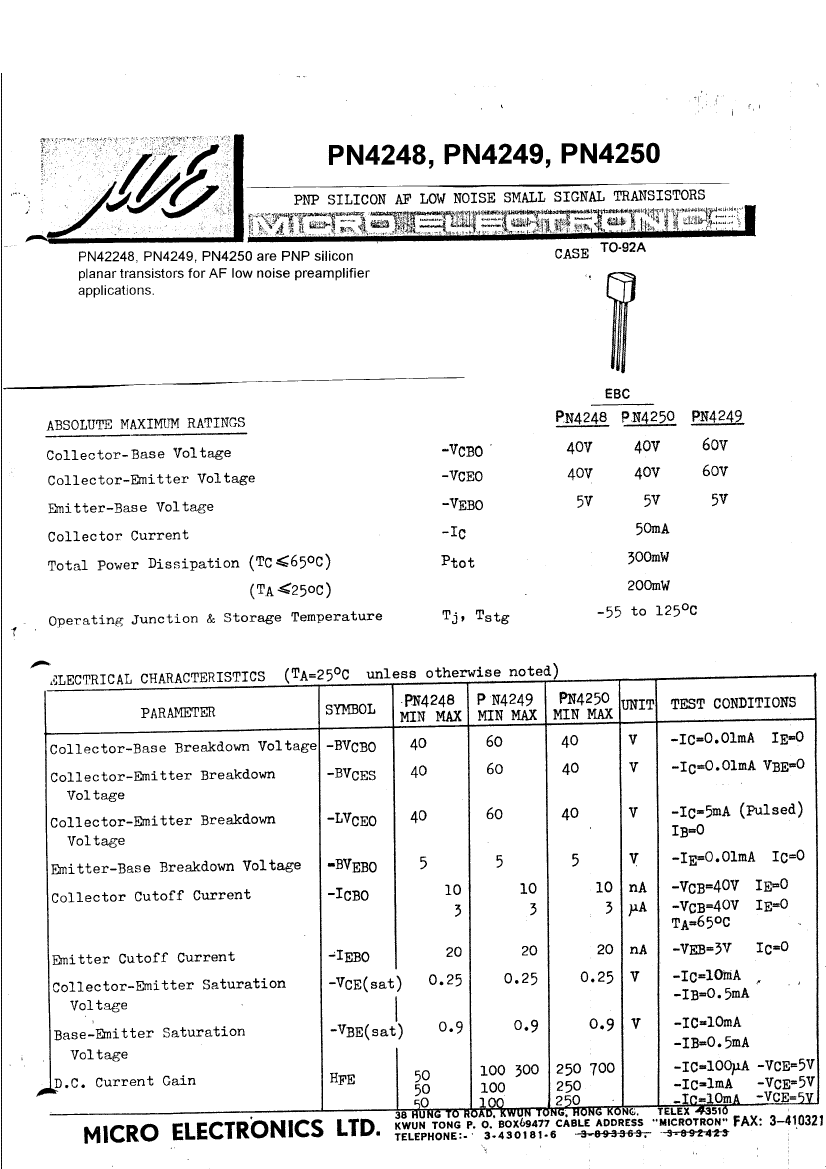

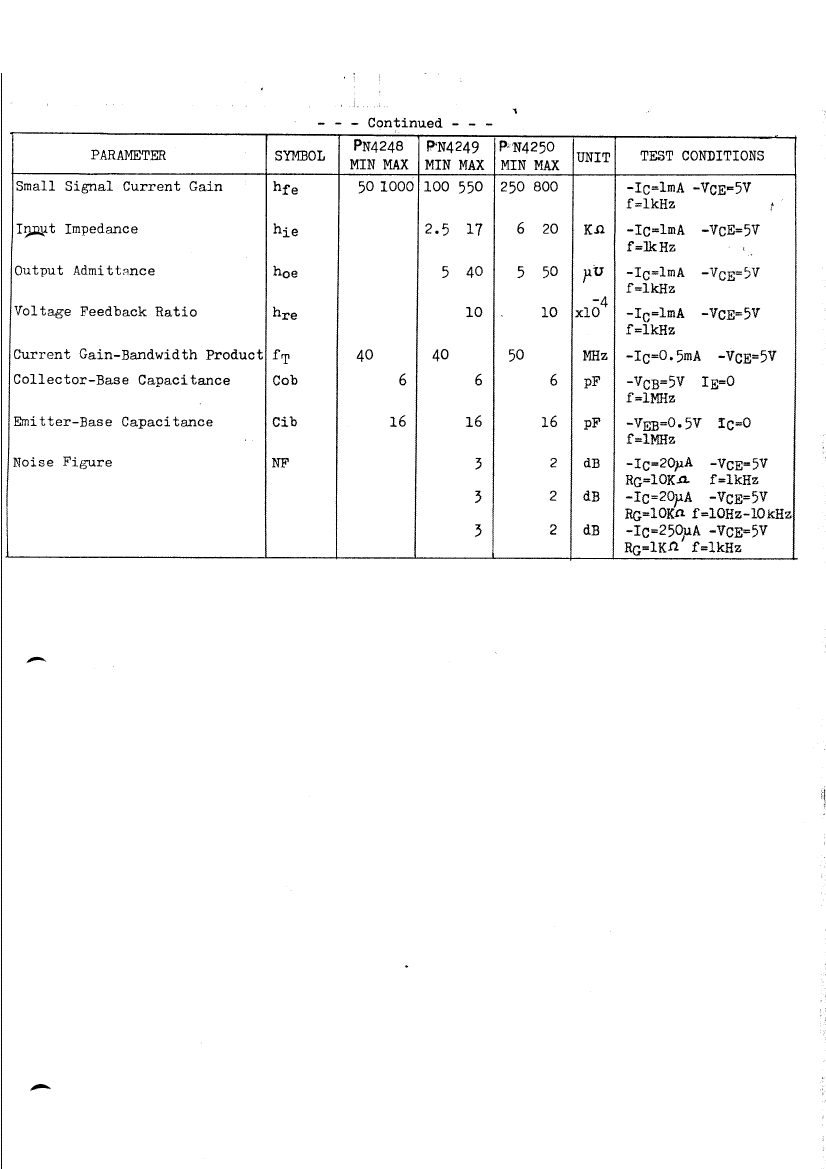

PN4248: Description50 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92A; CategoryDiscrete semiconductor The transistor; File Size93KB，2 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

PN4248 Overview

50 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92A

Parameter Name	Attribute value
Maker	Micro Electronics
Parts packaging code	TO-92A
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	40 MHz

	PN4248	PN4250	PN4249
Description	50 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92A	50 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92A	500 mA, 60 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92
Maker	Micro Electronics	Micro Electronics	Micro Electronics
Parts packaging code	TO-92A	TO-92A	TO-92A
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Contacts	3	3	3
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	0.05 A	0.05 A
Collector-emitter maximum voltage	40 V	60 V	40 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	250	100
JEDEC-95 code	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	40 MHz	50 MHz	40 MHz
Maximum operating temperature	-	125 °C	125 °C
Maximum power dissipation(Abs)	-	0.6 W	0.6 W
