GT1-2PP-HU(10) Overview

coaxial cable connection of antennas, sensors, and communication trunk lines

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hirose
Reach Compliance Code	unknow
Connector type	RECTANGULAR CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	GT1
Options	GENERAL PURPOSE

Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines

Termination of coaxial cables in automotive, medical and instrumentation applications

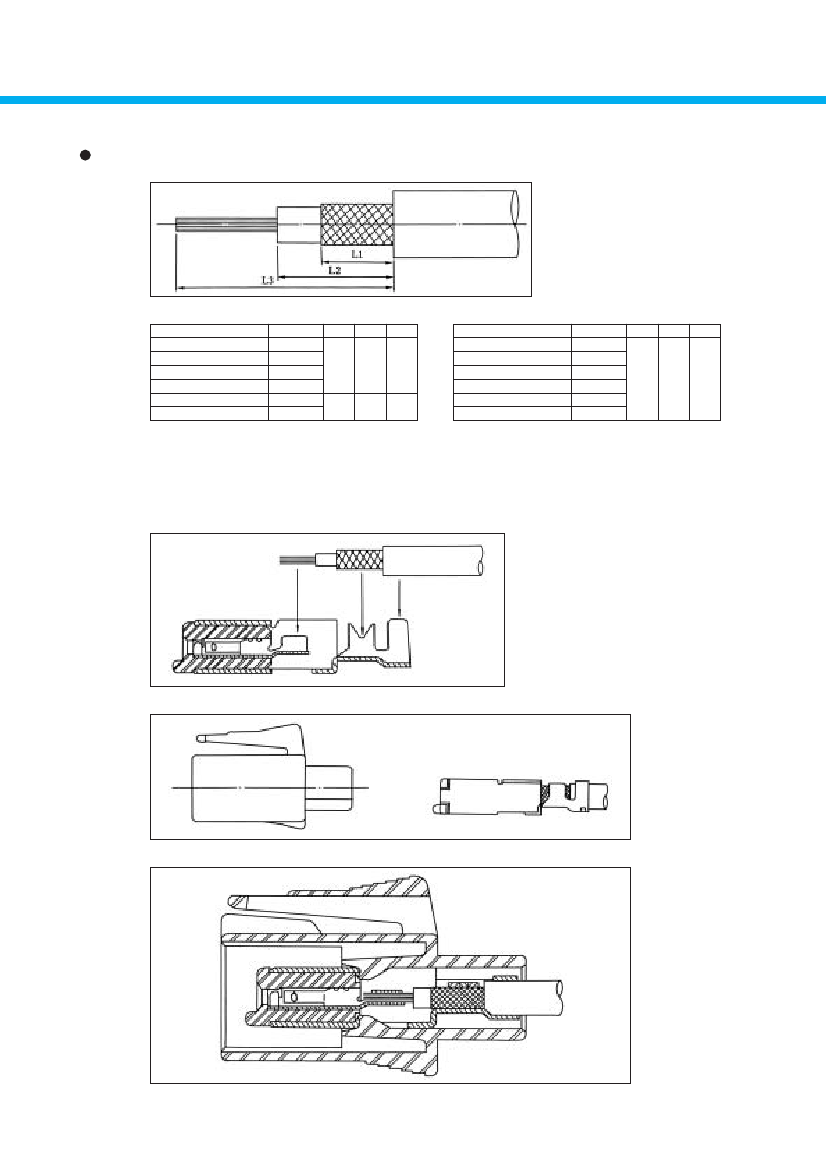

utilizes a single motion to crimp the center conductor, shield and outer Insulator.

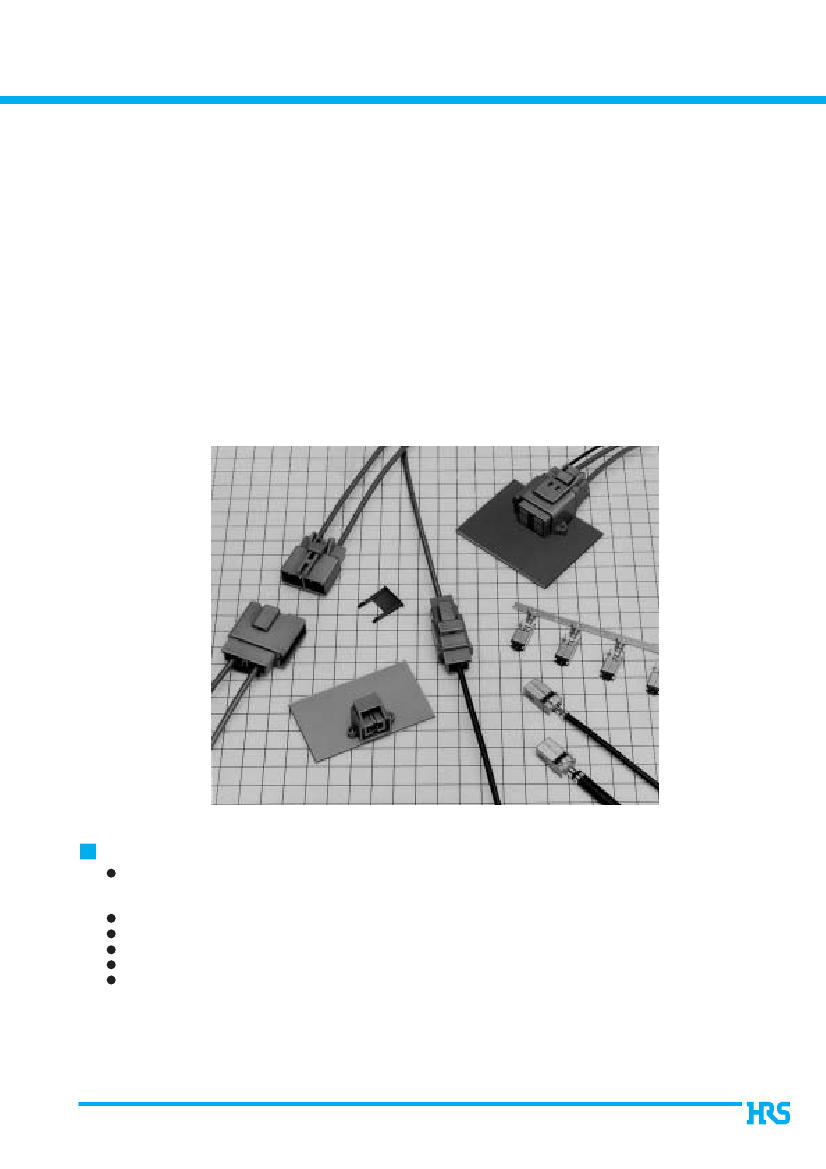

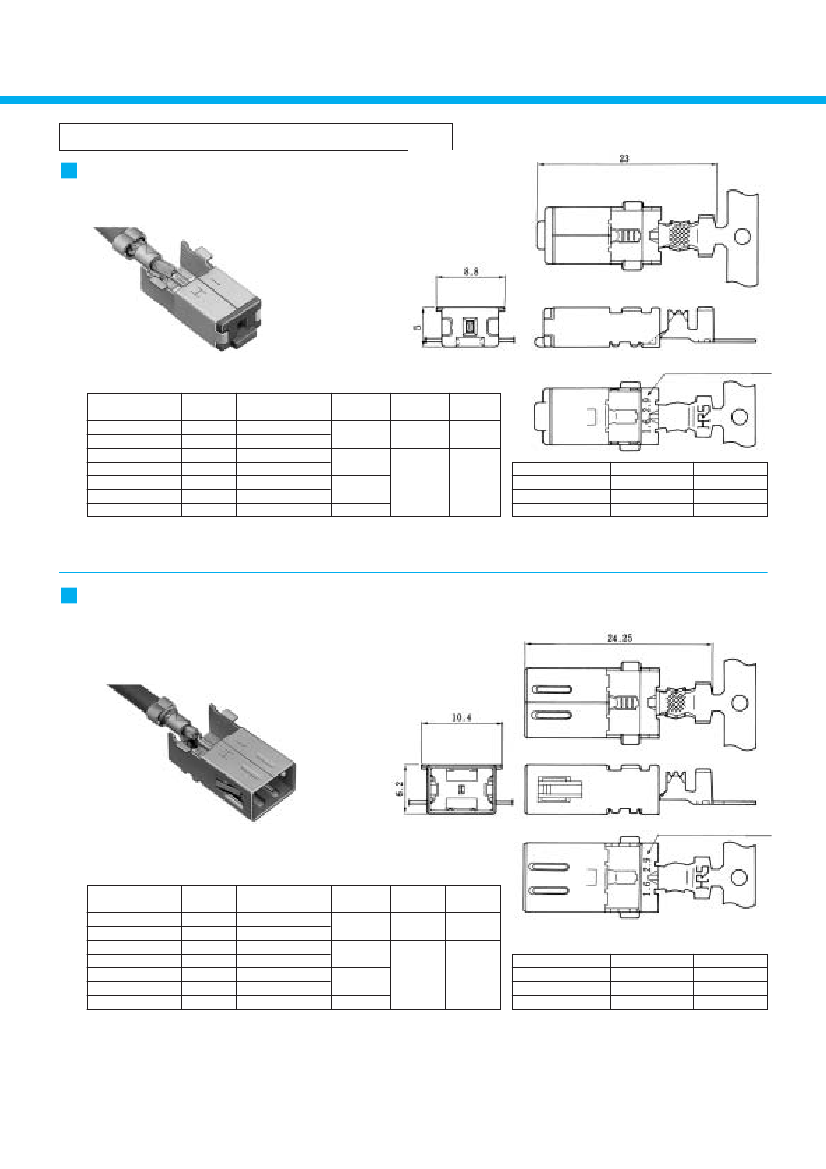

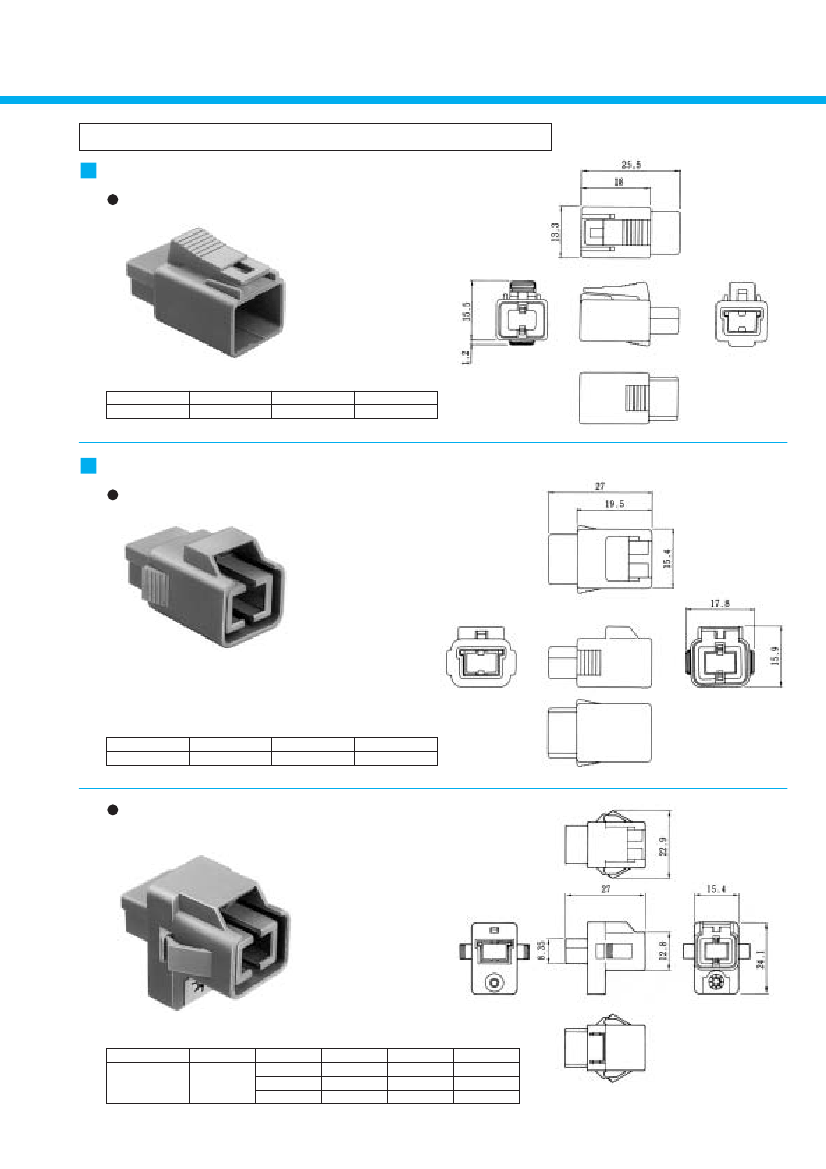

GT1 Series

— Connectors for coaxial cables —

Several types and configurations: In-line, board mounted, combinations of

coaxial cable with signal/power. Multi-position.

Features

Cost efficient termination

Highly efficient and reliable single motion crimp termination allows high volume production with semi-

automatic equipment.

Lock-release latching system

Shock / vibration resistant electrical connections

Verification of the full contact insertion

Excellent shielding effects.

Excellent High Frequency Performance

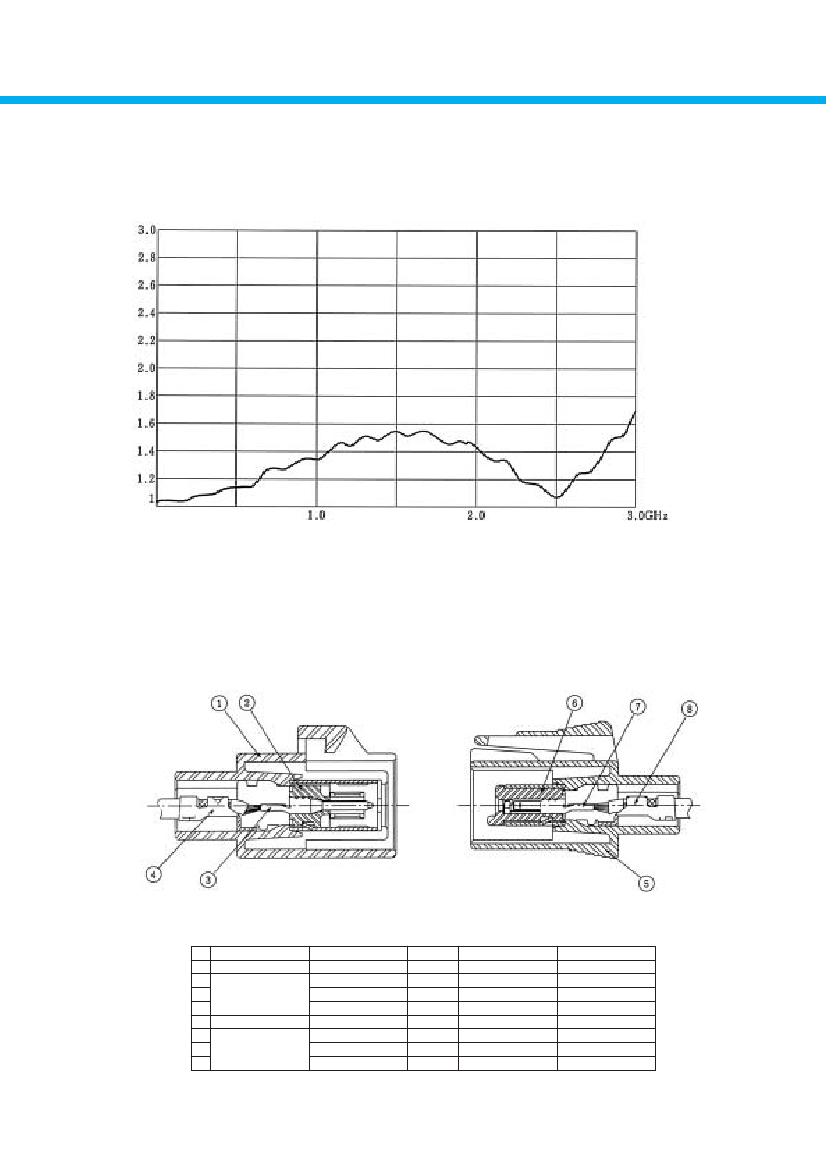

Refer to V.S.W.R. data on the following pages.

2003.6

	GT1-2PP-HU(10)	GT1-2PP-HU(20)	GT1-2PP-HU(21)	GT1-2PP-HU(40)	GT1-2PP-HU(41)	GT1-2S-33R	GT1-2S-53R	GT1-2S-55R	GT1-2S-HU(20)	GT1-2S-HU(21)
Description	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines	coaxial cable connection of antennas, sensors, and communication trunk lines
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	-	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	-	-	-	unknow	unknow
Connector type	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	-	-	-	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR
DIN compliance	NO	NO	NO	NO	NO	-	-	-	NO	NO
IEC compliance	NO	NO	NO	NO	NO	-	-	-	NO	NO
MIL compliance	NO	NO	NO	NO	NO	-	-	-	NO	NO
Manufacturer's serial number	GT1	GT1	GT1	GT1	GT1	-	-	-	GT1	GT1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-	GENERAL PURPOSE	GENERAL PURPOSE
