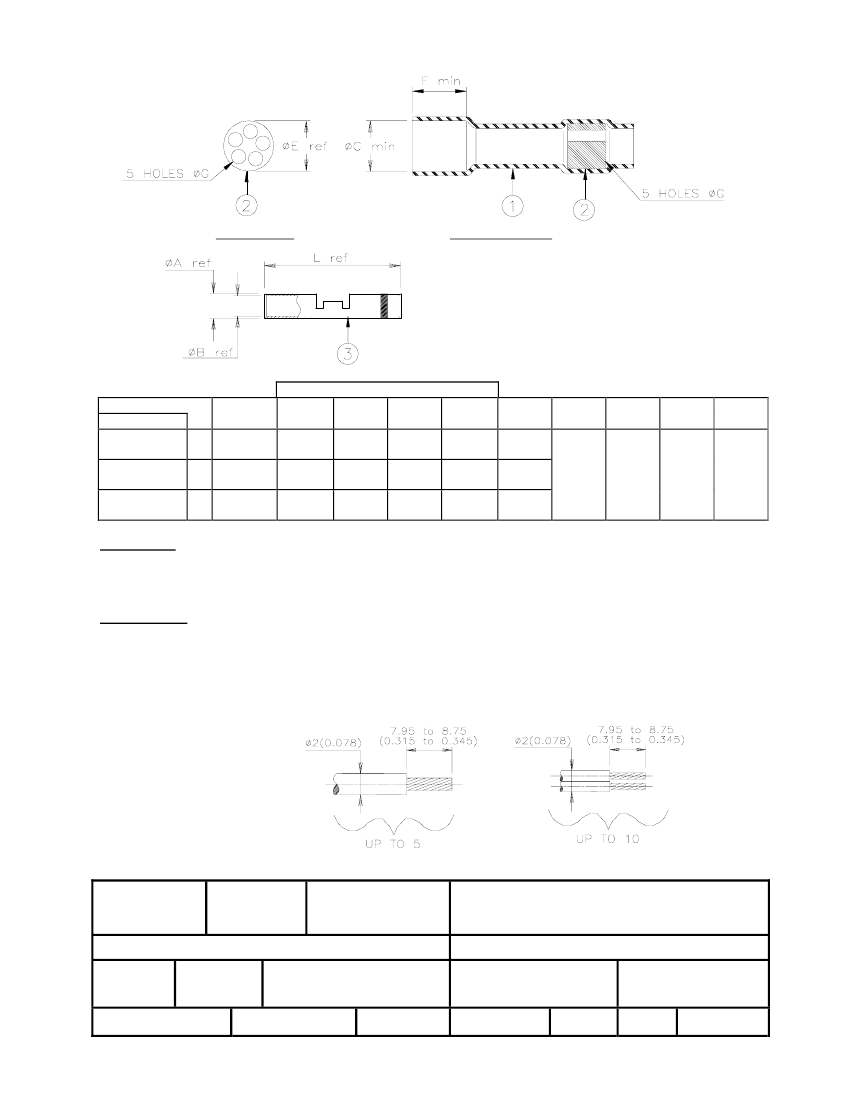

SPECIFICATION CONTROL DRAWING
5 Holes Insert
5 Holes Assembly
Product Revision
Product Name
D-436-0148
A
D-436-0149
D-436-0150
A
A
Crimp
Splice
D-609-06
D-609-07
D-609-08
L
ref
12.7
(0.500)
14.6
(0.575)
14.6
(0.575)
Product Dimensions
A
B
ref
ref
1.95
1.20
(0.077) (0.047)
2.65
1.65
(0.104) (0.066)
3.80
2.55
(0.150) (0.100)
CMA
Range
300-
1510
779-
2880
1900-
6755
Stripe
Color
Red
Blue
Yellow
øC
min
øG
min
E
ref
F
min
7.60
(0.300)
2.00
(0.078)
7.50
(0.295)
8.90
(0.350)
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.
2. MELTABLE RINGS: Thermally stabilized thermoplastic. Color: natural.
3. CRIMP BARREL: Tin plated copper alloy. Color: see table.
APPLICATION
1. These controlled sealing systems are designed to make an immersion resistant multi-wire in-line splices made with wires having tin
or silverplated conductors and insulations rated for at least +125°C.
2. Parts may be used to splice up to 5 wires having an insulation less than ø2 (0.078) or up to 10 wires (2 per hole) with insulation less
than ø1 (0.039).
3. Temperature range: -55°C to +150°C.
4. For assembly instruction, see Raychem Installation Procedure RPIP-826-00.
For best results, prepare
the cable as shown:
* A trademark of Raychem Corporation.
Raychem
THERMOFIT
DEVICES
Raychem Corporation
300 Constitution Drive
Menlo Park, CA 94025
USA
TITLE:
IN-LINE CRIMP SPLICE DEVICE
IMMERSION RESISTANT
DOCUMENT NO.:
DCR NUMBER:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
Raychem reserves the right to amend this
ANGLES: N/A
TOLERANCES:
drawing at any time. Users should evaluate
0.00 N/A
the suitability of the product for their
ROUGHNESS IN
0.0 N/A
application.
MICRON
0 N/A
D-436-0148/-0150
REPLACES:
D981042
SCALE:
None
SIZE:
A
D436014X
SHEET:
1 of 1
DRAWN BY:
DATE:
PROD. REV.
DOC ISSUE:
M. FORONDA
06/23/98
SEE TABLE
3
If this document is printed it becomes uncontrolled. Check for the latest revision
