NOTES:
1. RECOMMENDED SOLDER INSTRUCTION SEE SHEET 2
2. IP RATING: IP 67
3. SEALED TO WITHSTANDING PRESSURE UP TO 1,45 PSI
FOR 30 MINUTES AFTER SOLDERING
4. METALSHELL: ZINC DIE CAST;
min. 50µin NICKEL PLATING over COPPER
5. INSULATORS: PBT GF UL 94 V-0; GREEN
6. O-RING: SILICONE PER ASTM D2000 70 SHORE A; BLUE
7. RUBBER GASKET: TPE; BLACK
8. SEALING COMPOUND: EPOXY RESIN UL 94 V-0; BLACK
9. SIGNAL CONTACTS: COPPER ALLOY
PLATING (SEE PART NO.)
30µin HARD GOLD over min. 50µin NICKEL if
o
in PART NO.
GOLD FLASH over NICKEL if
o
in PART NO.
SOLDER CUP ACCEPTS CABLE AWG 20
10. HIGH POWER CONTACTS 20A: COPPER ALLOY
PLATING, MATING SIDE (SEE PART NO.):
o
PLEASE ADD 1 for 30µin HARD GOLD over min. 50µin NICKEL
o
PLEASE ADD 3 for GOLD FLASH over NICKEL
PLATING, TERMINATION SIDE: GOLD FLASH over NICKEL
SOLDER CUP ACCEPTS AWG 12-14
11. HEXLOCKING SCREWS: STAINLESS STEEL
12. RECOMMENDED PANEL CUT-OUT ON SHEET 2
13. RECOMMENDED TORQUE FOR MOUNTING SCREW
35Ncm (3.1 in.LB) / max. 67Ncm (6 in.LB)
14. CONNECTOR IS PART MARKED: 15-00527
o
CONEC ABC (see note 10)
n
2,7 (2x)
(5:1)
n
1,12 (25x)
D
D
17,53
+ 0,4
- 0,3
SEALING
COMPOUND
10,36
+ 0,4
- 0,3
5,99
+ 0
- 0,3
3,6
+ 0,25
-0
C
78
+ 0,3
-0
Pos. 1
Pos. A1
63,5
`
0,13
55,32
+ 0,23
- 0,02
8,23
+ 0,25
-0
C
RUBBER GASKET
PLACED ON TOP SURFACE
OF MALE INSULATOR
21,1
+ 0,3
-0
Pos. 14
10°
B
B
15-00527
o
CONEC ABC
O-RING
4-40 UNC
4,6
SEE NOTE 14
9,4
4-40 UNC
SW 4,8
AT ALL TIMES WATER RESISTANT
CONNECTORS NOT IN USE SHOULD
BE COVERED WITH A CONEC WATER
RESISTANT CAP OR WATER TIGHT HOOD.
THIS DRAWING MAY NOT BE COPIED OR
REPRODUCED IN ANY WAY, AND MAY NOT
BE PASSED ON TO A THIRD PARTY WITHOUT
WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
DO NOT ALTER CAD DRAWING BY HAND
tolerance
dim. in mm
date
name
scale:
material:
title:
2:1 (5:1)
SEE NOTES
A
A
drawn
06.05.15 Lehmenkühler
appd.
07.05.15
norm
d-old
R

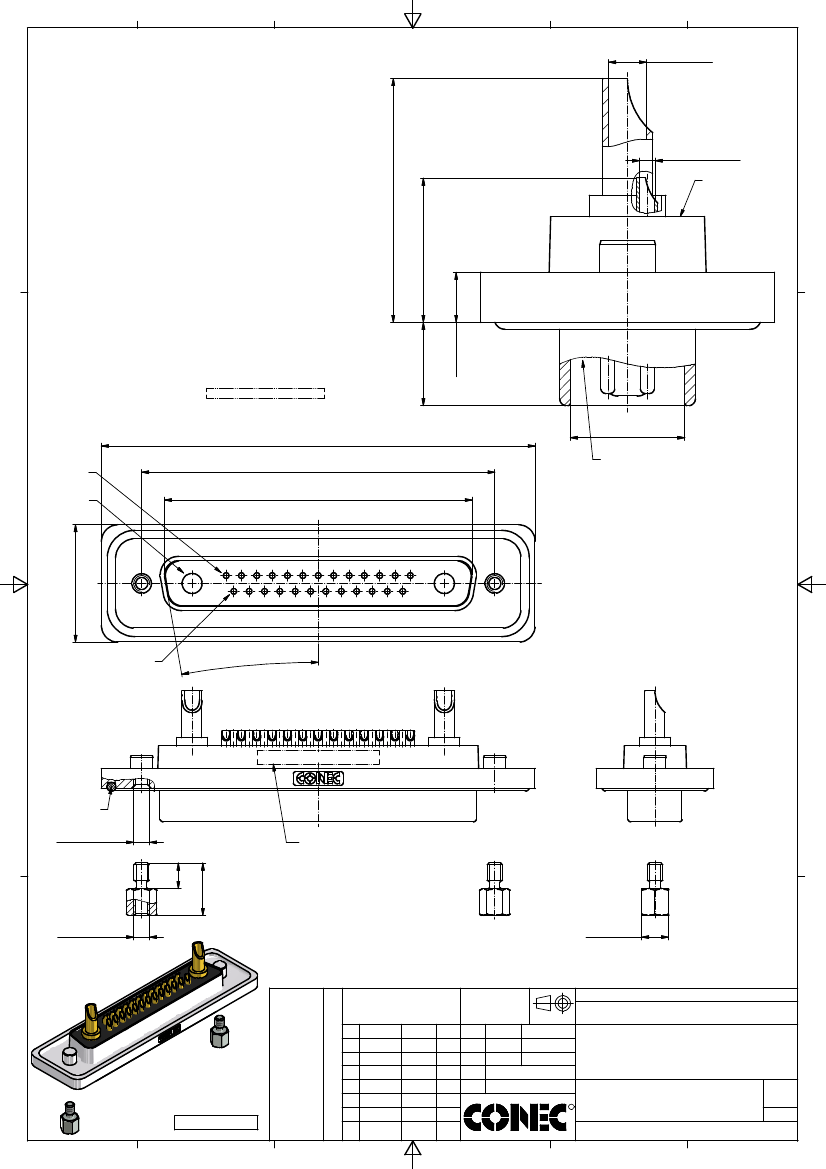

D-SUB COMBINATION MALE
27W2P SOLDER CUP
with hexlocking screw
dwg no:
DIN-
A3
sh:
1
Schmidt
a
Original
15K1A1635
part no:
RoHS compliant
F
E
rev. description
D
date
name
C
15-00527
o
(see note 10)
A
B
F
E
D
C
B
A
Solder Instruction
D
1. Cable should be prepared for soldering. The cable/wires must be pretinned.
2. Insert cable/wire into solder cup.
3. Signal Contact
3.1. Operate the soldering iron at 350° 50 Wa tt max. and use a pencil tip.
C,
3.2. Put tip to wire in solder cup.
3.3. After 1 second bring in solder.
3.4. Heat for 3 seconds longer. Do not heat contact more than 4 seconds in total.
4. Power Contact
4.1. Operate the soldering iron at 350° 100 W att max. and use a pencil tip.
C,
4.2 Apply some solder to the solder tip of the asoldering iron.
4.3. Put tip to wire in solder cup.
4.4. After 1 second bring in solder.
4.5. Heat for 5 seconds longer. Do not heat contact more than 6 seconds in total.
5. Remove soldering iron.
6. Wait until solder gets rigid again.
7. Do not solder adjacent contacts consecutively,
alternate position within the connector to minimize heat build up.
D
C
C
RECOMMENDED PANEL CUT-OUT
i
0,26 A
59,1
`
0,1
B
B
11,4
`
0,1
B
n
3,1
`
0,05
(2x)
10°
`
1°
R3
,4
`
i
0,26 B
0,
13
63,5
`
0,13
A
THIS DRAWING MAY NOT BE COPIED OR
REPRODUCED IN ANY WAY, AND MAY NOT
BE PASSED ON TO A THIRD PARTY WITHOUT
WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
DO NOT ALTER CAD DRAWING BY HAND
tolerance
dim. in mm
date
name
scale:
material:
title:
3:1
SEE SHEET 1
A
A
drawn
06.05.15 Lehmenkühler
appd.
07.05.15
norm
d-old
R
RECOMMENDED PANEL CUT-OUT
D-SUB COMBINATION MALE 27W2P SOLDER CUP
with hexlocking screw
dwg no:
DIN-
Schmidt
a
Original
15K1A1635
part no:
A3
sh:
2
A
rev. description
D
date
name
C
SEE SHEET 1
F
E
B
