EPI470302AC2H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> EPI470302AC2H

EPI470302AC2H: DescriptionGeneral Purpose Inductor, 64.8uH, 15%, 1 Element,; CategoryPassive components inductor; File Size34KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric Compare View All

EPI470302AC2H Overview

General Purpose Inductor, 64.8uH, 15%, 1 Element,

EPI470302AC2H Parametric

Parameter Name	Attribute value
Maker	PCA Electronics Inc.
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.055 Ω
Nominal inductance(L)	64.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	EPIAC2
Number of functions	1
Number of terminals	2
Maximum rated current	3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	FLAT
Tolerance	15%
Base Number Matches	1

Preview

Download Datasheet

View All

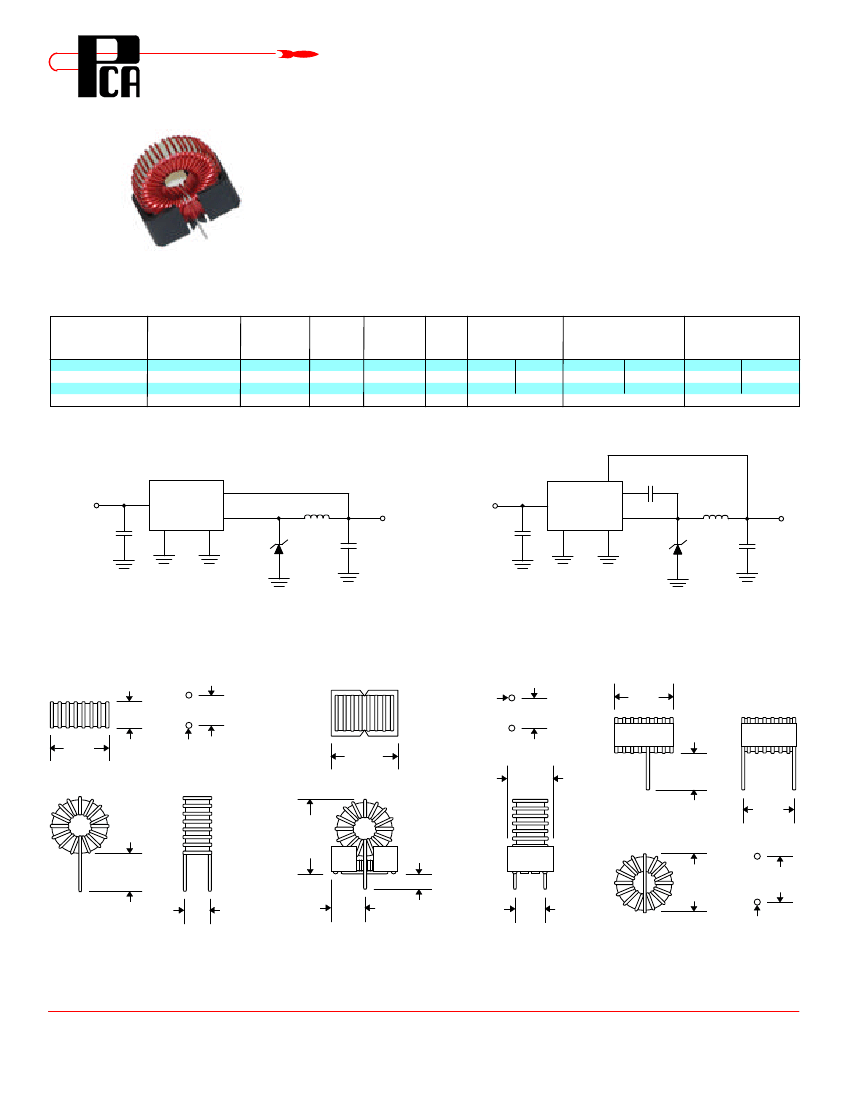

Thru-Hole Power Inductor

ELECTRONICS INC.

EPI AC2 Series

• Optimized for National’s LM267X & LM259X Series

• Low loss material ensures operation in high frequency switching

converters, such as Buck, Boost or as output averaging filter inductor

• Also suitable for use in high quality filter applications

• 150 KHz & 260 KHz Switching Frequency

• Low Cost Inductor

Primary Specification

Part

Number

EPI100502AC2

EPI150502AC2

EPI220302AC2

EPI470302AC2

National

Semiconductor

Chip

LM267X-L47

LM267X-L46

LM259X-L41

Induct.

(µH ± 15%)

@ 0 Adc

DCR

(Ω Typ.)

Induct.

(µH 10%)

@ Idc

Idc

(mA)

Core Loss

@ Vt1

@ Vt2

(mW)

Vt1

(V-µSec)

150 KHz

Vt2

(V-µSec)

260 KHz

Temp.Rise

@ Vt1

@ Vt2

°C (Typ.) °C (Typ.)

---

49 @ 52 KHz

12.8

0.012

5000

---

275

---

15.4

0.019

5000

---

275

---

19.3

0.046

3000

105

---

20.0

---

64.8

0.055

3000

330 @ 52 KHz

90 @ 52 KHz

For no header version : add “V” for Vertical Mount and add “H” for Horizonal Mount

Applications

Unregulated

DC Input

Feedback

+Vin

Regulated

Output

Load

Cout

On/Off

Gnd

Vin

8V-40V

Cin

LM259X

Vsw

Output

1N5822

µH

LM267X

Vsw

10nF

µH

Vout

Cout

Cin

Gnd

On/Off

Package AC2V

Pad Layout

.280

(7.11)

.060 Ø

(1.52)

.680

Max.

(17.27)

Package AC2

Pad Layout

.060 Ø

(1.52)

.300

(7.62)

Package AC2H

.680

Max.

(17.27)

.400 Max.

(10.16)

.680

Max.

(17.27)

.470

Max.

(11.94)

.375 ± .125

(9.53 ± 3.18)

.530

(13.46)

Pad Layout

.680

Max.

(17.27)

.530

(13.46)

.750

Max.

(19.05)

.375 ± .125

(9.53 ± 3.18)

.280

(7.11)

.335

(8.51)

.110/.150

(2.79/3.81)

.300

(7.62)

.060 Ø

(1.52)

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSIXXXXXXAC2

Rev. 6

2/14/06 FT

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com

EPI470302AC2H Related Products

	EPI470302AC2H	EPI470302AC2V	EPI220302AC2V	EPI220302AC2H	EPI100502AC2V	EPI100502AC2H	EPI150502AC2V	EPI150502AC2H
Description	General Purpose Inductor, 64.8uH, 15%, 1 Element,	General Purpose Inductor, 64.8uH, 15%, 1 Element,	General Purpose Inductor, 27uH, 15%, 1 Element,	General Purpose Inductor, 27uH, 15%, 1 Element,	General Purpose Inductor, 12.8uH, 15%, 1 Element,	General Purpose Inductor, 12.8uH, 15%, 1 Element,	General Purpose Inductor, 20uH, 15%, 1 Element,	General Purpose Inductor, 20uH, 15%, 1 Element,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.055 Ω	0.055 Ω	0.046 Ω	0.046 Ω	0.012 Ω	0.012 Ω	0.019 Ω	0.019 Ω
Nominal inductance(L)	64.8 µH	64.8 µH	27 µH	27 µH	12.8 µH	12.8 µH	20 µH	20 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	EPIAC2	EPIAC2	EPIAC2	EPIAC2	EPIAC2	EPIAC2	EPIAC2	EPIAC2
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum rated current	3 A	3 A	3 A	3 A	5 A	5 A	5 A	5 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Tolerance	15%	15%	15%	15%	15%	15%	15%	15%
Maker	PCA Electronics Inc.	PCA Electronics Inc.	-	-	PCA Electronics Inc.	PCA Electronics Inc.	PCA Electronics Inc.	PCA Electronics Inc.
