Wire and Harness ID Products
Heat-Shrink/Cable Markers

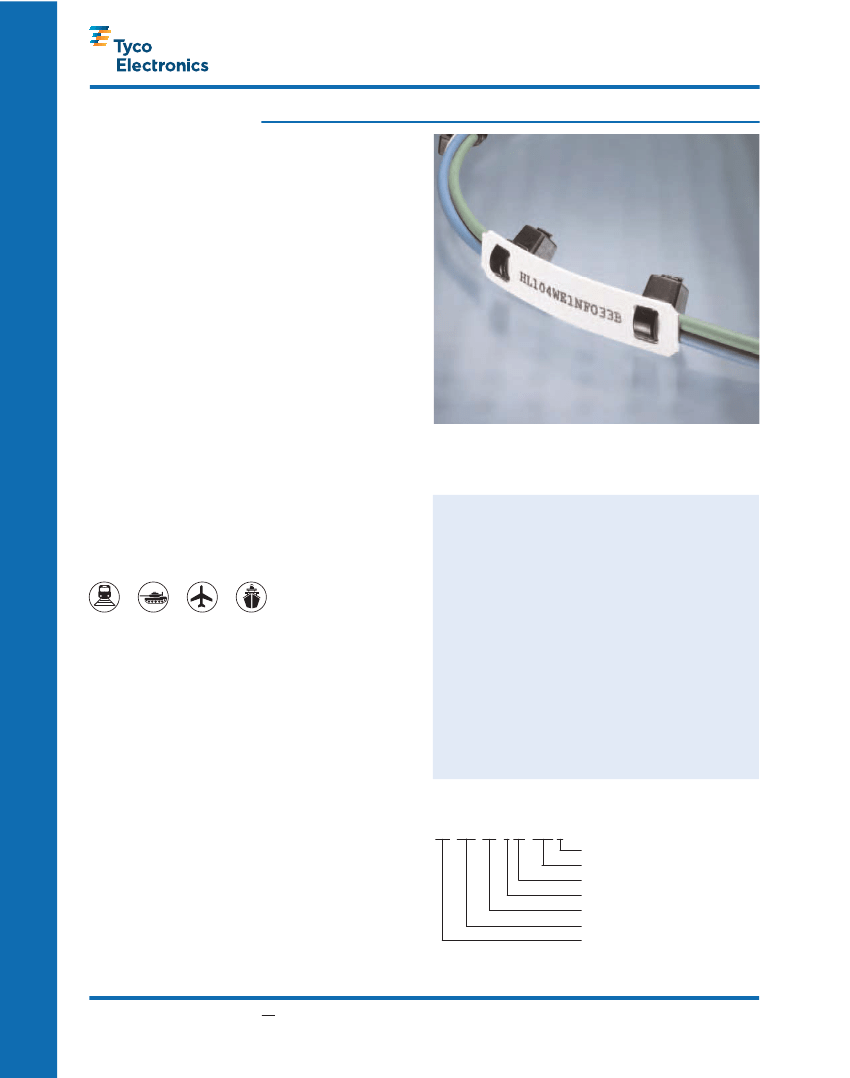

HL Flame retardant tie-on cable marker tags
Used to identify large cables and bundles either pre or post-
termination, these flame retardant HL cable markers are suitable
for use in environments with temperatures of –55°C to +135°C
(–67°F to +275°F). The markers are easily applied with standard
cable ties.
HL markers are presented as organized markers assembled onto
either a fanfolded or reeled paper carrier for ease of selection and
kitting and are available in an extensive range of sizes.
They are available with the surface designed for either dot matrix
or thermal transfer printers.
Features and benefits
I
Recommended for use where de-termination of wires is not
possible for large ID wires or wire bundles
Heat resistant to +175°C for 168 hours or +250°C for 4 hours
with no deterioration in properties
Several printable widths and heights available
Non-standard color options available
I
I
I
Temperature rating
Operating temperature range
–55°C to +135°C
–67°F to +275°F
Specifications/approvals
Tyco Electronics
Military
TTDS-037
SAE AS81531 4.6.2
MIL-STD-202 Method 215J
Industry
ASTM D 2671
Heat Shrink/Cable Markers
Printer information
Tyco Electronics printer
AM 6310 (dot matrix)
T312M (thermal transfer)
Tyco Electronics ribbon
1892BK04 (dot matrix)
1892BK03 (dot matrix —
high performance)
TMS-RJS-RIBBON-4RPSCE
Part numbering system
HL 150 YW 1 NF 033 B
OBSOLETE
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
28
NOT the LATEST
REVISION
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Pack size
Printable width (mm)
Format
Scoring
Color
Marker height
Product family
Heat-Shrink/Cable Markers
HL Flame retardant tie-on cable marker tags
Ordering information
WEB WIDTH
WIDTH
HEIGHT
Available sizes and formats
Ordering
description
HL104<color>1<format>025B
HL104<color>1<format>033B
HL104<color>1<format>038B
HL104<color>1<format>050B
HL104<color>1<format>070B
HL150<color>1<format>025B
HL150<color>1<format>033B
HL150<color>1<format>038B
HL150<color>1<format>050B
HL150<color>1<format>070B
HL203<color>1<format>025B
HL203<color>1<format>033B
HL203<color>1<format>038B
HL203<color>1<format>050B
HL203<color>1<format>070B
HL253<color>1<format>025B
HL253<color>1<format>033B
HL253<color>1<format>038B
HL253<color>1<format>050B
HL253<color>1<format>070B
Marker dimensions
(W x H)
mm
inches
45.00 x 10.40
52.00 x 10.40
58.00 x 10.40
70.00 x 10.40
90.00 x 10.40
45.00 x 15.00
52.00 x 15.00
58.00 x 15.00
70.00 x 15.00
90.00 x 15.00
45.00 x 20.30
52.00 x 20.30
58.00 x 20.30
70.00 x 20.30
90.00 x 20.30
45.00 x 25.30
52.00 x 25.30
58.00 x 25.30
70.00 x 25.30
90.00 x 25.30
1.800 x 0.400
2.100 x 0.400
2.300 x 0.400
2.750 x 0.400
3.500 x 0.400
1.800 x 0.600
2.100 x 0.600
2.300 x 0.600
2.750 x 0.600
3.500 x 0.600
1.800 x 0.800
2.100 x 0.800
2.300 x 0.800
2.750 x 0.800
3.500 x 0.800
1.800 x 1.000
2.100 x 1.000
2.300 x 1.000
2.750 x 1.000
3.500 x 1.000
Printable area
(W x H)
mm inches
25.00 x 10.40
33.00 x 10.40
38.00 x 10.40
50.00 x 10.40
70.00 x 10.40
25.00 x 15.00
33.00 x 15.00
38.00 x 15.00
50.00 x 15.00
70.00 x 15.00
25.00 x 20.30
33.00 x 20.30
38.00 x 20.30
50.00 x 20.30
70.00 x 20.30
25.00 x 25.30
33.00 x 25.30
38.00 x 25.30
50.00 x 25.30
70.00 x 25.30
1.000 x 0.400
1.300 x 0.400
1.500 x 0.400
2.000 x 0.400
2.750 x 0.400
1.000 x 0.600
1.300 x 0.600
1.500 x 0.600
2.000 x 0.600
2.750 x 0.600
1.000 x 0.800
1.300 x 0.800
1.500 x 0.800
2.000 x 0.800
2.750 x 0.800
1.000 x 1.000
1.300 x 1.000
1.500 x 1.000
2.000 x 1.000
2.750 x 1.000
Pack size
NF
550
550
550
550
550
550
550
550
550
550
550
550
550
550
550
300
300
300
300
300
TS
1000
1000
1000
1000
1000
500
500
500
500
500
500
500
500
500
500
250
250
250
250
250
Options
Prescoring
Package sizes
Colors
Not available on these products – this should always be 1.
Standard
Standard
Code
Nonstandard
Code
Format
B
White
WE
Red
RD
Yellow
YW
Blue
BE
NF – Dot matrix printing (fanfold/single sided)
TS – Thermal transfer (reel/single sided)
Printable Width On Marker
025
033
038
050
070
25mm
(1”)
33mm
(1.3”)
38mm
(1.5”)
50mm
(2”)
70mm
(2.75”)
Ordering information: Specify product name, marker height, color, scoring option (always 1), format, printable width, and pack size.
Ordering example: HL150YW1NF033B
