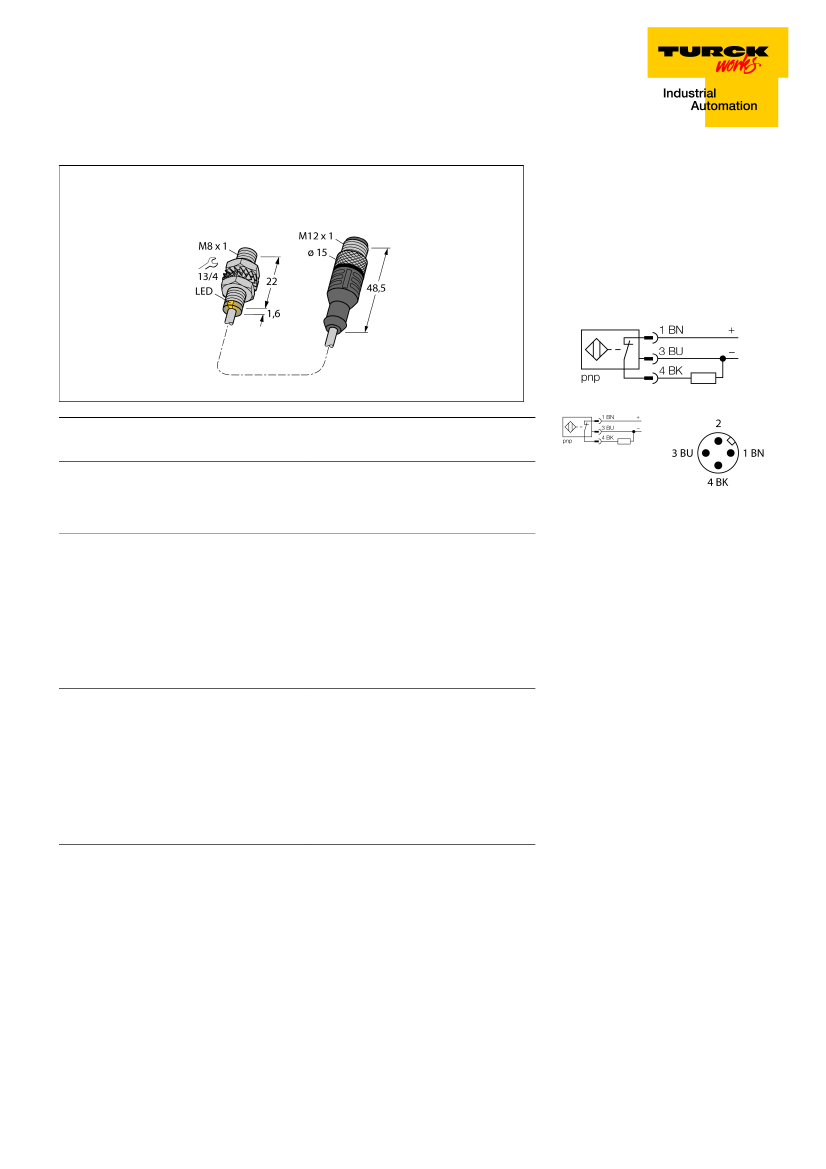

Inductive sensor
BI2-EG08K-RP6X-0.2-RS 4T
■
M8 × 1 threaded barrel
■
Stainless steel, 1.4427 SO
■
DC 3-wire, 10…30 VDC
■
NC contact, PNP output
■
M12 x 1 male connector
Wiring Diagram
Type designation
Ident-No.
Rated switching distance Sn
Mounting conditions
Repeat accuracy
Hysteresis
Operating voltage
Residual ripple
DC rated operational current
No-load current I
0
Residual current
Isolation test voltage
Short-circuit protection
Voltage drop at I
e
Wire breakage/Reverse polarity protection
Output function
Design
Housing material
Active area material
End cap
Max. tightening torque housing nut
Electrical connection
Cable quality
Cable cross section
Vibration resistance
Shock resistance
Switching state
BI2-EG08K-RP6X-0.2-RS 4T
4669470
2 mm
Flush
ð
2 % of full scale
3…15 %
10…30 VDC
ð
10 % U
ss
ð
150 mA
ð
15 mA
ð
0.1 mA
ð
0.5 kV
yes/ Cyclic
ð
1.8 V
yes/ Complete
3-wire, NC contact, PNP
Threaded barrel,M8 × 1
Stainless steel, 1.4427 SO
Plastic, PA12-GF20
Plastic, PP
5 Nm
Connectors, M12 × 1
4mm, LifYY-11Y, PUR, 0.2
3 x 0.25 mm
55 Hz (1 mm)
30 g (11 ms)
2
LED,Yellow
Edition • 2018-05-22T13:09:14+02:00
1/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
BI2-EG08K-RP6X-0.2-RS 4T

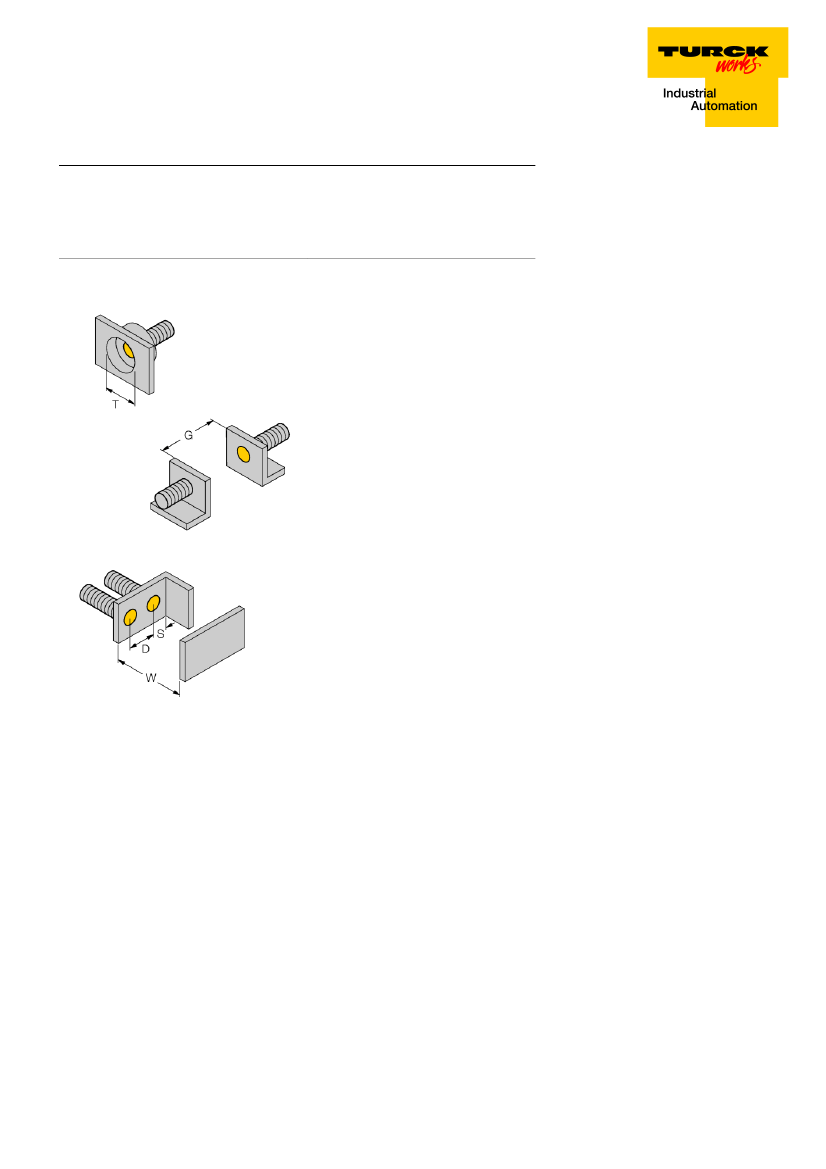

Distance D
Distance W
Distance T
Distance S
Distance G
Diameter active area B
2xB
3 x Sn
3xB
1.5 x B
6 x Sn
Ø 8 mm
Edition • 2018-05-22T13:09:14+02:00
2/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
BI2-EG08K-RP6X-0.2-RS 4T

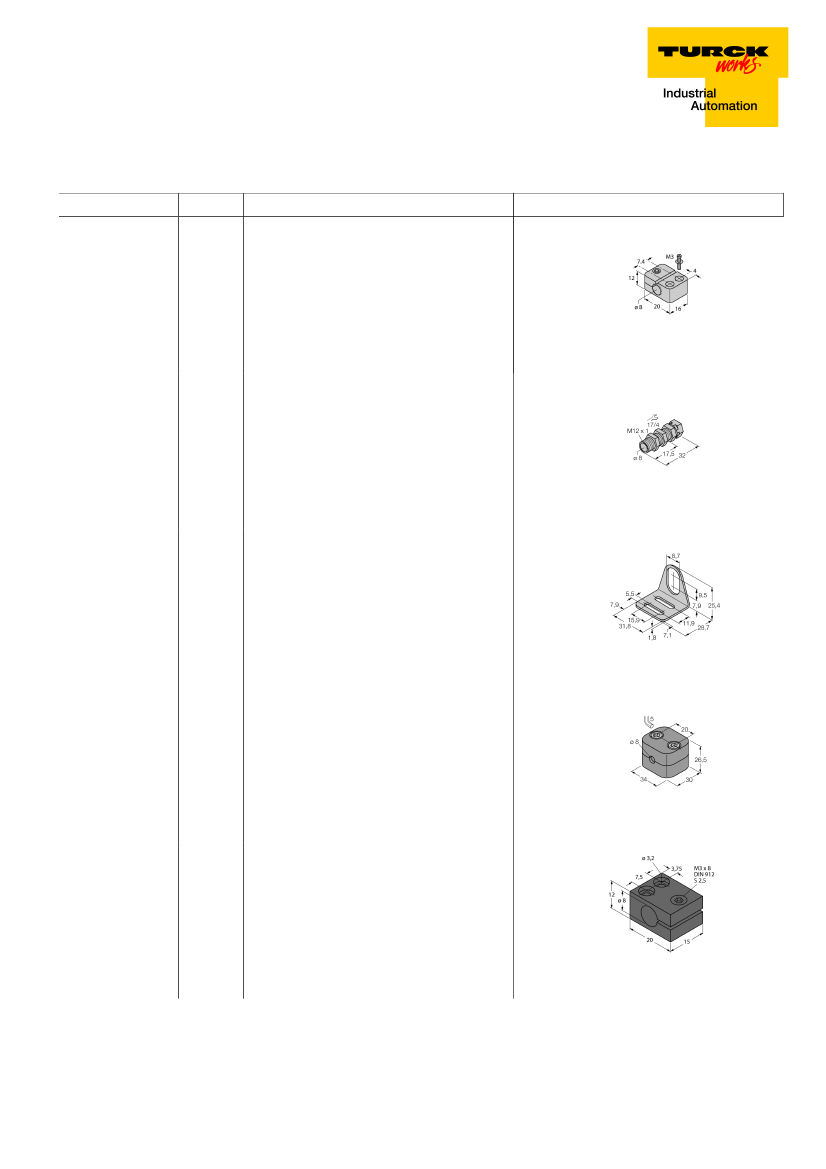

Accessories
Type code
BST-08B
Ident-No.
6947210
Description
Fixing clamp for threaded barrel devices, with dead-stop; ma-
terial: PA6
QM-08
6945100
Quick-mount bracket with dead-stop, chrome-plated brass,
male thread M12 x 1. Note: The switching distance of proxim-
ity switches may be reduced through the use of quick-mount
brackets.
MW-08
6945008
Mounting bracket for threaded barrel devices; material: Stain-
less steel A2 1.4301 (AISI 304)
BSS-08
6901322
Mounting bracket for smooth and threaded barrel devices;
material: Polypropylene
MBS80
69479
Mounting bracket for threaded barrel devices; material
mounting block: Anodized aluminium
