306-011-500-178 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 306-011-500-178

306-011-500-178: DescriptionCard Edge Connector,; CategoryThe connector The connector; File Size107KB，2 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

306-011-500-178 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	306-011-500-178	-	-	View	Buy Now

306-011-500-178 Overview

Card Edge Connector,

306-011-500-178 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Connector type	CARD EDGE CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Mounting Option

178-In-Line Card Guides

Contact Detail

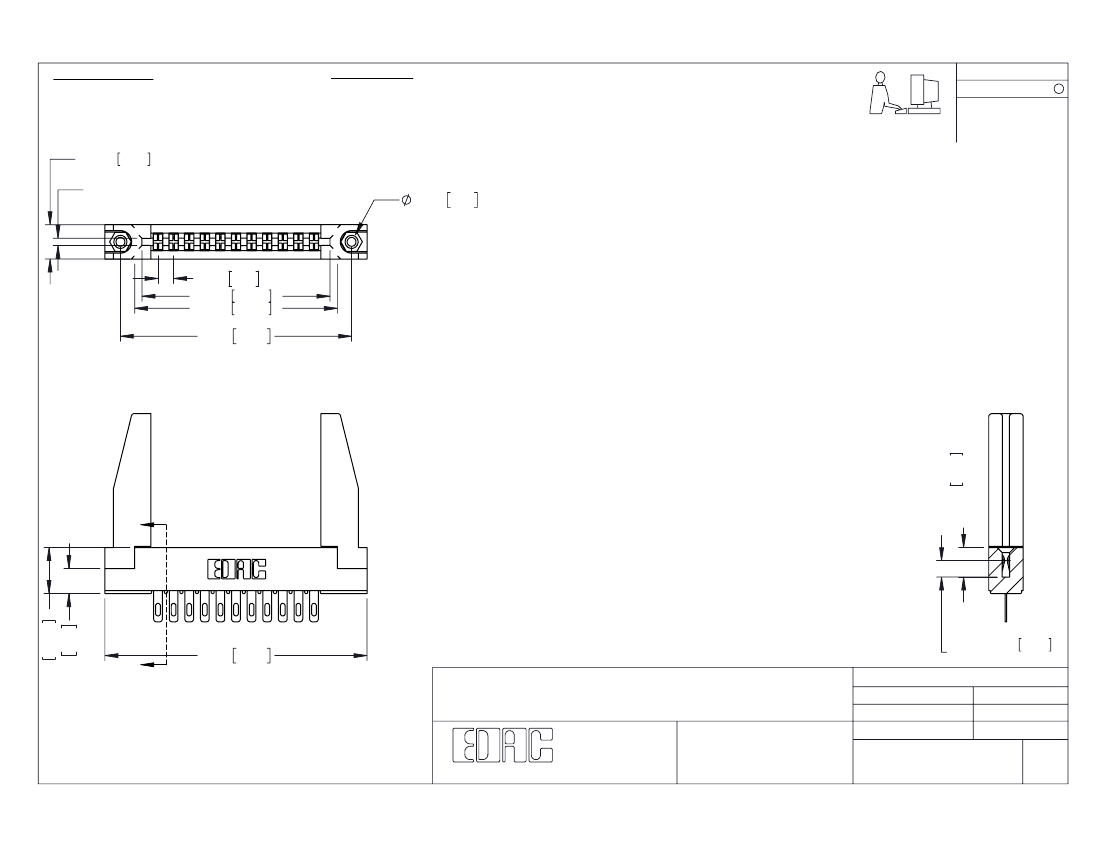

500-Wire Hole .087x.015(2.21x0.38) - Tail LG.=.282(7.16)

.156 [3.96] Contact Spacing with Single Centreline Row

THIS IS A C.A.D. GENERATED DRAWING

DO NOT MAKE MANUAL REVISIONS TO MASTER.

ISSUE NUMBER

ORIGINAL

0.343 8.71

Card Slot Accepts

.054 (1.37) to .070 (1.78)

Thick P.C. Board

0.156 3.96

1.880 47.75

2.026 51.46

2.312 58.72

0.295 7.49

Card Slot

0.460 11.68

0.250 6.35

2.622 66.60

0.165 4.19

Point of Contact

See Accompanying Pages for:

•

Mounting Options

•

Features and Specifications

306 / 316 / 356 Card Edge Connector

Part Number: 306-011-500-178

EDAC INC

TORONTO, ONTARIO

CANADA

YOUR CONNECTION TO QUALITY & SERVICE

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF EDAC INC.,AND

SHALL NOT BE REPRODUCED,OR COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

ACAD REFERENCE NO.

DRAWN:

CHECKED:

SCALE:

NTS

J.LEE

306 ENG MASTER

DATE:

SEPT. 14/09

DATE:

SHEET

ISSUE

DRAWING NUMBER

306 Assembly

SECTION A-A
