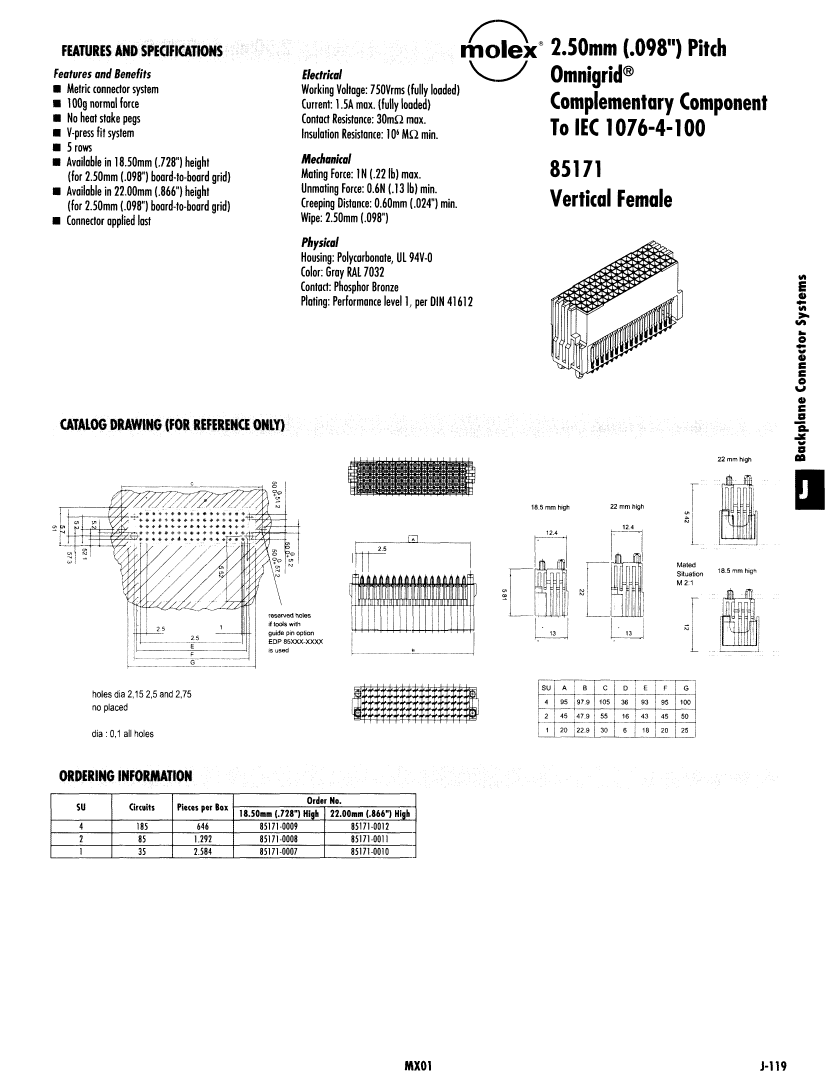

Preview

85171-0008: DescriptionBoard Connector, 85 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

85171-0008 Overview

Board Connector, 85 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal

85171-0008 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: IEC 1076-4-100
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	85171
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	PRESS FIT
Total number of contacts	85
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

85171-0008 Related Products

	85171-0008	85171-0009	85171-0007	85171-0012	85171-0011	85171-0010
Description	Board Connector, 85 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal	Board Connector, 185 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal	Board Connector, 35 Contact(s), 5 Row(s), Female, Straight, Press Fit Terminal	Board Connector, 185 Contact(s), 5 Row(s), Female, Straight, 0.098 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Plug	Board Connector, 85 Contact(s), 5 Row(s), Female, Straight, 0.098 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Plug	Board Connector, 35 Contact(s), 5 Row(s), Female, Straight, 0.098 inch Pitch, Press Fit Terminal, Guide Slot, Gray Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: IEC 1076-4-100	STANDARD: IEC 1076-4-100	STANDARD: IEC 1076-4-100	STANDARD: IEC 1076-4-100	STANDARD: IEC 1076-4-100	STANDARD: IEC 1076-4-100
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	85171	85171	85171	85171	85171	85171
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	85	185	35	185	85	35
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
