SF20R2552CTLQ: DescriptionFixed Resistor, Thin Film, 0.75W, 25500ohm, 200V, 0.25% +/-Tol, 25ppm/Cel, Surface Mount, 2010, CHIP; CategoryPassive components The resistor; File Size705KB，10 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

SF20R2552CTLQ Overview

Fixed Resistor, Thin Film, 0.75W, 25500ohm, 200V, 0.25% +/-Tol, 25ppm/Cel, Surface Mount, 2010, CHIP

SF20R2552CTLQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145012794726
package instruction	CHIP
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	7.2
Other features	ANTI-SULFUR, HIGH PRECISION, LASER TRIMMABLE
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	5 mm
Package form	SMT
Package width	2.5 mm
method of packing	TR, PLASTIC, 7 INCH
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	25500 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
Tolerance	0.25%
Operating Voltage	200 V

SF20R2552CTLQ Preview

Approval Sheet

SF25R_Q,SF20R_Q,SF10R_Q

SF12R_Q,SF08R_Q, SF06R_Q

SF04R_Q.

1%, 0.5%, 0.25%, 0.1%, 0.05%

TC25

High Precision Power Thin Film chip

resistors

(RoHS compliant

、Halogen

Free)

Size 2512, 2010, 1210, 1206, 0805, 0603,

0402,

AEC Q200 Compliant

*Contents in this sheet are subject to change without prior notice.

Page 1 of 10

ASC_SFxxR_Q_V01

SEP - 2017

Approval Sheet

FEATURE

SMD metal film resistor

High reliability and stability of 0.5% and below per customer request

High performance of TCR: 25 ppm/

C

and below per customer request

Low current noise

RoHS compliant and lead free

AEC-Q200 qualified

Sulfuration resistant against ASTM B-809-95*

APPLICATION



Automotive

Medical equipment

Measuring instrument

Communication device

Computer

Printer

DESCRIPTION

The resistors are constructed in a high grade ceramic body (aluminum oxide). Internal metal electrodes are

added at each end and connected by a resistive layer that is applied to the top surface of the substrate. The

composition of the resistive layer is adjusted to give the approximate resistance required and the value is

trimmed to nominated value within tolerance which controlled by laser trimming of this resistive layer.

The resistive layer is covered with a protective coat. Finally, the two external end terminations are added. For

environmental soldering issue, the outer layer of these end terminations is a Lead-free solder .

Fig 1. Construction of Chip-R SFxxR_Q

Page 2 of 10

ASC_SFxxR_Q_V01

SEP - 2017

Approval Sheet

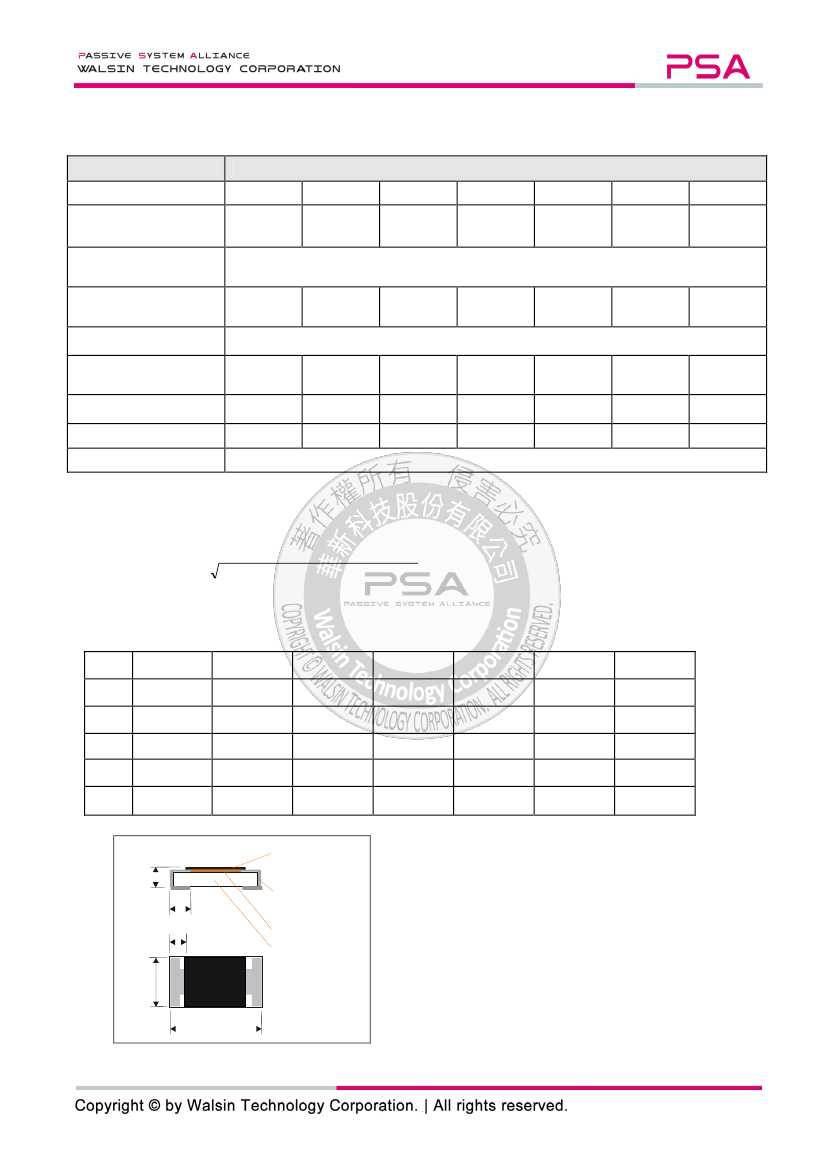

QUICK REFERENCE DATA

Item

Series No.

Size Code

Resistance Tolerance

Resistance Range

TCR

Max. Dissipation at

amb

=70C

Max. Operation Voltage

Max. Overload Voltage

Operation Temperature

Note :

This is the maximum voltage that may be continuously supplied to the resistor element, see “IEC publication

60115-8”

Max. Operation Voltage : So called RCWV (Rated Continuous Working Voltage) is determined by

RCWV

Rated Power



Resistance

Value

or Max. RCWV listed above, whichever is lower.

General Specification

SF25R

2512

(6432)

SF20R

2010

(5025)

SF10R

1210

(3225)

SF12R

1206

(3216)

SF08R

0805

(2012)

SF06R

0603

(1608)

SF04R

0402

(1005)

1.0%, 0.5%, 0.25%, 0.1%, 0.05%

10 ~

1.5M

10 ~

1.5M

10 ~

1M

4.7 ~

1M

25

ppm/C

200V

400V

3/4W

200V

400V

2/5W

200V

400V

1/4W

200V

400V

- 55~ +155’C

1/8W

150V

300V

1/10W

75V

150V

1/10W

50V

100V

4.7 ~

1M

4.7 ~

680K

10 ~

100K

DIMENSIONS:(unit:mm)

Type

SF25R_Q

6.35



0.10

3.20



0.15

0.60



0.20

0.90



0.25

0.55



0.10

SF20R_Q

5.00



0.10

2.50



0.15

0.60



0.20

0.60



0.25

0.55



0.10

SF10R_Q

3.10



0.10

2.60



0.15

0.50



0.20

0.50



0.20

0.55



0.10

SF12R_Q

3.05



0.15

1.55



0.15

0.40



0.20

0.40



0.20

0.55



0.15

SF08R_Q

2.00



0.10

1.25



0.10

0.25



0.20

0.40



0.20

0.50



0.15

SF06R_Q

1.55



0.10

0.80



0.10

0.25



0.15

0.30



0.15

0.45



0.15

SF04R_Q

1.00



0.10

0.50



0.05

0.15



0.10

0.25



0.10

0.30



0.05

Protective coat

End termination

Resistive layer

Ceramic Substrate

W T

1001

Page 3 of 10

ASC_SFxxR_Q_V01

SEP - 2017

Approval Sheet

MARKING



3-digits marking for 0603 size

SFxxR has same marking rule as WRxx ±1%.

Nominal resistance

1.E-24 series

2.E-96 series

0603 WR06X

5%.

The 1st two digit codes are referring to the CODE on the table, the 3rd code is the index of resistance

value :

Y=10

-2

，X=10

-1

，A=10

，B=10

，C=10

，D=10

，E=10

，F=10

EX :

3. Remark

CODE

R_value

CODE

R_value

Description

17.8Ω=25X，178Ω=25A，1K78 =25B

17K8=25C， 178K=25D， 1M78=25E

There is no marking for the items are not under E-24 and E-96 series

CODE

R_Value CODE

R_value

CODE

R_value

CODE

R_value

CODE

R_value

CODE

R_value

100

102

105

107

110

113

115

118

121

124

127

130

133

137

140

143

147

150

154

158

162

165

169

174

178

182

187

191

196

200

205

210

215

221

226

232

237

243

249

255

261

267

274

280

287

294

301

309

316

324

332

340

348

357

365

374

383

392

402

412

422

432

442

453

464

475

487

499

511

523

536

549

562

576

590

604

619

634

649

665

681

698

715

732

750

768

787

806

825

845

866

887

909

931

953

976



4-digits marking for 2512, 2010, 1210, 1206, 0805 size

For E24+E96, each resistor is marked with a four digits code on the protective coating to designate the

nominal resistance value. For values below 976 the R is used as a digit. For values of 100 or greater, the

first 3 digits are significant, the fourth digit indicates the number of multiple to follow.

Example

RESISTANCE

4-digits marking

100

1000

6800

6801

47000

4702



No marking code for 0402 and 0201 size

FUNCTIONAL DESCRIPTION

Product characterization

Standard values of nominal resistance are taken from the E192 & E24 series for resistors with a tolerance of

1.0%, 0.5%, 0.25%, 0.1%, 0.05%.

The values of the E24/E192 series are in accordance with “IEC

publication 60063”.

Page 4 of 10

ASC_SFxxR_Q_V01

SEP - 2017

Approval Sheet

Derating

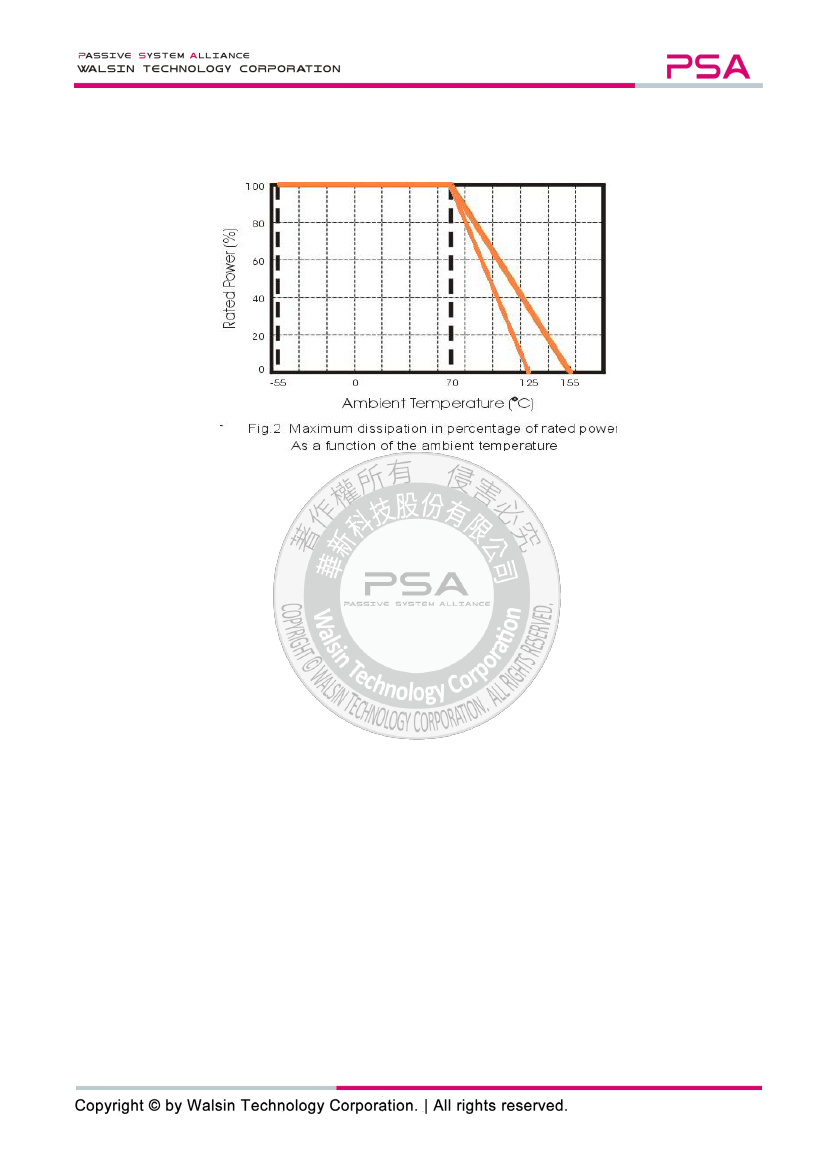

The power that the resistor can dissipate depends on the operating temperature; see Fig.2

MOUNTING

Due to their rectangular shapes and small tolerances, Surface Mountable Resistors are suitable for handling by

automatic placement systems.

Chip placement can be on ceramic substrates and printed-circuit boards (PCBs).

Electrical connection to the circuit is by individual soldering condition.

The end terminations guarantee a reliable contact.

Page 5 of 10

ASC_SFxxR_Q_V01

SEP - 2017
