D3508W

Description
relay telecom dpdt 2A 48v
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size37KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

D3508W Online Shopping

Suppliers Part Number Price MOQ In stock
D3508W - - View Buy Now

D3508W Overview

relay telecom dpdt 2A 48v

D3508W Parametric

Parameter NameAttribute value
Datasheets

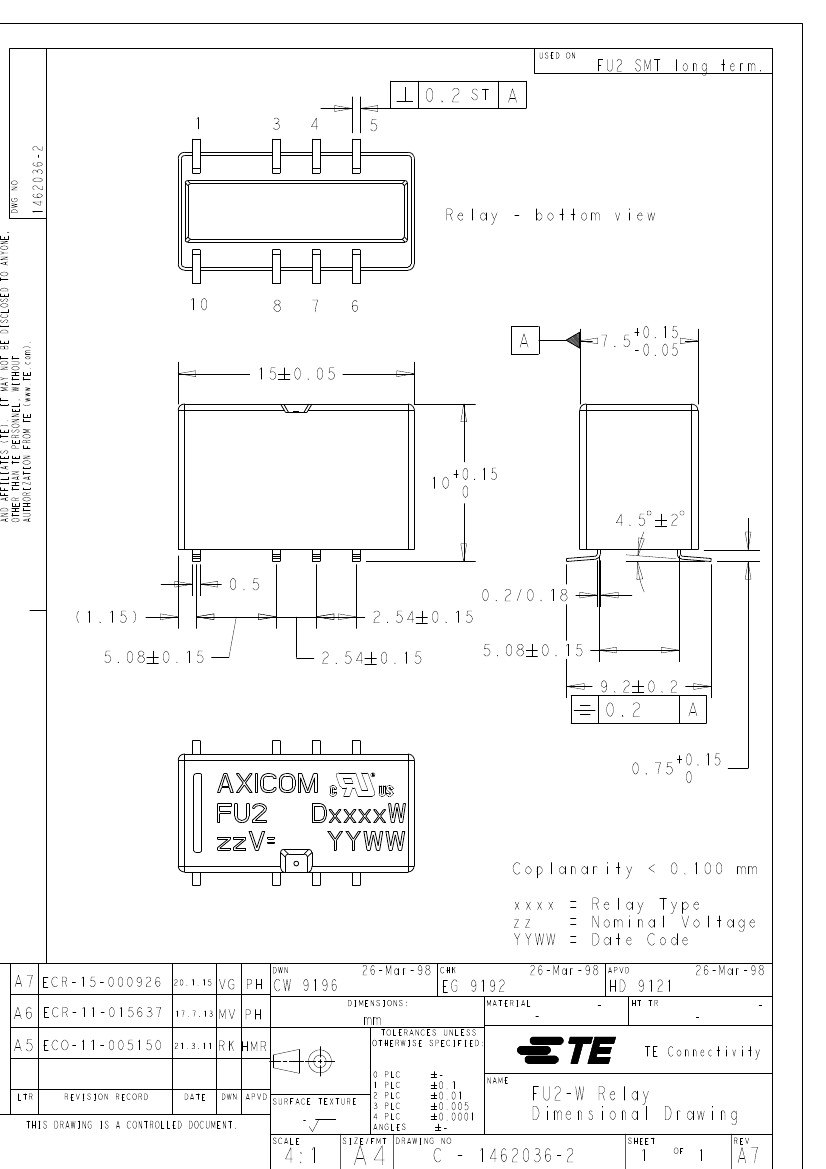

FU2-Relay SMT W Drawing
FT2/FU2 Relay
3D Model
D3501W.pdf
Standard Package2,000
CategoryRelays
FamilySignal Relays, Up to 2 Amps
PackagingBulk
Relay TypeTelecom
Coil TypeNon Latching
Coil Curre6.25mA
Coil Voltage48VDC
Contact FormDPDT (2 Form C)
Contact Rating (Current)2A
Switching Voltage250VAC, 220VDC - Max
Turn On Voltage (Max)36 VDC
Turn Off Voltage (Min)4.8 VDC
Operate Time5ms
Release Time5ms
Features-
Mounting TypeSurface Mou
Termination StyleGull Wing
Contact MaterialPalladium (Pd), Ruthenium (Ru), Gold (Au)
Coil Powe300 mW
Coil Resistance7.68 kOhms
Operating Temperature-55°C ~ 85°C
Other Names1-1462036-6

D3508W Related Products

D3508W D3501W D3504W
Description relay telecom dpdt 2A 48v relay telecom dpdt 2A 3V relay telecom dpdt 2A 6V
Standard Package 2,000 2,000 2,000
Category Relays Relays Relays
Family Signal Relays, Up to 2 Amps Signal Relays, Up to 2 Amps Signal Relays, Up to 2 Amps
Packaging Bulk Bulk Bulk
Relay Type Telecom Telecom Telecom
Coil Type Non Latching Non Latching Non Latching
Coil Curre 6.25mA 100mA 50mA
Coil Voltage 48VDC 3VDC 6VDC
Contact Form DPDT (2 Form C) DPDT (2 Form C) DPDT (2 Form C)
Contact Rating (Current) 2A 2A 2A
Switching Voltage 250VAC, 220VDC - Max 250VAC, 220VDC - Max 250VAC, 220VDC - Max
Turn On Voltage (Max) 36 VDC 2.25 VDC 4.5 VDC
Turn Off Voltage (Min) 4.8 VDC 0.3 VDC 0.6 VDC
Operate Time 5ms 5ms 5ms
Release Time 5ms 5ms 5ms
Mounting Type Surface Mou Surface Mou Surface Mou
Termination Style Gull Wing Gull Wing Gull Wing
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au) Palladium (Pd), Ruthenium (Ru), Gold (Au) Palladium (Pd), Ruthenium (Ru), Gold (Au)
Coil Powe 300 mW 300 mW 300 mW
Coil Resistance 7.68 kOhms 30 Ohms 120 Ohms
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
Other Names 1-1462036-6 1462036-2 1462036-8
