R O D U C T

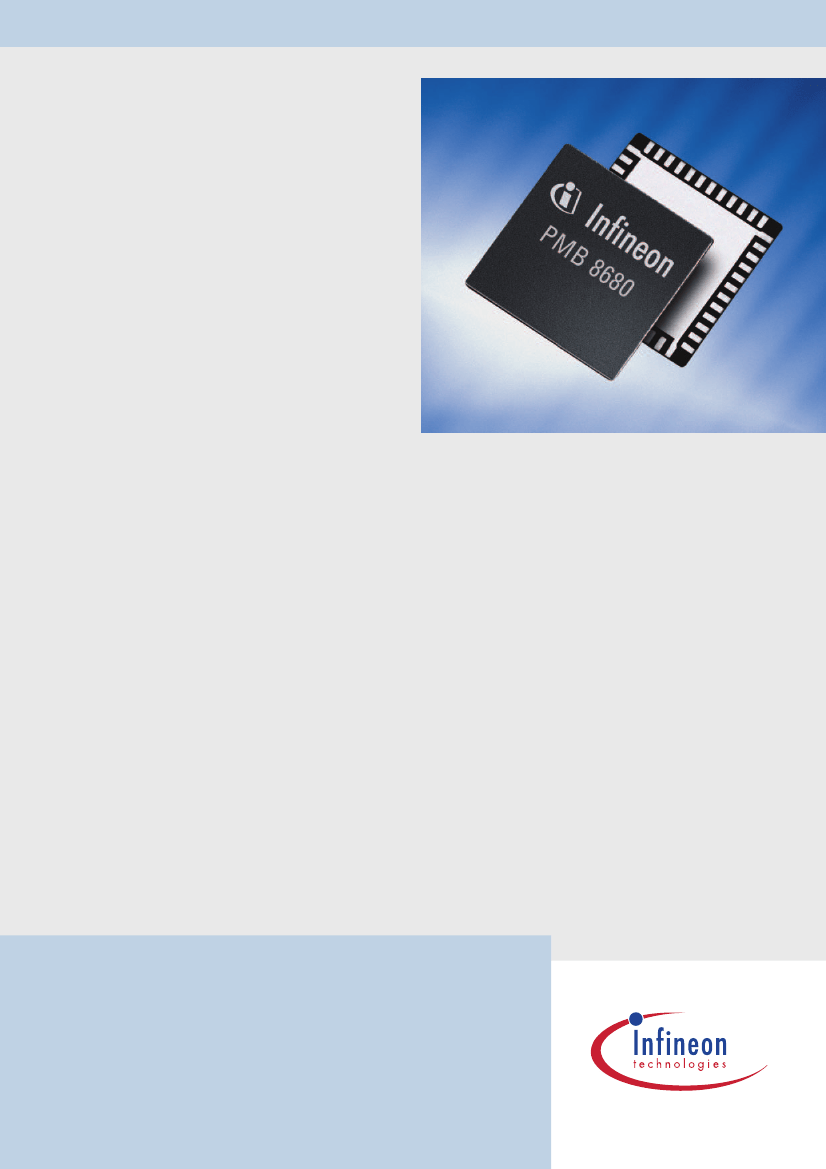

Dual-Band RF Transceiver for

WLAN System Solutions

The PMB 8680 is a low power, high performance

dual-band RF Transceiver for IEEE Wireless LAN

Standards 802.11a, 11b and 11g.

The PMB 8680 is designed to form an Infineon

WLAN chipset in combination with the PMB 8787

Baseband PHY IC, the PMB 8825 dual-band Power

Amplifier and the PMB 8789 MAC IC.

This highly integrated solution together with low

external component requirement (low Bill of

Material) shortens time to market.

R I E F

Features

■

0.25 µm BiCMOS technology

3-wire bus control

Supply voltage 3.0 ... 3.6 V

WirelessLAN

Applications

■

High data-rate wireless LAN

PC card wireless LAN adapters

(Mini) PCI wireless LAN cards

CardBus wireless LAN adapters

Compact flash wireless LAN cards

USB wireless LAN adapters

Wireless LAN modules, access points, bridge

products, and point-to-multipoint systems

Alternative direct supply of regulated supply voltage

2.5 ... 2.7 V

2 integrated voltage regulators (LDO)

Power down modes

Operational temperature -30 ... +85°C

Frequency bands: 2.4 - 2.5 GHz /5.15 - 5.875 GHz

Small size VQFN-48 package (7x7x0.9 mm)

■

P M B

8 6 8 0

Dual-Band RF Transceiver

N e v e r

s t o p

t h i n k i n g .
