400USR47MB20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 400USR47MB20

400USR47MB20: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount; CategoryPassive components capacitor; File Size38KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

400USR47MB20 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount

400USR47MB20 Parametric

Parameter Name	Attribute value
Objectid	1736443872
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.41133 mA
Manufacturer's serial number	USR
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	310 mA
surface mount	NO
Delta tangent	0.25
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

FINAL ACCEPTED ORDER DATE [2003/09]

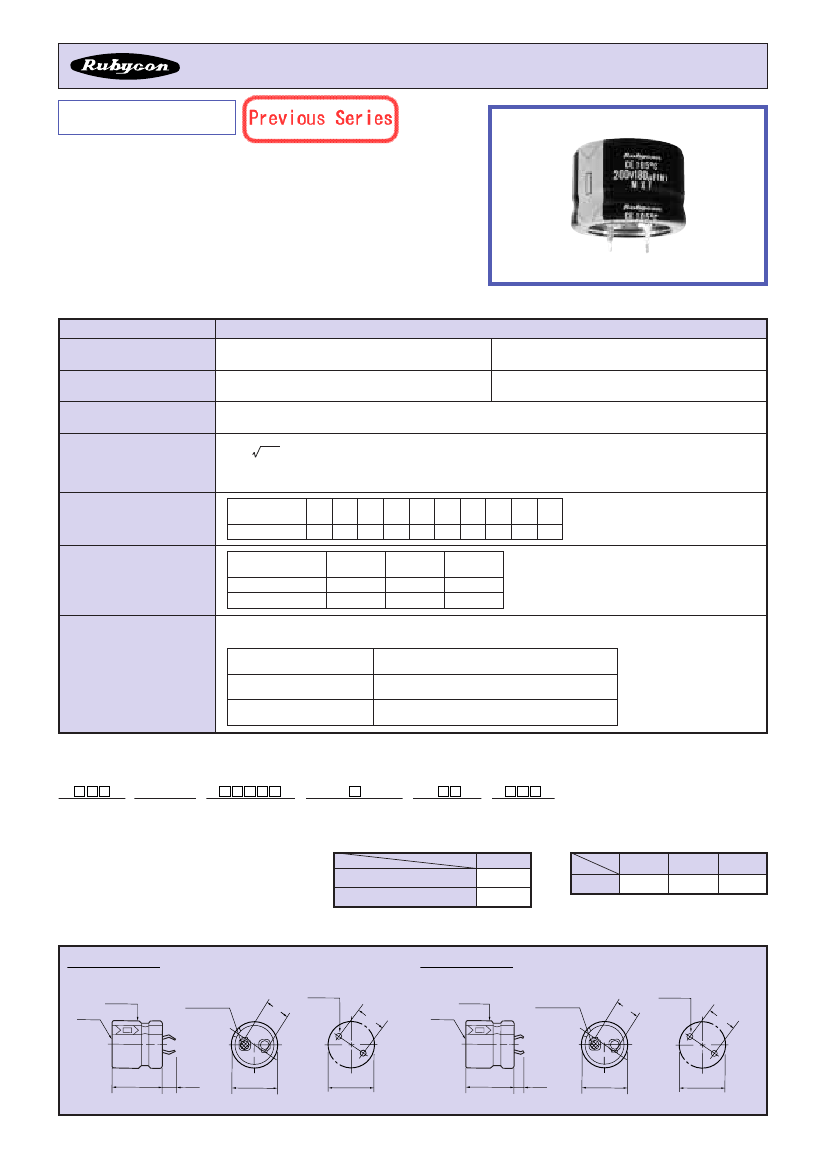

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

MXF

SERIES

105˚C Low profile, Snap-in Terminal Type

♦FEATURES

•Load Life : 105˚C 2000 hours with 20mm height.

♦SPECIFICATIONS

Items

Operating Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-40~+105˚C

10~100V.DC

±20%(20˚C,120Hz)

I=3

CV (After 5 minutes application of rated voltage)

I=Leakage

Current(µA)

V=Rated Voltage(V)

C=Nominal Capacitance(µF)

Rated Voltage

10 16 25 35 50 63 80 100 160~ 315~

(V)

250 400

tanδ

0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.25

Rated Voltage

(V)

Z(-25˚C)/Z(20˚C)

Z(-40˚C)/Z(20˚C)

10~100

160~250

315~400

-25~+105˚C

160~400V.DC

Leakage Current(MAX)

Dissipation

Factor(MAX)

(20˚C, 120Hz)

(120Hz)

Impedance Ratio(MAX)

After applying rated voltage with max. ripple current for 2000hrs at 105˚C, the capacitors shall meet the

following requirements.

Load Life

Capacitance Change

Dissipation Factor

Leakage Current

Within±20% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

♦EXPLANATION

OF PART NUMBER

USR

Rated Voltage

Series

Nominal Capacitance

Capacitance Tolerance

Terminal Code

Size Code

♦Terminal

Code

Standard Terminal

Short Terminal

Blank

♦SIZE

CODE

φD

A20

B20

C20

(mm)

•Short terminal type

♦DIMENSIONS

•Standard terminal type

SLEEVE

VENT

2-φ2

NEGATIVE

0.1

SLEEVE

VENT

2-φ2

NEGATIVE

0.1

L±2

6±1

φD±1

MOUNTING HOLES

L±2

*4±0.5

*For

φ35,

3.5±0.5

φD±1

MOUNTING HOLES

1 Oct 1999
