Surface Mount Oscillator - 5.0 X 3.2 X 1.3 mm
5.0X3.2X1.3 mm
This oscillator series is an ultraminiature ceramic clock oscillator with a size of 5.0 x 3.2 x 1.3mm. Available in
HCMOS logic and meets the stringent testing for RoHS compliance. Frequency tolerance to ±10ppm and
temperature to -40º to +85ºC.
Features
•
•
•
Tri-State Enable/Disable
1.8VDC, 2.5VDC, 3.3VDC and 5.0VDC options available
RoHS Compliant
Standard Specifications
Frequency Range
Supply voltage
Current Consumption
Temperature
Range
Operating
Storage
Frequency Stability
Output load condition
Symmetry (Duty cycle)
Output rise and fall time (tr/tf)
Pin 1
Tri-Sate
Output enable voltage
Output enable voltage
Output disable voltage
Oscillation start up time
1.000 MHz to 160.000 MHz
1.8Vdc, 2.5Vdc, 3.3Vdc, 5.0Vdc
1.8Vdc
25mA max.
2.5-3.3Vdc
40mA max.
5.0Vdc
35mA max.
0° to +70°C. – Standard
-40º to +85ºC. - Available
-55°C. to +125°C.
±10ppm to ±100ppm - Available
HCMOS 15pF
40% to 60% - Standard
45% to 55% - Available
8nS max.
No Connection
70% Vdd min.
30% Vdd max.
5ms max.

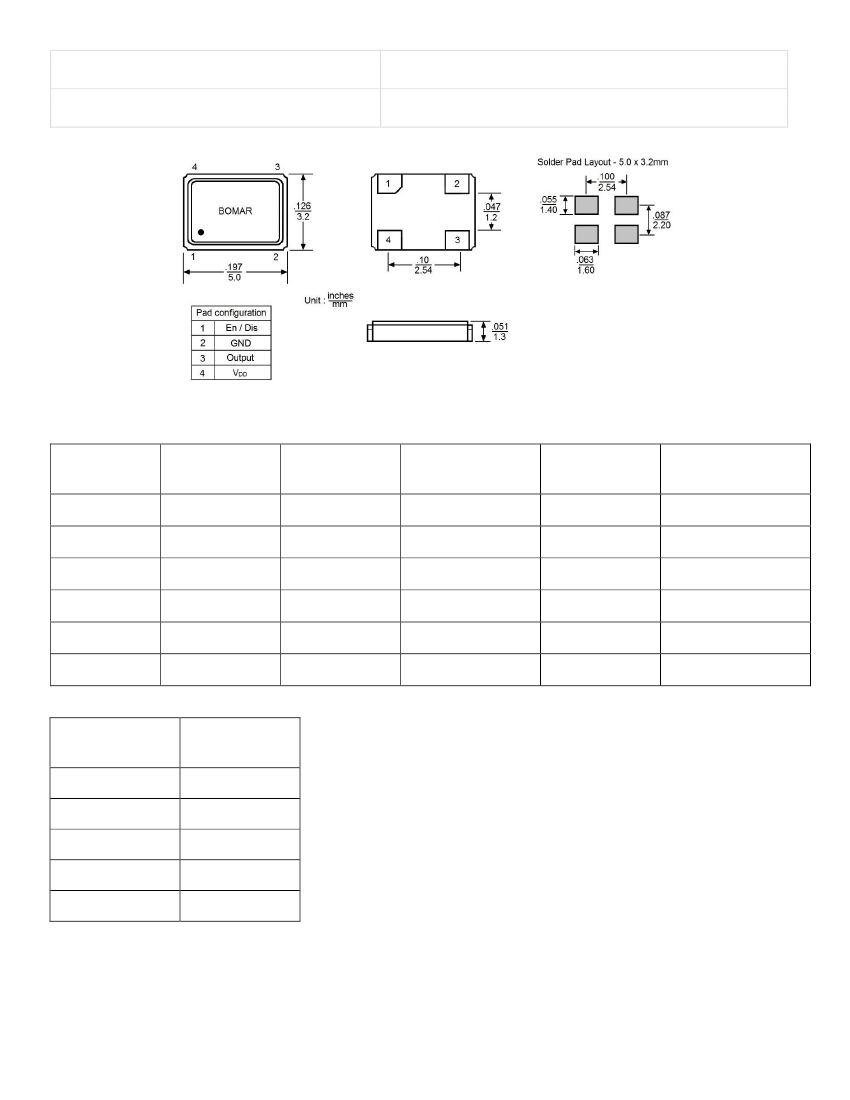

Aging
phase Jitter (12KHZ ~20MHZ)
±3ppm/1
st
year max.
1pS max.
Part Numbering
Output Logic
B12
(TTL)
B13
(HCMOS)
B14
(HCMOS/TTL)
Freq. Stability
(ppm)
Actual stability
Sample: B1425-AADS3T-10.000000
Symmetry
(Duty Cycle)
A = 40% to 60%
B = 45% to 55%
Temperature
Range
A = 0º to +70ºC.
D = -20º to +70ºC.
E = -40º to +85ºC.
Package Type
D = 5.0x3.2mm
Ceramic
Package Style
S = Surface Mount
Options
Frequency
(kHz / MHz)
Actual
Frequency
1 = 1.8VDC
2.5 = 2.5VDC
3 = 3.3VDC
Blank = 5.0VDC
T = Tri-state E/D
PO BOX 10, MIDDLESEX, NEW JERSEY 08846-0010
www.bomarcrystal.com
TEL. 732-356-7787 FAX 732-356-7362
